  • ORTOFON QUINTET BLACK S PHONO CARTRIDGE

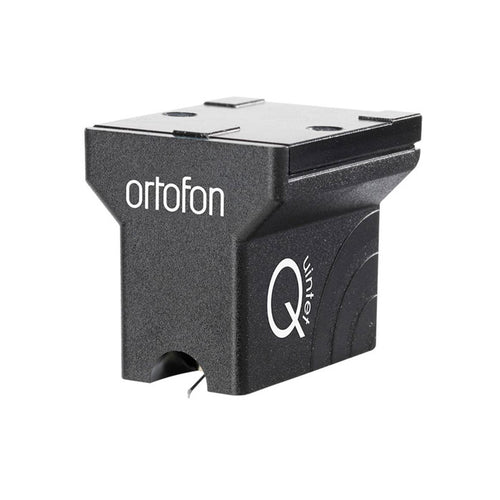

ORTOFON QUINTET BLACK S PHONO CARTRIDGE

$1,484.00

Quantity

Product Details

Product Specifications:

  • Output voltage at 1000 Hz, 5cm/sec: 0.3 mV
  • Channel balance at 1 kHz: < 1.0 dB
  • Channel separation at 1 kHz: > 23 dB
  • Channel separation at 15 kHz: > 15 dB
  • Frequency range at - 3dB: 20 - 25.000 Hz
  • Frequency response: 20-20.000 Hz +/- 1.5 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 µm
  • Compliance(dynamic, lateral): 15 µm/mN
  • Stylus type: Nude Shibata on Saphire cantilever
  • Stylus tip radius: r/R 6/50 µm
  • Tracking force range: 2.1-2.5 g (21-25 mN)
  • Tracking force, recommended: 2.3 g (23 mN)

    •
