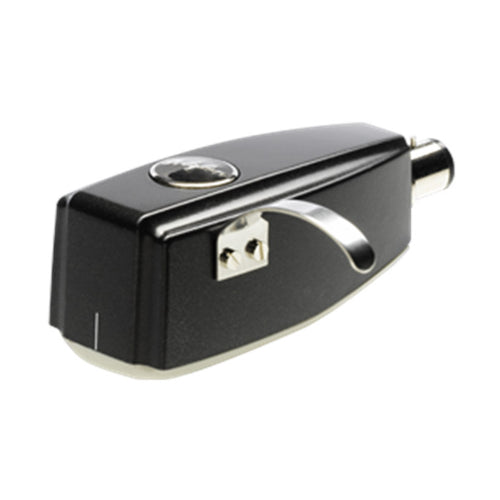

ORTOFON SPU CLASSIC GE MKII

$1,754.00

Quantity

Product Details

The SPU Classic GE MkII is known for its dynamic and powerful sound reproduction

The SPU Classic GE MkII is a Moving Coil cartridge with an elliptical stylus profil. The SPU Classic series embodies the essence of the original Moving Coils and are a perfect solution for the playback of both early and modern and contemporary stereo recordings.
The SPU Classic GE MkII’s elliptical stylus profile provides more detailed sound reproduction and expansive imaging.

The ST-7 transformer is a perfect match for the SPU Classic GE MkII cartridge.



Technical data

Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
Channel balance at 1 kHz  < 1 dB
Channel separation at 1 kHz  > 20 dB
Channel separation at 15 kHz  > 10 dB
Frequency response - 20-20.000 Hz + 3/- 2 dB
Tracking ability at 315Hz at recommended tracking force *) - 60 µm
Compliance, dynamic, lateral - 8 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 3.0-5.0 g (30-50 mN)
Tracking force, recommended - 4.0 g (40 mN)
Tracking angle - 20°
*) Typical value

Internal impedance, DC resistance - 2 ohm
Recommended load impedance  > 10 ohm
Cartridge body material - Ground wood and resin composite
Coilwire material - High Purity Copper (OFC)
Cartridge colour - Black matte
Cartridge weight - 30 g
