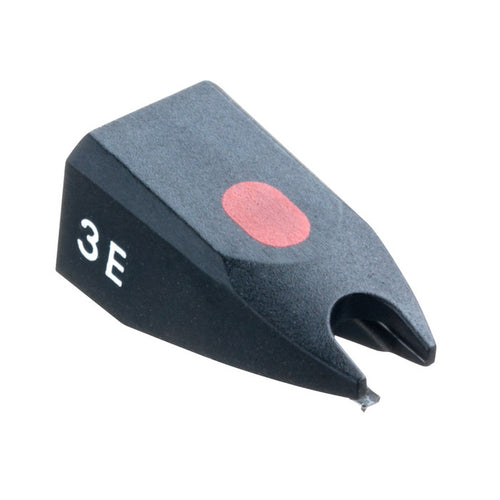

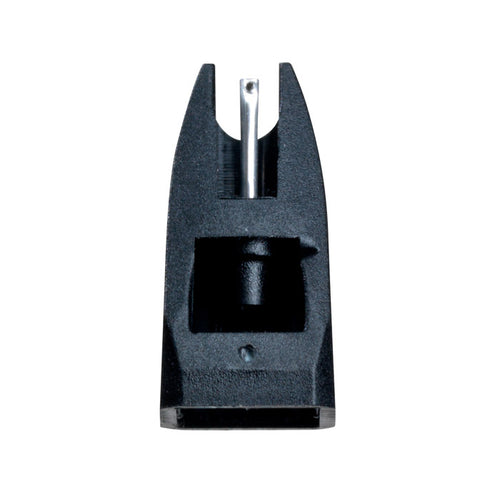

ORTOFON - STYLUS 3E

$115.00

Quantity

Product Details

Technical specifications

Frequency range  -  20-20.000 Hz
Frequency response   -  20-18.000 Hz + 2 / - 3 dB
Tracking ability at 315Hz at recommended tracking force *) - 60 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius  - r/R 8/18 µm
Equivalent stylus tip mass - 0.5 mg
*) Typical value

Tracking force range - 1.5-2.0 g (15-20 mN)
Tracking force, recommended - 1.75 g (17.5 mN)
Tracking angle - 20°
Stylus colour - Black
Recommended for OM 3E, OMP 3E
