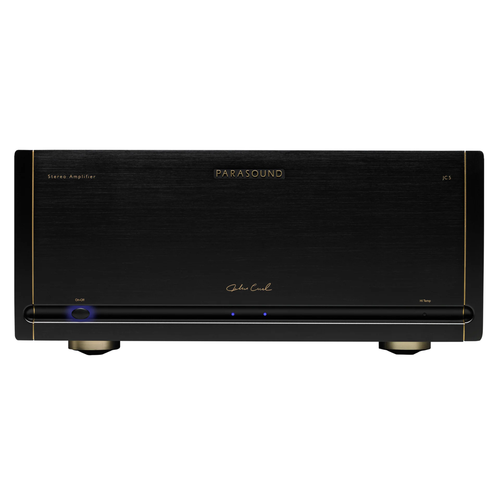

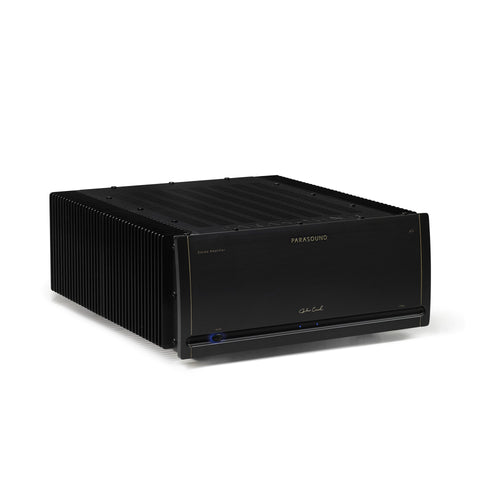

PARASOUND HALO JC 5 AMPLIFIER

$8,500.00

Pay as per month with Paybright

Colour
Black
Silver
Quantity

Product Details

• 400 watts x 2 @ 8 Ω RMS, both channels driven
• 600 watts x 2 @ 4 Ω RMS, both channels driven
• 1200 watts x 1@ 8 Ω, in bridged mode
• Circuitry designed by legendary John Curl
• Ultra-high bias Class A/AB operation
• 12 watts per channel of pure Class A power
• 90 amperes peak current per channel
• Stable with speaker impedance dips to 1.5 Ω
• Balanced inputs with discrete circuits
• CHK Infinium, custom 5-way speaker binding posts
• Neutrik locking XLR input connectors
• Vampire gold-plated RCA input & loop output jacks
• Direct-coupled signal path, no capacitors or inductors
• DC Servo and relay protection circuits
• AC turn-on inrush surge protection with relay bypass
• Dual-mono input stages with ±110 volt DC rails
• JFET input stage, MOSFET driver stage
• 24 beta-matched 15 ampere, 60 MHz bipolar output transistors
• 1.7 kVA shielded toroid power transformer with independent windings for each channel
• Independent power supplies for left & right channel input stages, driver stages, output stages
• 8,880 µF Nichicon Gold Tune filter capacitors for input stages
• 132,000 µF Rubycon filter capacitors for output stages
• Full power is rated all the way down to 5Hz for unrestricted low-end bass
• Harris hyper-fast soft-recovery bridge diode rectifiers
• Automatic turn-on by 12 V trigger or audio sensing
• 4 rack space chassis with rear carry handles
• Rack mount hardware is included
• Available in silver or black

View More
