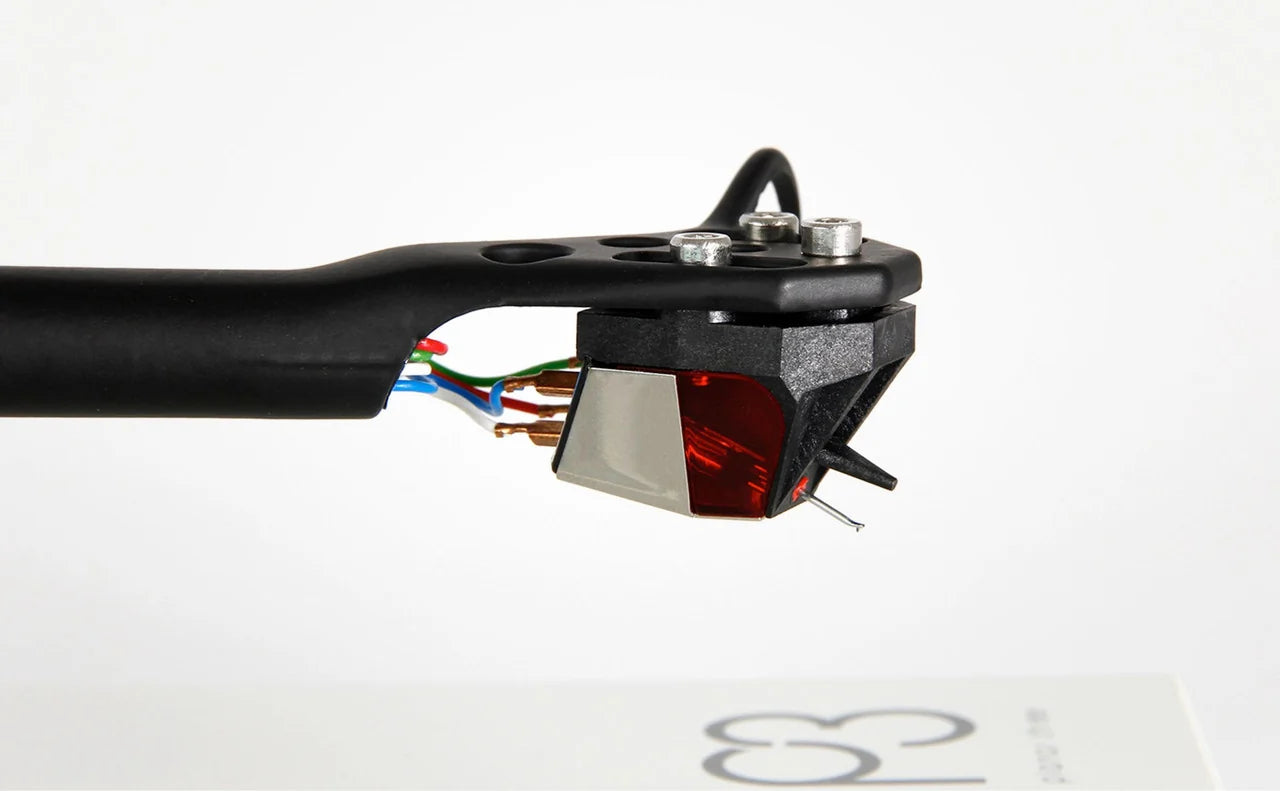

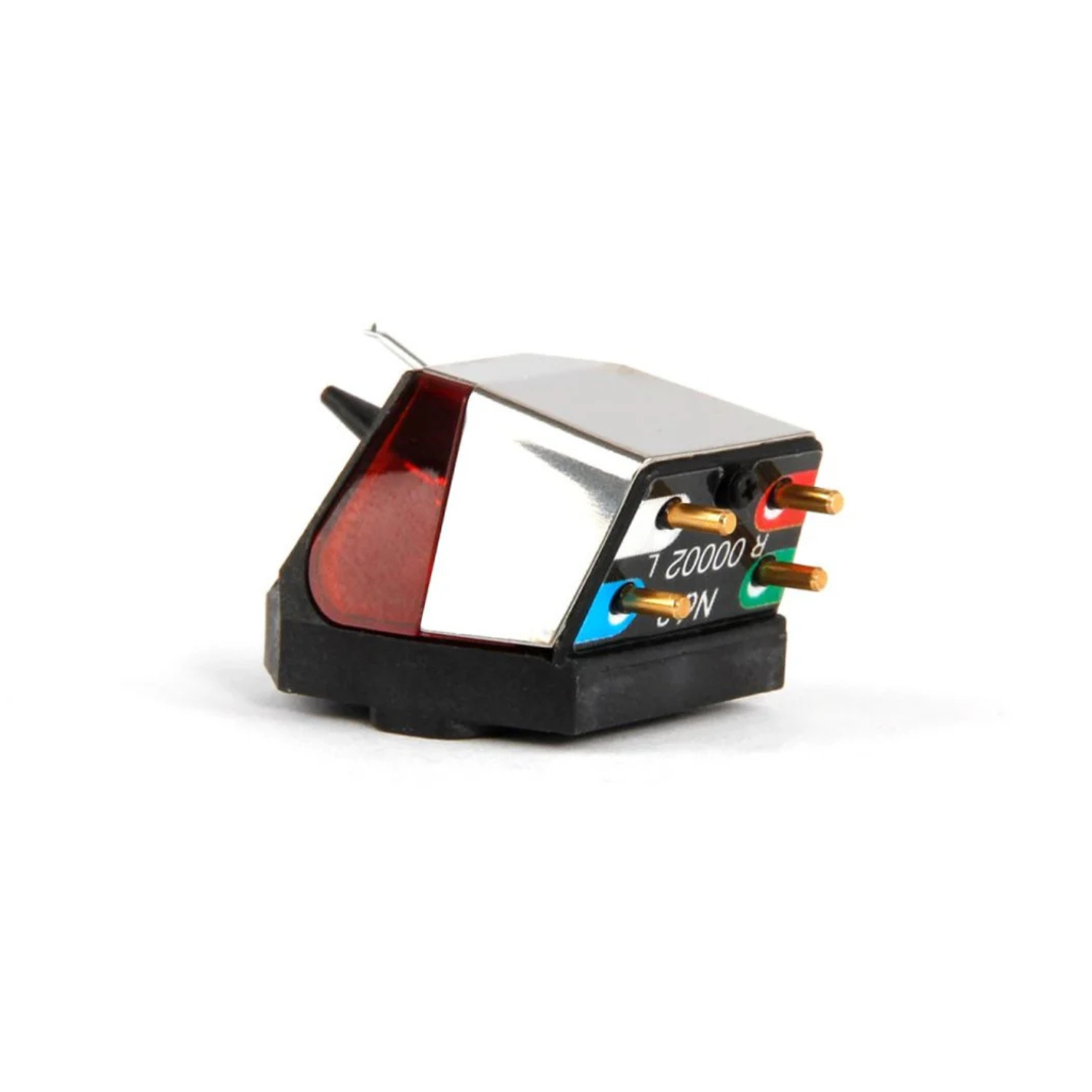

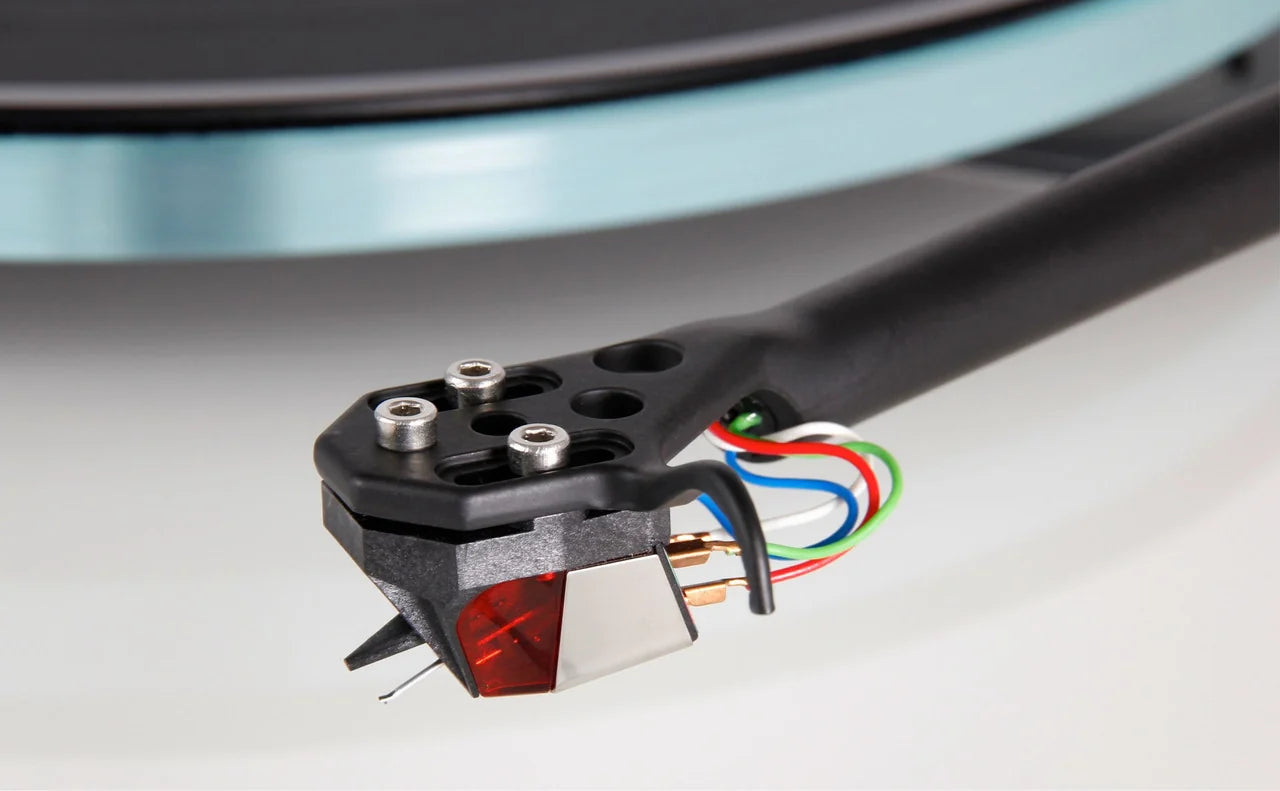

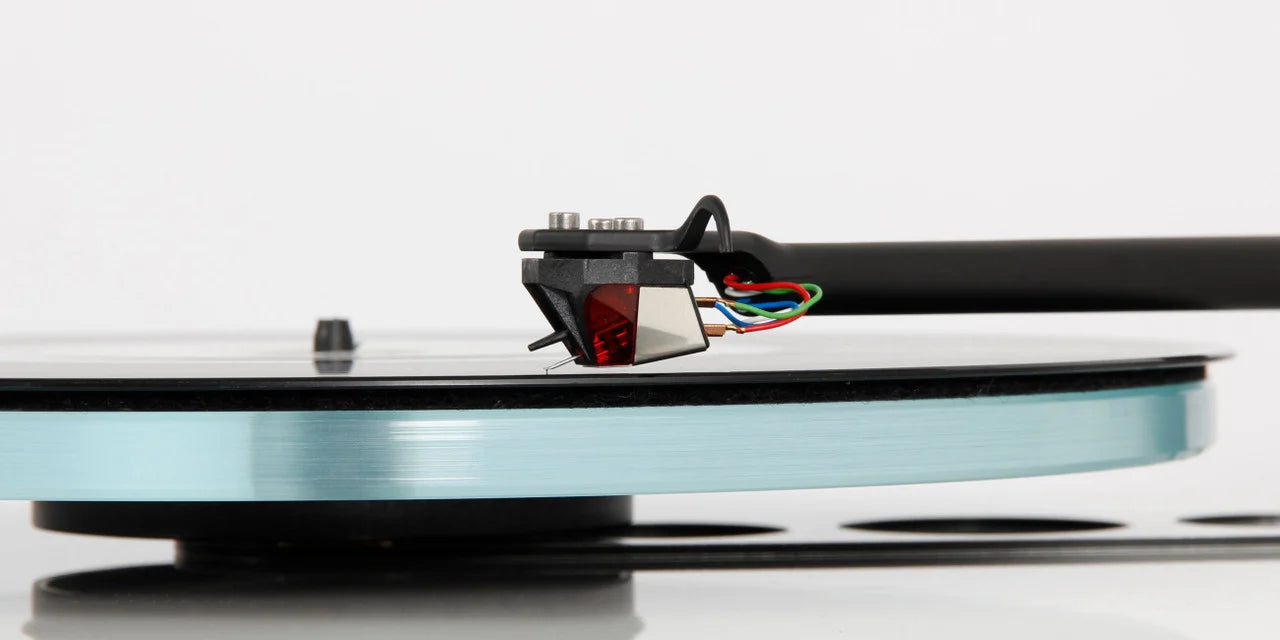

Rega Nd3 Moving Magnet Cartridge

Rega Nd3 Moving Magnet Cartridge

The all-new Rega Nd3 moving magnet cartridge was developed over 10 years to deliver next-level performance from moving magnet technology. The Nd range (patent pending) is, Rega believes, a world first in using ultra-high-powered Neodymium magnets, allowing a totally unique design. Each Nd3 is meticulously hand-made by Rega's skilled technicians in the UK. Available now at Vinyl Sound Canada.

Nd magnet technology

Often used in moving coil designs, including Rega's own, the Nd3 is believed to be the first moving magnet cartridge to use a Neodymium (Nd) N55 magnet, the world's most powerful commercially available magnet. This crucial component makes the unique design possible by delivering extra power over standard bar-magnet designs.

Advanced generator and coils

The Nd3 uses brand-new generator geometry with perfect symmetry for accurate channel balance, and an optimised pole gap for superior linearity and cross-talk, providing a far wider soundstage than previous models. Miniaturised parallel coils are wound in house using 38-micron wire with just 1275 turns, producing a low-inductance, low-impedance generator for vastly improved high-frequency response.

Cantilever, stylus, and body

The aluminium cantilever is fitted with a bonded precision elliptical stylus, a high-quality manmade polycrystalline diamond bonded to a round titanium shank, for exceptional tracking accuracy and detail retrieval. The complete assembly is housed in a zero-tolerance injection-moulded glass-filled polyphenylene sulphide (PPS) body, a lightweight, highly rigid material that reduces stress on the tonearm bearings and aids free movement, inspired by Rega's MC range. The Nd range is supplied in 100% recyclable packaging.

Factory-fitted options and rebuild scheme

The Nd3 is offered as a factory-fitted option on the Rega Planar 2 and Planar 3 turntables at a discounted rate compared to buying it separately. Rega's unique pivot pad design eliminates the mechanical joint between the stylus housing and the main body for improved tracking and stability, and if the cartridge is ever damaged or worn, it can be returned to a Rega dealer for a rebuild fitted with a new cantilever, stylus, and pivot pad, each fully tested as a new cartridge. Every Rega product carries a Lifetime Limited Warranty.

Specifications

Frequently asked questions

What is the Rega Nd3?
The Rega Nd3 is a moving magnet phono cartridge developed over 10 years. It is believed to be the first moving magnet cartridge to use an ultra-high-powered Neodymium N55 magnet, paired with new generator geometry, in-house-wound coils, an aluminium cantilever, and a bonded elliptical diamond stylus for a wide soundstage and detailed, accurate sound.

What makes the Nd3 different from other moving magnet cartridges?
The Nd3 uses a Neodymium N55 magnet, the world's most powerful commercially available magnet, usually found in moving coil designs. This delivers more power than standard bar-magnet designs, and combined with the optimised pole gap and low-inductance coils it brings some of the energy of a moving coil to a moving magnet, with the convenience and value of MM.

Which turntables is the Nd3 compatible with?
The Nd3 is a standard moving magnet cartridge suitable for turntables with a compatible tonearm and an MM phono stage. It is also offered as a factory-fitted option on the Rega Planar 2 and Planar 3 at a discounted rate. Use it with any MM phono input on a receiver, integrated amplifier, or standalone phono stage.

What happens if my Rega cartridge wears out or is damaged?
Rega offers a rebuild scheme. Return the worn or damaged cartridge to your Rega dealer and receive a rebuild fitted with a new cantilever, stylus, and pivot pad, fully tested as a new cartridge. The rebuild is offered at a reduced price when you trade in your old cartridge, comparable to a replacement stylus from other manufacturers.

Where can I buy the Rega Nd3 in Canada?
The Rega Nd3 is available at Vinyl Sound Canada with Canada-wide shipping. Order online or visit our showroom for fitting advice and turntable pairing recommendations.

Order the Rega Nd3 online at Vinyl Sound Canada with Canada-wide shipping, or explore more Rega, phono cartridges, and turntables.
