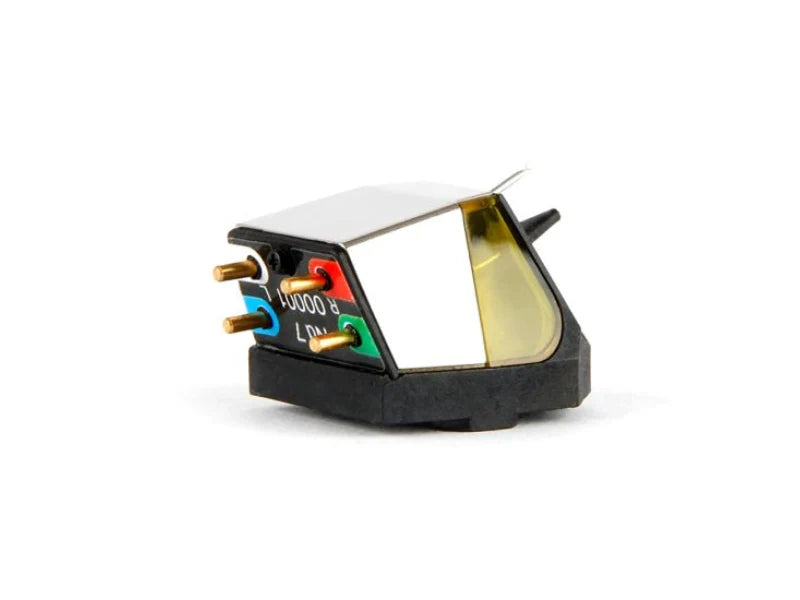

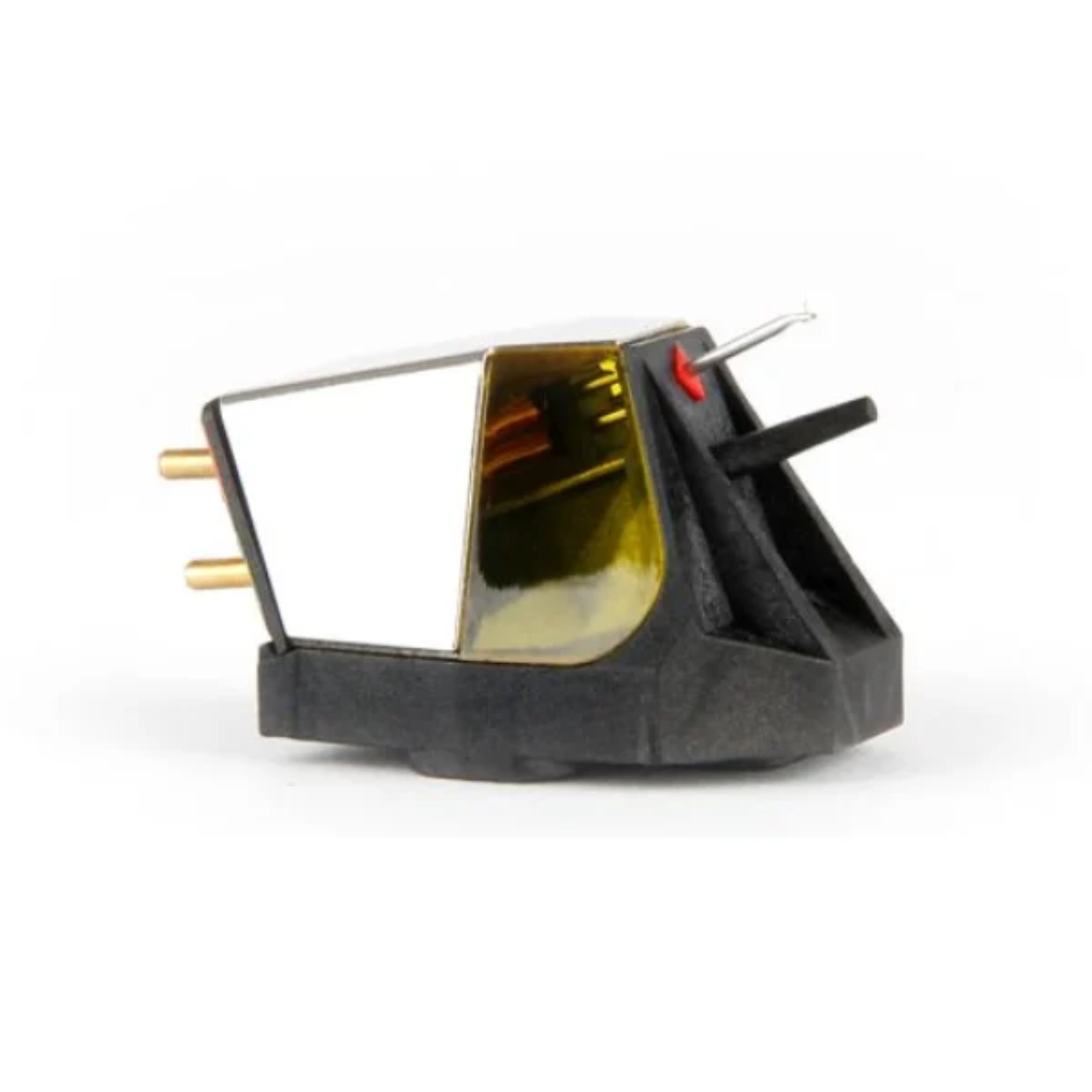

Rega Nd7 Moving Magnet Cartridge

Rega Nd7 Moving Magnet Cartridge

The all-new Rega Nd7 moving magnet cartridge was developed over 10 years to deliver next-level performance from moving magnet technology. The top of Rega's Nd range (patent pending) is a world first in using ultra-high-powered Neodymium magnets in a moving magnet design. Each Nd7 is meticulously hand-made by Rega's skilled technicians in the UK. Available now at Vinyl Sound Canada.

Fine line nude diamond profile

The Nd7 uses Rega's most advanced fine line nude diamond profile for the ultimate in detail retrieval, the same profile used on Rega's high-end MC models, the Apheta 3 and Aphelion 2. This exceptionally small-radii monocrystalline diamond has a minor radius of just 3 microns viewed from the top and 30 microns in the vertical from the front. The tiny contact area allows immediate response to very small changes in the groove, retrieving exceptional levels of detail, fitted to an aluminium cantilever with the Rega 3-point mounting system.

Nd magnet technology

Often used in moving coil designs, including Rega's own, the Nd7 is the first moving magnet cartridge to use a Neodymium (Nd) N55 magnet, the world's most powerful commercially available magnet. This crucial component makes the unique design possible by delivering extra power over standard bar-magnet designs, giving the Nd7 a high output combined with the tracking ability usually associated with much pricier cartridges.

Advanced generator, coils, and body

The Nd7 uses brand-new generator geometry with perfect symmetry for highly accurate channel balance, and an optimised pole gap for superior linearity and cross-talk, providing a far wider soundstage than previous models. Miniaturised parallel coils are wound in house using 38-micron wire with just 1275 turns for a low-inductance, low-impedance generator and vastly improved high-frequency response. The assembly is housed in a zero-tolerance injection-moulded glass-filled PPS body, lightweight and highly rigid to reduce stress on the tonearm bearings, and supplied in 100% recyclable packaging.

Factory-fitted options and rebuild scheme

The Nd7 is offered as a factory-fitted option on the multi-award-winning Rega Planar 6 and Planar 8 turntables, designed specifically with these models in mind to extract the very best from your vinyl, at a discounted rate compared to buying separately. Rega's unique pivot pad design eliminates the mechanical joint between the stylus housing and the main body for improved tracking and stability, and if the cartridge is ever damaged or worn, it can be returned to a Rega dealer for a rebuild fitted with a new cantilever, stylus, and pivot pad, each fully tested as a new cartridge. Every Rega product carries a Lifetime Limited Warranty.

Specifications

Frequently asked questions

What is the Rega Nd7?
The Rega Nd7 is the flagship of Rega's Nd moving magnet cartridge range, using a Neodymium N55 magnet and Rega's most advanced fine line nude diamond stylus, the same profile as the high-end Apheta 3 and Aphelion 2 moving coil cartridges. It combines high output with the fine detail and tracking usually associated with much more expensive cartridges.

What is the difference between the Nd7, Nd5, and Nd3?
All three use the Neodymium N55 magnet, the same generator and coil design, aluminium cantilever, and PPS body, differing in stylus profile. The Nd3 has a bonded elliptical diamond, the Nd5 a nude elliptical diamond, and the Nd7 the most advanced fine line nude diamond for the highest detail retrieval. Factory-fit options rise with the model: Nd3 on Planar 2/3, Nd5 on Planar 3/6, and Nd7 on Planar 6/8.

What is a fine line stylus and why does it matter?
A fine line profile has a very small contact radius that follows the groove more like the original cutting stylus, reading finer modulations for greater detail, better high-frequency response, and lower distortion. The Nd7's monocrystalline fine line diamond has a minor radius of just 3 microns, allowing it to respond to very small groove changes.

Which turntables is the Nd7 compatible with?
The Nd7 is a moving magnet cartridge suitable for turntables with a compatible tonearm and an MM phono stage. It is offered factory-fitted on the Rega Planar 6 and Planar 8, and works with any MM phono input on a receiver, integrated amplifier, or standalone phono stage.

What happens if my Rega cartridge wears out?
Rega offers a rebuild scheme. Return the worn or damaged cartridge to your Rega dealer and receive a rebuild fitted with a new cantilever, stylus, and pivot pad, fully tested as a new cartridge, at a reduced price when you trade in the old one, comparable to a replacement stylus from other manufacturers.

Where can I buy the Rega Nd7 in Canada?
The Rega Nd7 is available at Vinyl Sound Canada with Canada-wide shipping. Order online or visit our showroom for fitting advice and turntable pairing recommendations.
