SVS 3000 In-Wall Preconstruction Kit at Vinyl Sound Toronto Canada

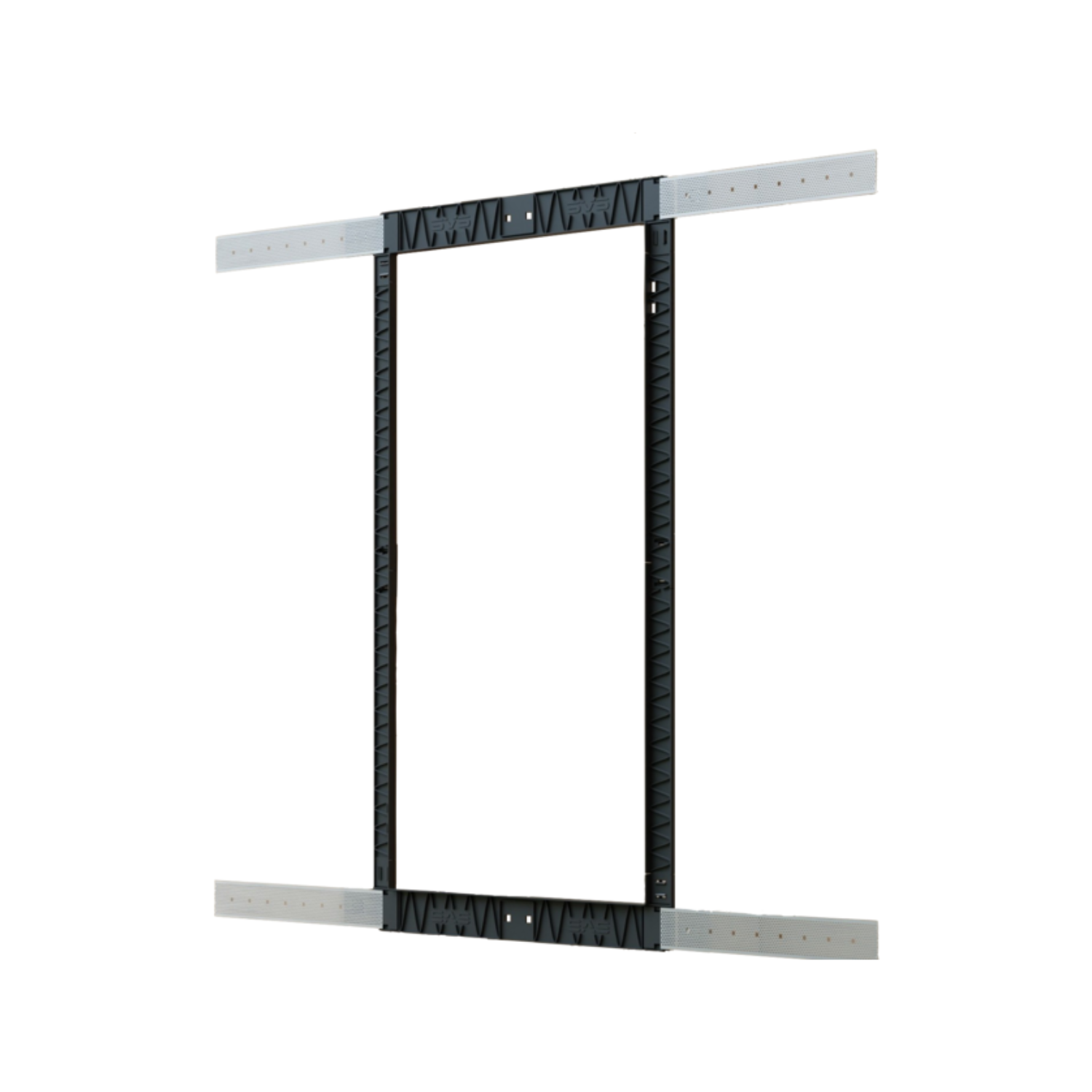

The SVS 3000 In-Wall Preconstruction Kit is a professional custom-installation framing bracket from SVS (Youngstown, Ohio, USA), available at Vinyl Sound in Toronto, Canada. Designed exclusively for use with the SVS 3000 In-Wall Subwoofer system, this kit provides the structural framework required to accurately position and secure the subwoofer enclosure within a wall cavity before drywall installation. The assembly consists of an outer bracket, inner bracket, and adjustable installation wings that span stud spacings from 16" to 32.5" in vertical orientation or 31" to 46" in horizontal orientation, accommodating standard and non-standard framing layouts. One kit supports the 3000 In-Wall Single Subwoofer System; two kits are required for the 3000 In-Wall Dual Subwoofer System. This product is intended for custom installers and trades with the necessary in-wall construction knowledge.

Precision Pre-Construction Framing for the SVS 3000 In-Wall Subwoofer

The SVS 3000 In-Wall Subwoofer occupies a precisely defined cavity measuring 25" H x 12.01" W x 3.73" D within the wall. Achieving correct enclosure placement before drywall goes up requires a dedicated framing template that accounts for both the subwoofer's dimensional footprint and the structural load paths within the wall. The Preconstruction Kit addresses this directly: the outer bracket establishes the rough-opening boundary against the wall studs, while the inner bracket defines the finished aperture into which the subwoofer enclosure will later be seated. The adjustable installation wings extend laterally to fasten to studs at spacings from 16" to 32.5" vertically, covering standard 16" on-centre framing through to wider engineered-lumber bays, and from 31" to 46" in horizontal mounting. This eliminates the need for custom-cut blocking or improvised framing solutions that can result in enclosure misalignment, acoustic air leaks around the cabinet perimeter, or difficulty fitting the amplifier module during final installation.

Vertical and Horizontal Mounting Flexibility

The SVS 3000 In-Wall Subwoofer is certified for both portrait (vertical) and landscape (horizontal) orientations within the wall, and the Preconstruction Kit is dimensioned to accommodate both. In vertical orientation the outer bracket measures 14.1875" W x 28.625" H x 0.5" D with an inner bracket of 12.125" W x 25.125" H x 0.25" D. In horizontal orientation these dimensions transpose to an outer bracket of 28.625" W x 14.1875" H x 0.5" D and an inner bracket of 25.125" W x 12.125" H x 0.25" D. The choice of orientation is typically governed by available wall-stud spacing and room layout: vertical mounting suits standard 16" stud bays, while horizontal mounting is suited to wider framing or specific architectural placements such as beneath a projection screen or above a doorway. Both configurations deliver identical acoustic performance from the subwoofer once installed.

Key Features

• Dedicated SVS 3000 In-Wall Compatibility: Engineered exclusively for the SVS 3000 In-Wall Subwoofer enclosure dimensions, ensuring a precise fit with no field modification required.
• Adjustable Installation Wings: Span stud spacings from 16" to 32.5" (vertical) or 31" to 46" (horizontal), covering standard 16" on-centre framing through to wider structural bays.
• Dual Orientation Support: Mounts vertically or horizontally within the wall cavity, providing flexibility for varied room layouts and architectural constraints.
• Outer and Inner Bracket System: Two-part bracket design establishes the rough opening and the finished aperture separately, simplifying alignment and drywall cutting at final trim-out.
• Single or Dual Subwoofer Scalability: One kit is required for the 3000 In-Wall Single Subwoofer System; two kits are required for the 3000 In-Wall Dual Subwoofer System.
• Pre-Construction Installation Method: Brackets are affixed to studs before drywall installation, marking the subwoofer location accurately and preventing misplacement during the build phase.
• Easy Assembly: Frame and wings assemble without specialist tooling, reducing on-site installation time for custom integrators and AV contractors.

Technical Specifications

What's in the Box

• Outer framing bracket
• Inner framing bracket
• Adjustable installation wings
• Installation hardware

Frequently Asked Questions

What is the SVS 3000 In-Wall Preconstruction Kit?

The SVS 3000 In-Wall Preconstruction Kit is a custom-installation framing system designed to position and secure the SVS 3000 In-Wall Subwoofer enclosure within a wall cavity before drywall installation. It consists of an outer bracket, inner bracket, and adjustable installation wings that accommodate stud spacings from 16" to 32.5" in vertical orientation and 31" to 46" in horizontal orientation. One kit is used for a single subwoofer installation; two kits are required for a dual configuration.

How does the SVS Preconstruction Kit compare to using custom blocking or a generic in-wall speaker bracket?

The SVS 3000 In-Wall Preconstruction Kit is dimensioned precisely to the SVS 3000 In-Wall Subwoofer enclosure, unlike generic in-wall speaker rough-in brackets from brands such as Legrand or OSD Audio, which are designed for standard in-wall speakers and do not account for the 3000 In-Wall's specific 25" x 12.01" footprint or its 3.73" enclosure depth. Using custom lumber blocking requires site-specific measurement, introduces the risk of misalignment, and cannot adjust for varied stud spacings without additional carpentry. The SVS kit's adjustable wings remove that variable, and the two-part bracket system separates rough-opening framing from finish aperture definition, streamlining both the pre-construction and trim-out phases.

Can the SVS 3000 In-Wall Preconstruction Kit be used for both single and dual subwoofer installations?

Yes. One kit is sufficient for the SVS 3000 In-Wall Single Subwoofer System, which uses one enclosure. The SVS 3000 In-Wall Dual Subwoofer System requires two kits, one for each enclosure location. Both kits function identically; the quantity ordered reflects the number of subwoofer positions being framed in the wall.

What is the purpose of a preconstruction kit in custom AV installation?

A preconstruction kit is a framing template installed during the rough-in phase of construction, before drywall is applied to wall studs. It marks and holds the precise location of an in-wall component, ensuring that the wall cavity is correctly sized and positioned when the component is fitted during final trim-out. Without a preconstruction kit, installers must measure and cut solely from the drywall face, increasing the risk of mis-sized openings, off-centre placement, or enclosures that do not seat flush. For a high-excursion subwoofer like the SVS 3000 In-Wall, precise enclosure fit also has acoustic implications: gaps around the cabinet perimeter can cause air leaks that reduce bass output and increase cabinet noise.

Which wall stud spacings does the SVS 3000 In-Wall Preconstruction Kit support?

The SVS 3000 In-Wall Preconstruction Kit supports stud spacings from 16" to 32.5" in vertical mounting orientation, covering standard 16" on-centre residential framing as well as wider 24" on-centre and engineered-lumber bays up to 32.5". In horizontal orientation the adjustable wings span 31" to 46", accommodating wider horizontal framing arrangements. Installations outside these ranges would require supplementary blocking to bring the stud spacing within the kit's adjustment limits.

Is this kit suitable for retrofit installations or new construction only?

The SVS 3000 In-Wall Preconstruction Kit is designed for new construction or major renovation projects where wall cavities are accessible before drywall installation. It is a pre-construction tool, not a retrofit bracket. For retrofit installation in an existing finished wall, the SVS 3000 In-Wall Subwoofer can be installed by cutting the drywall opening to the published enclosure dimensions and securing the unit directly to the exposed studs, without the preconstruction kit. Installers undertaking retrofit work should refer to the SVS 3000 In-Wall Installation Guide for the correct cut-out dimensions and fastening method.

Where can I purchase the SVS 3000 In-Wall Preconstruction Kit in Toronto or Canada?

The SVS 3000 In-Wall Preconstruction Kit is available in Toronto, Canada at Vinyl Sound, an authorised SVS dealer. Vinyl Sound works with custom installers and AV integrators on architectural audio projects across the Toronto area and can advise on complete 3000 In-Wall Subwoofer system configurations including amplifier and preconstruction hardware. Contact Vinyl Sound in advance to discuss project requirements, or visit vinylsound.ca to confirm current availability.
