SVS SoundPath Speaker Level Subwoofer Adapter at Vinyl Sound Toronto Canada

The SVS SoundPath Speaker Level Subwoofer Adapter is a speaker-level to line-level signal converter from SVS (Youngstown, Ohio, USA), available at Vinyl Sound in Toronto, Canada. Designed to solve one of the most common integration challenges in analogue hi-fi, this compact passive adapter steps down a speaker-level voltage signal to a standard RCA line-level output, enabling any integrated amplifier or legacy stereo receiver without a dedicated subwoofer output or pre-out to drive a powered subwoofer. The adapter handles a frequency response of 10 Hz to 80 kHz (+/- 0.01 dB), applies a -30 dBV voltage attenuation that draws zero power from the host amplifier, and supports up to 500W RMS / 1,000W peak power handling, making it broadly compatible with high-current amplification. Premium-grade narrow-tolerance resistors and wide-trace PCBs keep THD+N below 0.03% across the full bandwidth.

Passive Signal Conversion with Zero Amplifier Load

Most speaker-level to line-level adapters used in car audio applications rely on transformer coupling or active circuitry, both of which introduce insertion loss, phase shift, or colouration. The SVS SoundPath takes a different approach suited to stationary hi-fi: a precision resistive attenuator network built around narrow-tolerance components delivers -30 dBV of attenuation with no power draw whatsoever from the loudspeaker amplifier. This means the amplifier sees only its intended loudspeaker load at all times; the adapter operates entirely in parallel without interfering with drive current or damping factor. The result is a transparent tap point that passes the full audio bandwidth from 10 Hz to 80 kHz with immeasurably flat response, handing an uncoloured, correctly scaled signal to the subwoofer's line-level input. THD+N remains below 0.03% at 10V across the full frequency range, a figure that comfortably surpasses many dedicated preamplifier outputs.

Premium Connectivity Hardware and Practical System Integration

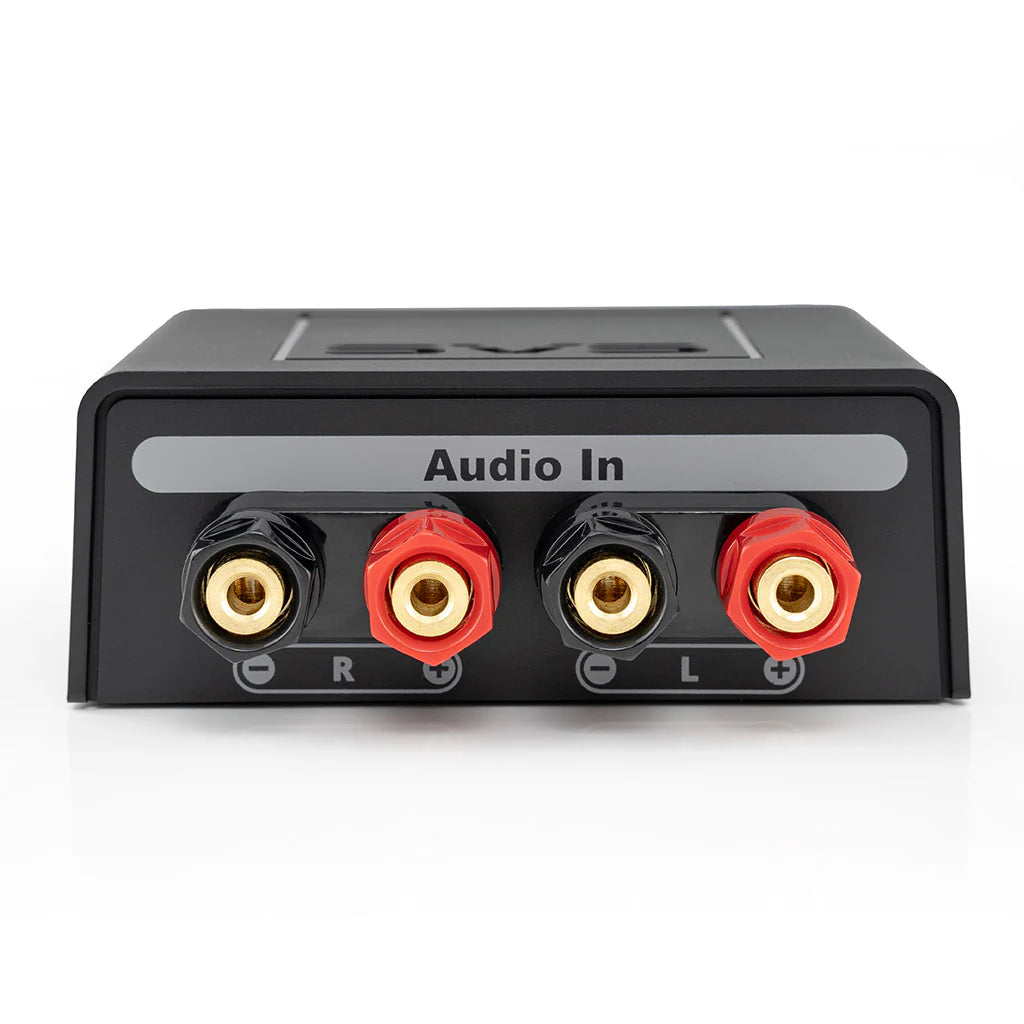

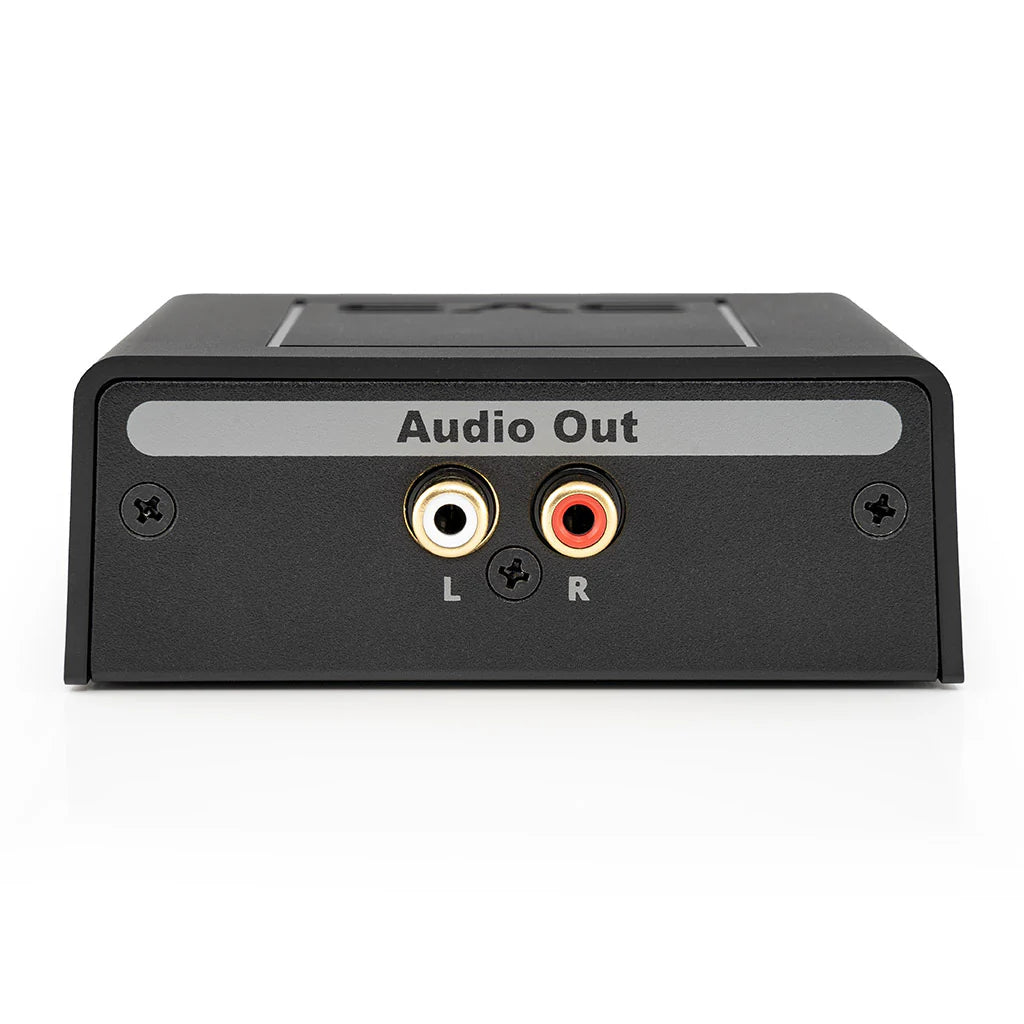

The binding post inputs are gold-plated 5-way terminals accepting bare wire, spade lugs, and banana plugs, matching the connection options found on the loudspeaker terminals of integrated amplifiers and receivers. The RCA output jacks are similarly gold-plated, dimensioned for a firm engagement with SVS SoundPath RCA Subwoofer Cables or any quality RCA interconnect. Internal wide-trace PCB construction reduces resistive losses under high-current conditions and improves thermal stability during extended listening sessions. The insulated chassis measures 37 mm H x 99 mm W x 103 mm D and weighs 280 g, allowing it to sit unobtrusively on a shelf or behind equipment. Because the attenuation is entirely passive, there is no switching noise, no power supply requirement, and no ground-loop risk introduced by the adapter itself. A note applies to differential or balanced amplifier topologies: these require a modified connection method available directly from SVS customer service.

Key Features

• Passive -30 dBV Resistive Attenuation: Steps down speaker-level voltage to standard RCA line level without drawing any current from the amplifier, preserving damping factor and loudspeaker performance.
• Gold-Plated 5-Way Binding Post Inputs: Accept bare wire, spade, and banana connectors for tool-free compatibility with any loudspeaker cable termination.
• Gold-Plated Stereo RCA Outputs: Deliver a clean line-level signal directly to any powered subwoofer's line-level input or LFE input with a secure, low-resistance connection.
• 500W RMS / 1,000W Peak Power Handling: Robust enough for use with high-power integrated amplifiers without risk of component stress or signal degradation.
• 10 Hz to 80 kHz Frequency Response (+/- 0.01 dB): Bandwidth far exceeds the audio range, ensuring the subwoofer's own crossover filter operates with unmodified programme material.
• Ultra-Low Distortion (THD+N < 0.03%): Narrow-tolerance resistors and wide-trace PCBs keep harmonic and noise contributions below audible thresholds.
• Speaker-Level Input Impedance of 4.85 kΩ: High enough to sit invisibly in parallel with typical loudspeaker loads of 4 to 8 ohms.
• Minimalist Insulated Chassis: Compact and unobtrusive, suitable for placement on a shelf, behind a rack, or alongside the subwoofer without adding visual clutter.

Technical Specifications

Connections at a Glance

• Input: Stereo gold-plated 5-way speaker-level binding posts (L+ / L- / R+ / R-)
• Output: Stereo gold-plated RCA line-level jacks (L / R)
• Recommended Cable Pairing: SVS SoundPath RCA Subwoofer Cable (output side) and SVS SoundPath Bi-Wire Speaker Cable (input side)

Frequently Asked Questions

What is the SVS SoundPath Speaker Level Subwoofer Adapter?

The SVS SoundPath Speaker Level Subwoofer Adapter is a passive signal converter that transforms a speaker-level output into a standard RCA line-level signal suitable for any powered subwoofer. It accepts stereo speaker-level input via gold-plated 5-way binding posts, applies a -30 dBV passive attenuation, and outputs via stereo gold-plated RCA jacks with a frequency response of 10 Hz to 80 kHz (+/- 0.01 dB). It handles up to 500W RMS and draws no power from the connected amplifier.

How does the SVS SoundPath adapter compare to the Schiit Audio Sys or a high-low converter?

The SVS SoundPath Speaker Level Subwoofer Adapter is purpose-built for stationary hi-fi use, unlike automotive high-low converters such as the Scosche LOC80 or generic car audio LOCs, which are designed for vehicle environments and often introduce transformer saturation, frequency roll-off, or ground loops when used in home systems. Compared to the Schiit Sys passive preamp, which offers level control but requires a separate signal path, the SoundPath taps directly from the speaker terminals, requiring no modification to the existing signal chain. Its input impedance of 4.85 kΩ is carefully chosen to sit invisibly in parallel with 4 to 8 ohm loudspeaker loads, and its THD+N figure of less than 0.03% at 10V is tighter than most passive automotive converters, which rarely publish distortion specifications at all.

Can the SVS SoundPath adapter be used with a differential or balanced amplifier?

The SVS SoundPath Speaker Level Subwoofer Adapter requires a modified connection method when used with a differential amplifier. Standard connection of the binding posts to a differential amplifier's speaker terminals can create a short across the negative rail. SVS customer service provides specific wiring guidance for this topology, so users with balanced or bridged amplifiers should contact SVS directly before connecting the adapter.

What is speaker-level to line-level conversion and why does it matter?

Speaker-level to line-level conversion is the process of reducing the high-voltage, high-current signal present at an amplifier's loudspeaker terminals down to the low-voltage standard used by preamplifier outputs and line-level inputs on powered subwoofers. Amplifiers typically output between 10V and 40V RMS at full power, while line-level inputs expect signals in the range of 0.3V to 2V RMS. Without attenuation, connecting speaker-level output directly to a subwoofer's RCA input would damage the subwoofer's input stage. The SVS SoundPath applies -30 dBV of passive resistive attenuation to bring the signal safely into the line-level range while preserving the full audio bandwidth and introducing negligible distortion.

Which amplifiers and receivers is the SVS SoundPath adapter compatible with?

The SVS SoundPath Speaker Level Subwoofer Adapter is compatible with any stereo integrated amplifier or receiver that uses a conventional single-ended (non-differential) loudspeaker output. This includes popular integrated amplifiers such as the NAD C 3050, Cambridge Audio AXA35, Rega Aura, Rotel A11, and vintage receivers like the Marantz PM6007 or Pioneer SX series that lack dedicated pre-out or subwoofer output terminals. The adapter's 4.85 kΩ input impedance has no meaningful effect on 4 to 8 ohm loudspeaker loads, and the 500W RMS power handling accommodates even high-power Class AB designs without risk.

Does the SVS SoundPath adapter affect the sound of the main loudspeakers?

The SVS SoundPath Speaker Level Subwoofer Adapter does not affect the performance of the main loudspeakers. Because the adapter operates as a passive parallel load with an input impedance of 4.85 kΩ, it draws negligible current compared to a typical 4 to 8 ohm loudspeaker. The amplifier's damping factor, frequency response, and output power are all unaffected. The signal reaching the main loudspeakers passes through the amplifier's speaker terminals as normal, with the adapter functioning as an invisible tap point that does not alter the primary audio signal path in any measurable way.

Where can I buy the SVS SoundPath Speaker Level Subwoofer Adapter in Toronto or Canada?

The SVS SoundPath Speaker Level Subwoofer Adapter is available in Toronto, Canada at Vinyl Sound, an authorised SVS dealer. Vinyl Sound carries the full SVS SoundPath accessory range, including SoundPath RCA Subwoofer Cables and the SoundPath Bi-Wire Speaker Cable, allowing customers to source a complete, matched connection solution in one place. Visit Vinyl Sound in Toronto or shop online at vinylsound.ca for availability and ordering.
