Yamaha HXC-SC030 Balanced XLR Cable for YH-5000SE at Vinyl Sound Toronto Canada

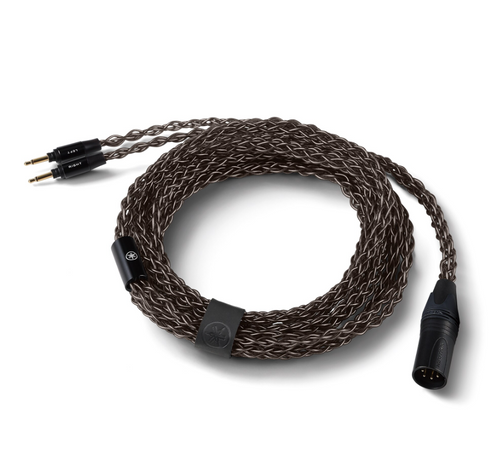

The HXC-SC030 is a balanced headphone cable from Yamaha, available at Vinyl Sound in Toronto, Canada. Designed as a premium upgrade and system accessory for the Yamaha YH-5000SE, YH-4000, and YH-C3000 headphones, this 3-metre XLR balanced cable is constructed with a silver-coated OFC core and terminated with Neutrik XLR connectors, the industry benchmark for professional-grade balanced audio connections. The HXC-SC030 enables fully balanced signal transmission from a balanced headphone amplifier output to Yamaha's premium headphone range, delivering the expanded dynamic range, reduced noise floor, and improved channel separation that balanced operation provides over single-ended alternatives.

Silver-Coated OFC Construction and Balanced Signal Path

The HXC-SC030 uses a silver-coated OFC (Oxygen-Free Copper) cable core, the same conductor material specified for the cables included with the YH-5000SE. Silver coating over OFC combines the high conductivity and low oxidation resistance of silver at the current-carrying surface with the purity and flexibility of OFC as the primary conductor, resulting in a cable that maintains signal integrity across the full audio bandwidth with particular benefit in high-frequency clarity and midrange resolution. Balanced transmission via XLR carries the audio signal as a differential pair, rejecting common-mode noise and interference that accumulates along cable runs, which is especially valuable at the 3-metre length of the HXC-SC030 where noise pickup over cable length becomes a meaningful factor compared to shorter supplied cables.

Neutrik XLR Connector: Professional-Grade Termination

The HXC-SC030 is terminated with Neutrik XLR plugs, the connector standard trusted across professional recording studios, broadcast facilities, and high-end audio installations worldwide. Neutrik connectors are specified for their robust locking mechanism, low-resistance gold-plated contacts, and long-term reliability through thousands of connection cycles. Their use on the HXC-SC030 ensures that the mechanical and electrical integrity of the balanced connection is maintained indefinitely, with none of the contact degradation or intermittent connectivity that lower-grade connectors can develop over time. The XLR termination is compatible with any balanced headphone amplifier or DAC/amp unit equipped with an XLR headphone output.

Key Features

• Silver-Coated OFC Cable Core: Combines the high surface conductivity and oxidation resistance of silver with the purity and flexibility of oxygen-free copper, delivering high-resolution signal transmission with particular benefit in high-frequency clarity and spatial detail.
• Balanced XLR Termination: Fully balanced differential signal transmission rejects common-mode noise and interference accumulated over the 3-metre cable run, lowering the effective noise floor and improving channel separation compared to single-ended operation.
• Neutrik XLR Connectors: Industry-standard professional-grade XLR plugs with locking mechanism, gold-plated contacts, and long-term reliability through extensive connection cycles, compatible with any balanced headphone amplifier with XLR output.
• 3-Metre Cable Length: Provides comfortable reach from a desktop or rack-mounted balanced headphone amplifier to the listening position without excess cable management, suited to both desktop and dedicated listening room setups.
• Compatible with YH-5000SE, YH-4000, and YH-C3000: Works with all three models in Yamaha's premium headphone range, making it the correct balanced cable upgrade for any owner of these headphones who wishes to use a balanced amplifier output.
• High Resolution and Expansive Sound Field: Balanced operation and silver-coated OFC construction together contribute to improved low-level resolution, wider stereo imaging, and a more expansive perceived sound field compared to the single-ended cables supplied with the YH-4000 and YH-C3000.

Technical Specifications

Frequently Asked Questions

What is the Yamaha HXC-SC030?

The Yamaha HXC-SC030 is a 3-metre balanced headphone cable terminated with Neutrik XLR connectors and built with a silver-coated OFC core, designed for use with the Yamaha YH-5000SE, YH-4000, and YH-C3000 headphones. It enables fully balanced signal transmission from a compatible balanced headphone amplifier, delivering reduced noise, improved channel separation, and expanded dynamic range compared to the single-ended cables included with the YH-4000 and YH-C3000. The HXC-SC030 is available at Vinyl Sound in Toronto, Canada.

What is the difference between the HXC-SC030 and the cables included with the YH-5000SE and YH-4000?

The YH-5000SE includes both a 3.5mm unbalanced cable and a 4.4mm 5-pole balanced cable in the box, while the YH-4000 and YH-C3000 include only the 3.5mm unbalanced cable. The HXC-SC030 provides an XLR balanced termination at a longer 3-metre length, suited to listeners using a balanced headphone amplifier with an XLR output rather than a 4.4mm Pentaconn output. For YH-4000 and YH-C3000 owners, the HXC-SC030 is the primary route to balanced operation from an XLR-equipped amplifier. For YH-5000SE owners, it provides an XLR alternative to the included 4.4mm balanced cable for use with amplifiers that offer XLR rather than 4.4mm balanced headphone outputs.

Do I need a balanced headphone amplifier to use the HXC-SC030?

Yes, the HXC-SC030 requires a headphone amplifier or DAC/amp unit with a balanced XLR headphone output to function correctly. Connecting a balanced cable to a single-ended output does not provide the noise rejection and channel separation benefits of balanced operation and may result in incorrect or no audio output depending on the amplifier's output topology. If your current amplifier has only a single-ended 3.5mm or 6.3mm headphone output, the standard cables included with the YH-5000SE, YH-4000, or YH-C3000 are the appropriate choice until a balanced amplifier is added to the system.

Why does cable length matter for balanced versus unbalanced connections?

Balanced transmission becomes increasingly beneficial as cable length increases, because longer cables accumulate more electromagnetic interference from nearby power supplies, motors, and other electronic equipment. In a single-ended cable, this noise is added directly to the audio signal and reaches the amplifier input unchanged. In a balanced cable, the audio signal is carried as a differential pair and any noise that couples into the cable affects both conductors equally, allowing the amplifier's balanced input to reject it through common-mode rejection. At the HXC-SC030's 3-metre length, this noise rejection advantage is meaningful and contributes directly to the lower noise floor and cleaner spatial presentation that balanced operation provides.

Is the Neutrik XLR connector on the HXC-SC030 a locking connector?

Yes, Neutrik XLR connectors incorporate a locking tab mechanism that prevents accidental disconnection during use, which is one of the primary reasons they are specified as the professional standard across recording studios and broadcast facilities worldwide. The locking engagement ensures consistent, low-resistance contact between the connector's gold-plated pins and the amplifier's XLR socket, maintaining signal integrity over thousands of connection and disconnection cycles without the contact wear and intermittent connectivity that non-locking connectors can develop over time.

Where can I buy the Yamaha HXC-SC030 in Toronto or Canada?

The Yamaha HXC-SC030 is available at Vinyl Sound, an authorized Yamaha dealer in Toronto, Canada. Vinyl Sound carries Yamaha's complete premium headphone accessory range alongside the YH-5000SE, YH-4000, and YH-C3000 headphones, and can advise on compatible balanced amplifier pairings for any of these models. Purchasing from an authorized Canadian dealer ensures full Yamaha manufacturer warranty coverage.

Can the HXC-SC030 be used with non-Yamaha headphones?

The HXC-SC030 is designed to connect to the specific headphone socket format used on the YH-5000SE, YH-4000, and YH-C3000. Its compatibility with other headphone brands depends entirely on whether those headphones use the same socket type and pin configuration at the headphone end of the cable. Yamaha specifies the HXC-SC030 for use with its own premium headphone range, and compatibility with third-party headphones is not guaranteed or supported by Yamaha.
