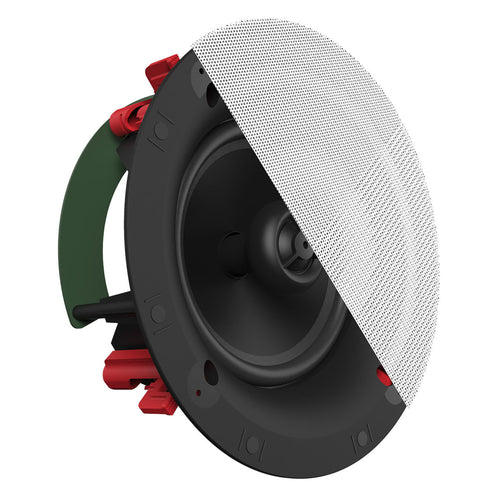

The DS-160C is a 6.5-inch two-way in-ceiling speaker from Klipsch (Indianapolis, Indiana, USA), available at Vinyl Sound in Toronto, Canada. The entry point of the Klipsch Designer Series, the DS-160C delivers the brand's signature Tractrix® horn-loaded sound in a fixed-tweeter format built for straightforward whole-house audio, distributed multi-room, and home theater installations. It achieves 91 dB sensitivity, a frequency range of 77 Hz to 20 kHz, and a 100-degree coverage angle, all within a bezel-free, tool-free installation package that reduces install time by up to 75 percent compared to conventional dog-leg mounting systems.

Horn-Loaded Performance with Tractrix® Technology

Like every speaker in the Klipsch Designer Series, the DS-160C is built around a Tractrix® horn. The 1-inch Silk Dome tweeter is mated directly to this proprietary round horn, which uses a mathematically optimized flare geometry to reduce the turbulence and distortion that occurs when sound exits a conventional horn throat. The result is a controlled 100-degree dispersion pattern that focuses high-frequency energy toward the listening area rather than scattering it across the room. Compared to standard in-ceiling speakers that mount a bare dome tweeter with no waveguide, the Tractrix® horn improves efficiency, lowers distortion at higher volume levels, and reduces the reflected energy that blurs fine sonic detail in untreated rooms. This is the same horn-loading philosophy Klipsch has refined since 1946 across its Heritage Series, Reference Premiere, and professional cinema loudspeaker lines.

6.5-Inch Polypropylene Woofer

The low-frequency section of the DS-160C uses a 6.5-inch Polypropylene cone woofer operating within an ABS infinite baffle enclosure, flush-mounted with the ceiling surface. The Polypropylene cone is chosen for its combination of stiffness, light weight, and resistance to humidity, all of which matter in environments such as kitchens, bathrooms, and covered outdoor areas where in-ceiling speakers are regularly placed. The 6.5-inch driver covers the bass and midrange frequencies from 77 Hz upward, handling music, dialogue, and surround content cleanly before the crossover hands off to the Tractrix® horn tweeter. With 50W RMS power handling and a 200W peak rating, the DS-160C pairs comfortably with a wide range of residential amplifiers, multi-zone receivers, and AV processors used in whole-house audio systems.

Patented SkyHook Tool-Free Installation System

The DS-160C uses Klipsch's Sky Hook Cinch by Swarm installation system, a patented mechanism that removes the need for any tools during ceiling mounting. When the speaker body is inserted into an 8.3-inch cutout hole, the internal dog legs engage automatically at a factory-preset clamping force. This preset torque eliminates the risk of overtightening and ceiling damage, which is a common problem with manually adjusted dog-leg screws on conventional in-ceiling speakers. In cases where the ceiling surface is not perfectly flat, a quarter-turn of each dog-leg screw provides additional adjustment for a flush, level finish. The full mounting depth is 4.34 inches, making the DS-160C compatible with standard 2x6 and 2x8 ceiling joist bays in typical Canadian residential construction. An optional fire-rated enclosure (ME-650-C) and installation kit (IK-650-C II) are available separately.

Key Features

• 6.5-Inch Polypropylene Woofer: A lightweight, moisture-resistant polymer cone delivers clean bass and midrange from 77 Hz upward, suited to music, home theater, and distributed audio in rooms of small to medium size.
• 1-Inch Silk Dome Tweeter with Tractrix® Horn: The silk dome provides smooth, fatigue-free high-frequency reproduction, and the round Tractrix® horn controls dispersion at a consistent 100-degree angle for focused delivery toward the listening area.
• 91 dB Sensitivity: High efficiency reduces the amplifier power needed to drive the speaker to comfortable listening levels, a key advantage in multi-zone systems where power is shared across multiple speakers.
• Patented SkyHook Tool-Free Installation: The Cinch by Swarm mechanism auto-engages dog legs at a preset clamping force on insertion, eliminating overtorquing and cutting installation time by up to 75 percent.
• Bezel-Free Magnetic Grille: A powder-coated magnetic steel grille attaches flush to the ceiling with no visible bezel, creating a discreet, near-invisible appearance. The grille is paintable to match any ceiling color.
• 50W RMS / 200W Peak Power Handling: Compatible with a wide range of residential amplifiers, AV receivers, and multi-zone distribution amplifiers used in whole-house audio installations.
• 8-Ohm Compatible Impedance: Standard impedance for straightforward integration with any residential amplification without special wiring considerations.
• ABS Infinite Baffle Enclosure: The speaker mounts flush with the ceiling and uses the cavity above as a natural infinite baffle, removing the need for a separate back box in standard drywall construction.

Technical Specifications

Frequently Asked Questions

What is the Klipsch DS-160C?

The Klipsch DS-160C is a 6.5-inch two-way in-ceiling speaker from the Klipsch Designer Series, featuring a 1-inch Silk Dome tweeter mated to a round Tractrix® horn and a 6.5-inch Polypropylene woofer. It delivers 91 dB sensitivity, handles 50W RMS, and covers a frequency range of 77 Hz to 20 kHz, making it suited for whole-house distributed audio, home theater use, and two-channel stereo listening in standard ceiling positions.

What is the difference between the Klipsch DS-160C and the DS-160CDT?

The DS-160C and the DS-160CDT share identical drivers, sensitivity, frequency response, dimensions, and the same SkyHook installation system. The key distinction is that the DS-160CDT adds Klipsch's Controlled Dispersion Technology, which allows both the tweeter and the woofer to be independently aimed up to 15 degrees in any direction via a patent-pending gimbal mechanism. The DS-160C uses a fixed-position tweeter with no aiming capability. For rooms where the speaker can be mounted directly above the primary listening position, the DS-160C is a straightforward and cost-effective choice. When installation constraints force an off-center mounting location, the DS-160CDT's aiming flexibility produces significantly better on-axis performance at the listening seat.

How does the Klipsch DS-160C compare to the Polk Audio RC60i or Sonance C6R?

The Klipsch DS-160C delivers meaningfully higher efficiency than both the Polk Audio RC60i and the Sonance C6R. The DS-160C measures 91 dB sensitivity, while conventional dome-tweeter in-ceiling designs from Polk and Sonance typically fall in the 87 to 89 dB range. The Tractrix® horn on the DS-160C is the primary reason for this advantage: the horn loads the tweeter and focuses its output into a 100-degree controlled pattern, which both raises efficiency and reduces the reflected treble energy that these competing models scatter more broadly into the room. In practical terms, the DS-160C plays louder from the same amplifier power and delivers clearer high-frequency detail in typical residential listening environments.

Can the Klipsch DS-160C be used for home theater surround sound?

Yes, the DS-160C is a capable choice for in-ceiling surround and overhead speaker positions in a home theater system. Its 91 dB sensitivity and 100-degree coverage angle ensure it can fill a room with surround content without straining the amplifier. When paired with a subwoofer handling low-frequency effects below 80 Hz or 100 Hz, the DS-160C covers the full range of surround and height channel content. For Dolby Atmos height channels where a directly overhead position is achievable, the fixed-tweeter DS-160C performs well. For off-axis ceiling positions in Atmos rigs, the DS-160CDT with its aiming capability is the more suitable option.

How does the SkyHook installation system work?

The SkyHook system uses Klipsch's patented Cinch by Swarm mechanism, in which the speaker body is simply inserted into an 8.3-inch cutout hole cut in the ceiling. Internal dog legs engage automatically when the speaker is seated in the cutout, locking at a factory-preset clamping force that prevents overtorquing and ceiling damage. No screwdriver is required for the primary clamping action. For ceilings that are slightly uneven, a quarter-turn of each dog-leg screw provides fine adjustment for a flush, level surface finish. Installation time is reduced by up to 75 percent compared to manual dog-leg systems, making the SkyHook mechanism particularly valuable in multi-room installations where dozens of speakers need to be mounted efficiently.

Where can I buy the Klipsch DS-160C in Toronto or Canada?

The Klipsch DS-160C is available at Vinyl Sound, an authorised Klipsch dealer in Toronto, Canada. Vinyl Sound carries the complete Klipsch Designer Series and custom installation range, and the team can assist with system planning, amplifier matching, and accessory recommendations including the IK-650-C II installation kit and the ME-650-C fire-rated enclosure for code-compliant builds across the Greater Toronto Area and surrounding regions.

Is the Klipsch DS-160C sold individually or as a pair?

The DS-160C is sold individually as a single speaker. For a stereo listening zone, two units are required. For whole-house distributed audio or multi-room systems, the quantity needed depends on the number of zones and speaker positions in the installation layout.

Does the Klipsch DS-160C require a back box or enclosure?

The DS-160C is an infinite baffle design that does not require a dedicated back box for standard residential drywall ceiling installations. The cavity above the ceiling drywall acts as the natural infinite baffle for the woofer. The optional ME-650-C fire-rated enclosure is available separately for projects where local building codes require fire separation between floors or rooms, and the optional IK-650-C II installation kit is available for professional custom integration work requiring mud rings and color-coded mounting brackets.
