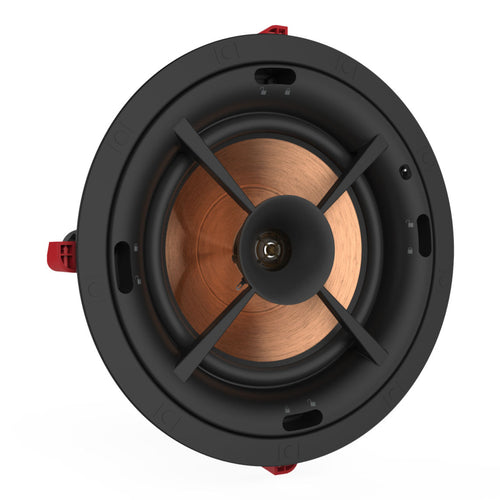

Klipsch PRO-180RPC In-Ceiling Speaker at Vinyl Sound Toronto Canada

The PRO-180RPC is a premium in-ceiling speaker from Klipsch (Indianapolis, Indiana, USA), available at Vinyl Sound in Toronto, Canada. Part of the Professional Reference Premiere Architectural series, it uses the same acoustic components and horn materials as the acclaimed Reference Premiere box speaker lineup, bringing genuine audiophile-grade performance to a flush architectural installation. The speaker combines an 8" Cerametallic woofer with a 1" Titanium Dome Tweeter mated to a composite-coated round Tractrix Horn, delivering a wide frequency range of 52 Hz to 23 kHz at 96 dB sensitivity. Suited for both distributed whole-home audio and dedicated home theater systems, the PRO-180RPC is the choice for integrators and homeowners who want Reference Premiere sound without visible speakers in Toronto and across Canada.

Reference Premiere Acoustic Components in an Architectural Format

The PRO-180RPC shares the same driver materials and horn technology found in Klipsch's Reference Premiere floorstanding and bookshelf speaker lineup. The 8" Cerametallic cone woofer uses a metal diaphragm that has been hard-anodized on both surfaces to create an extremely stiff yet well-damped cone. This high stiffness-to-mass ratio produces tight, accurate bass reproduction and clear midrange detail that standard polypropylene or paper woofers cannot match at this size. Combined with the 1" Titanium Dome Tweeter, the PRO-180RPC achieves the dynamic, open character that Klipsch's Reference Premiere series is known for globally, delivered from a speaker that disappears cleanly into any ceiling.

Tractrix Horn Technology for Controlled, Efficient High-Frequency Delivery

The composite-coated round Tractrix Horn on the PRO-180RPC is a Klipsch-proprietary geometry designed to match the natural propagation of sound in free air. By shaping the horn throat and flare to align with how acoustic energy expands, the Tractrix profile reduces internal reflections, lowers distortion, and allows the tweeter to project high frequencies with maximum efficiency across a wide 100-degree coverage angle. The result is crisp, intelligible dialogue, extended high-frequency detail up to 23 kHz, and the controlled directivity that prevents excess ceiling bounce and slap. This makes the PRO-180RPC particularly effective in open-plan living spaces, multi-seat media rooms, and whole-home audio zones across Toronto and beyond.

Key Features

• 8" Cerametallic Woofer: The Cerametallic cone material combines the rigidity of metal with the damping characteristics of a ceramic-like anodized surface, producing a high stiffness-to-mass ratio. This delivers powerful, detailed bass and accurate midrange reproduction, matching the driver quality of Klipsch's Reference Premiere box speaker line.
• 1" Titanium Dome Tweeter with Composite-Coated Round Tractrix Horn: The titanium dome tweeter is loaded into a round Tractrix horn that controls high-frequency dispersion across a 100-degree coverage angle. The composite coating on the horn body adds rigidity and reduces resonance, ensuring clean, articulate treble detail and strong vocal clarity.
• 96 dB Sensitivity: With 96 dB sensitivity at 2.83V/1m, the PRO-180RPC is highly efficient and reaches high listening levels with modest amplifier power. It handles 50W RMS and 200W peak, making it compatible with standard AV receivers, multi-room amplifiers, and dedicated home theater processors.
• SecureFit Modular Installation System: Klipsch's exclusive SecureFit system uses dog legs that are engaged by hand to a preset clamping force, eliminating overtorquing that can crack drywall. The speaker module then attaches to the bezel with machine screws rather than drywall screws, providing a mechanically stable and acoustically solid installation that competes at a higher level than traditional dog-leg systems.
• Round and Square Paintable Magnetic Grilles Included: Both a round and a square magnetic grille are included in the box, giving homeowners and designers the flexibility to select the shape that best fits their ceiling aesthetic. Both grilles are paintable and attach magnetically for a bezel-free, seamless appearance.
• PVC Magnetic Paint Shield Included: A magnetic PVC paint shield is provided to protect the speaker module from paint overspray and construction dust during renovations and new builds, allowing rough-in well before final decoration.
• 8-Ohm Compatible, ABS Infinite Baffle Enclosure: The 8-ohm nominal impedance ensures broad compatibility across all standard AV receivers and distributed audio amplifiers. The ABS infinite baffle enclosure type provides consistent acoustic loading for the woofer and contributes to the speaker's compact installation depth of 4.45 inches.

Technical Specifications

What's in the Box

• Klipsch PRO-180RPC In-Ceiling Speaker (1 unit)
• Round Paintable Magnetic Grille
• Square Paintable Magnetic Grille
• PVC Magnetic Paint Shield

Frequently Asked Questions

What is the Klipsch PRO-180RPC?

The Klipsch PRO-180RPC is a professional-grade in-ceiling speaker from the Reference Premiere Architectural series, featuring an 8" Cerametallic woofer and a 1" Titanium Dome Tweeter with a composite-coated round Tractrix Horn, 96 dB sensitivity, and 8-ohm compatibility. It covers a frequency range of 52 Hz to 23 kHz and is designed for distributed whole-home audio and home theater applications where a clean, flush ceiling installation is required.

How does the Klipsch PRO-180RPC differ from the Klipsch PRO-180RPC LCR?

The Klipsch PRO-180RPC and PRO-180RPC LCR share the same Cerametallic woofer and Tractrix Horn technology, but the LCR variant adds a 45-degree angled driver configuration and uses an FEA-optimized square Tractrix Horn rather than the standard round horn. The PRO-180RPC fires straight downward and suits distributed audio zones, background music systems, and applications where even overhead coverage is the priority. The PRO-180RPC LCR's angled drivers project sound toward a specific listening position, making it more appropriate as a dedicated front-channel LCR or overhead Dolby Atmos speaker in a home theater. For whole-home audio and multi-room installations in Toronto and across Canada, the standard PRO-180RPC is typically the better fit.

Can the Klipsch PRO-180RPC be used for home theater surround channels?

Yes, the Klipsch PRO-180RPC can be used for surround and overhead channels in a home theater system. Its 96 dB sensitivity and 100-degree coverage angle make it effective for side surround, rear surround, and Dolby Atmos height positions where a downward-firing speaker is appropriate. Because it shares acoustic DNA with the Reference Premiere box speaker line, it integrates tonally with Reference Premiere floorstanding and bookshelf speakers used as front-channel speakers, allowing a cohesive all-Klipsch home theater system.

What is the Tractrix Horn and what does it do?

The Tractrix Horn is a Klipsch-proprietary horn geometry where the flare rate is calculated to match the natural expansion of sound in free air, minimizing internal reflections and allowing the tweeter to operate at high efficiency with low distortion. On the PRO-180RPC, the composite-coated round Tractrix Horn spreads high frequencies across a wide 100-degree coverage angle, delivering consistent treble detail and vocal clarity to all listeners in the room without the harsh, beamy behavior of less sophisticated horn designs. The composite coating adds structural rigidity to the horn body, further reducing resonance and coloration in the critical upper midrange and treble frequencies.

How does the Klipsch PRO-180RPC compare to the Sonance VP89R or Polk Audio RC80i?

The Klipsch PRO-180RPC stands apart from the Sonance VP89R and Polk Audio RC80i primarily through its driver materials and sensitivity. The PRO-180RPC's Cerametallic woofer cone delivers higher rigidity and lower distortion than the soft-dome or polypropylene woofers found in the Polk Audio RC80i, which is rated at approximately 89 dB sensitivity versus the PRO-180RPC's 96 dB. The Sonance VP89R is a solid performer but does not use horn-loaded tweeter technology, meaning it cannot match the PRO-180RPC's controlled directivity or dynamic output at equivalent power levels. For audiophile-grade whole-home audio and high-performance home theater in Toronto and across Canada, the PRO-180RPC represents a meaningfully higher level of acoustic performance.

What amplifier or receiver do I need to drive the Klipsch PRO-180RPC?

The Klipsch PRO-180RPC works with any standard AV receiver, stereo amplifier, or distributed audio amplifier rated for an 8-ohm load. Its 96 dB sensitivity means it requires very little power to reach comfortable listening levels, making it an excellent choice for multi-zone whole-home audio systems where one amplifier drives multiple speaker pairs. A receiver or amplifier rated at 20W to 100W per channel is more than sufficient for typical residential installations, and the 200W peak power handling provides ample headroom for high-output home theater use.

Where can I buy the Klipsch PRO-180RPC in Toronto or Canada?

The Klipsch PRO-180RPC is available at Vinyl Sound, an authorized Klipsch dealer in Toronto, Canada. Vinyl Sound carries the full Klipsch Professional Series and Reference Premiere architectural lineup and can assist with speaker selection, system design, and professional installation guidance for home theater, distributed audio, and whole-home audio projects throughout the Greater Toronto Area and across Canada.

Is a back box or enclosure required for the Klipsch PRO-180RPC?

The Klipsch PRO-180RPC uses an infinite baffle enclosure design, meaning it is engineered to operate in a standard open ceiling cavity without requiring a dedicated back box. However, installing an optional back box enclosure can improve bass consistency between rooms, reduce sound transmission to adjacent spaces, and protect the speaker in plenum-rated environments. For dedicated home theater installations or rooms where acoustic isolation is important, Klipsch's compatible back box enclosures are available and recommended for optimal and consistent low-frequency performance.
