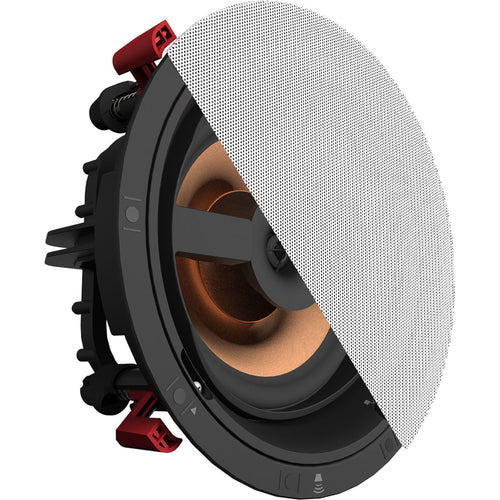

Klipsch PRO-18RC In-Ceiling Speaker at Vinyl Sound Toronto Canada

The PRO-18RC is a professional-grade 8" in-ceiling speaker from Klipsch (Indianapolis, Indiana, USA), available at Vinyl Sound in Toronto, Canada. Part of the Professional Reference Architectural series, it shares the same acoustic components and horn design as the Klipsch Reference box speaker lineup, bringing the dynamic voicing of the Reference series to a flush ceiling installation. The speaker features an 8" Injection Molded Graphite (IMG) woofer and a 1" Pivot Aluminum Dome Tweeter mated to a round Tractrix Horn, delivering a frequency range of 56 Hz to 23 kHz (+/-3 dB) at 95 dB sensitivity. With Controlled Dispersion Technology allowing both drivers to be aimed up to 15 degrees in any direction and the exclusive SecureFit modular installation system, the PRO-18RC is the ideal choice for custom whole-home audio and home theater installations available at Vinyl Sound in Toronto and across Canada.

True Reference Acoustics in an Architectural Format

The PRO-18RC is built from the same acoustic DNA as the Klipsch Reference box speaker line, using the same IMG woofer material and Tractrix Horn design found in Klipsch's standalone Reference series. Injection Molded Graphite (IMG) is a composite cone material that combines the low mass of traditional paper with significantly higher stiffness and improved internal damping, producing tighter bass definition and lower midrange coloration than standard polypropylene cones. At 8" in diameter, the IMG woofer moves enough air to reproduce bass down to 56 Hz while maintaining the articulation that the Reference series is recognized for globally. The 1" Aluminum Dome Tweeter loaded onto a round Tractrix Horn extends high-frequency response to 23 kHz, delivering the open, dynamic top end that characterizes Klipsch sound worldwide, from a speaker that disappears cleanly into any ceiling.

Controlled Dispersion Technology for Precise Driver Aiming

The PRO-18RC incorporates Klipsch's Controlled Dispersion Technology (CDT), which allows both the 1" aluminum dome tweeter and the 8" IMG woofer to be aimed up to 15 degrees in any direction from the center axis. In a standard in-ceiling installation, a fixed downward-firing speaker can only deliver on-axis frequency response to a listener seated directly beneath it. The CDT pivot mechanism on the PRO-18RC allows both drivers to tilt toward an off-center listening position or a seating row that is not directly under the speaker, ensuring the best possible on-axis frequency response and imaging precision regardless of ceiling position constraints. This makes the PRO-18RC particularly well suited for rooms where joist spacing, ductwork, or electrical wiring prevents ideal speaker placement directly above the primary listening area, a common challenge in residential custom installation projects across Toronto and Canada.

SecureFit Modular Installation System

The PRO-18RC uses Klipsch's exclusive SecureFit modular installation system, a two-stage mounting approach that produces a more mechanically stable and acoustically solid connection than conventional single-step spring-clip designs. The dog legs are engaged by hand to a preset clamping force, eliminating the overtorquing risk that can crack drywall or break the mounting hardware. The speaker module then attaches to the bezel with machine screws rather than standard drywall screws, producing a rigid baffle-to-ceiling connection that reduces vibration transmission and ensures long-term installation reliability. The bezel-free powder-coated magnetic steel grille attaches cleanly after installation, eliminating the visible frame band for seamless integration into any ceiling surface.

Key Features

• 8" Injection Molded Graphite (IMG) Woofer: IMG cone material combines low mass with high stiffness and controlled internal damping, producing tighter, more articulate bass and cleaner midrange than conventional polypropylene woofers. The same IMG technology is used in the Klipsch Reference box speaker line, bringing Reference-grade woofer performance to the PRO-18RC ceiling format.
• 1" Pivot Aluminum Dome Tweeter with Round Tractrix Horn: The aluminum dome tweeter is loaded onto a round Tractrix Horn that controls high-frequency dispersion across a 100-degree coverage angle. The pivot mount allows the tweeter to be aimed toward the listening position, ensuring on-axis treble detail and vocal clarity even when the speaker is installed off-center from the primary seating area.
• Controlled Dispersion Technology (CDT): Both the tweeter and the 8" IMG woofer can be individually aimed up to 15 degrees in any direction from center, allowing the speaker to direct both high-frequency and midbass energy at the primary listening position from a ceiling installation point that is not directly overhead.
• 95 dB Sensitivity: High efficiency at 95 dB sensitivity means the PRO-18RC produces high listening levels with minimal amplifier power, handling 50W RMS and 200W peak and remaining compatible with standard AV receivers, multi-room amplifiers, and whole-home audio systems.
• SecureFit Modular Installation System: Hand-engaged dog legs at preset clamping force followed by machine-screw baffle-to-bezel attachment produces a robust, acoustically stable installation without drywall damage risk. More structurally reliable than conventional spring-clip mounting alternatives.
• Bezel-Free Round and Square Paintable Magnetic Grilles Included: Both a round and a square powder-coated magnetic steel grille are included in the box, giving homeowners and installers the flexibility to select the shape that best complements their ceiling design. Both are paintable and attach magnetically for clean, tool-free removal.
• PVC Magnetic Paint Shield Included: A magnetic PVC paint shield is included to protect the speaker module from paint overspray and construction dust during renovations and new construction, allowing rough-in well before final decoration.
• 8-Ohm Compatible, ABS Infinite Baffle Enclosure: Broad compatibility with all standard AV receivers, stereo amplifiers, and multi-room distributed audio systems. The ABS infinite baffle enclosure provides consistent acoustic loading for the woofer and contributes to the 6.34-inch mounting depth.
• Compatible with IK-800-C II Install Kit: The optional IK-800-C II installation kit (sold separately) is recommended for new construction rough-in, providing mud ring, wire tie, color-coded brackets, and perforated metal wings for secure pre-drywall installation.

Technical Specifications

What's in the Box

• Klipsch PRO-18RC In-Ceiling Speaker (1 unit)
• Round Paintable Magnetic Grille
• Square Paintable Magnetic Grille
• PVC Magnetic Paint Shield
• Note: Installation Kit IK-800-C II sold separately

Frequently Asked Questions

What is the Klipsch PRO-18RC?

The Klipsch PRO-18RC is a professional-grade 8" in-ceiling speaker from the Professional Reference Architectural series, featuring an 8" Injection Molded Graphite (IMG) woofer and a 1" Pivot Aluminum Dome Tweeter mated to a round Tractrix Horn, 95 dB sensitivity, and 8-ohm compatibility. It covers a frequency range of 56 Hz to 23 kHz and includes Controlled Dispersion Technology allowing both drivers to be aimed up to 15 degrees in any direction, making it suitable for whole-home audio and home theater installations where speaker placement cannot be directly above the primary listening position.

How does the Klipsch PRO-18RC differ from the Klipsch PRO-180RPC?

The Klipsch PRO-18RC and PRO-180RPC are both 8" in-ceiling speakers with the SecureFit installation system, but they belong to different series and use different driver materials. The PRO-18RC is part of the Professional Reference Architectural series and uses an Injection Molded Graphite (IMG) woofer and an Aluminum Dome Tweeter, the same components found in the Klipsch Reference box speaker line. The PRO-180RPC is part of the Professional Reference Premiere Architectural series and uses a Cerametallic woofer and a Titanium Dome Tweeter, matching the higher-tier Reference Premiere box speaker lineup. The PRO-18RC includes Controlled Dispersion Technology with 15-degree driver aiming for both the tweeter and woofer, while the PRO-180RPC is a fixed downward-firing design. The PRO-18RC is the better choice when driver aiming flexibility is needed; the PRO-180RPC is preferred when maximum Cerametallic driver performance in a fixed installation is the priority.

What is Controlled Dispersion Technology and how does it help in difficult installation positions?

Controlled Dispersion Technology (CDT) on the PRO-18RC is a pivot mechanism that allows both the 1" aluminum dome tweeter and the 8" IMG woofer to be physically tilted up to 15 degrees in any direction from the center axis of the speaker. In a typical residential ceiling installation, joist spacing, ductwork, HVAC vents, recessed lighting, and structural elements frequently prevent placing a speaker directly overhead of the main listening position. CDT allows the installer to position the PRO-18RC at the nearest available ceiling location and then angle both drivers toward the seating area, delivering on-axis frequency response and more precise imaging than a fixed downward-firing speaker aimed at the floor beside the listener rather than at them.

What is Injection Molded Graphite (IMG) and how does it compare to a standard polypropylene woofer?

Injection Molded Graphite (IMG) is a woofer cone material in which graphite fibers are compounded into the polymer during the injection molding process, producing a cone that is significantly stiffer and better damped than a standard polypropylene cone of the same weight. The higher stiffness reduces cone flex and breakup at upper bass and lower midrange frequencies, producing tighter, more accurate bass definition and cleaner midrange reproduction. The lower mass compared to paper or aluminum cones of equivalent stiffness also improves transient response, allowing the 8" IMG woofer to start and stop more quickly for crisply defined bass. Klipsch uses IMG woofers across its Reference box speaker line, and the PRO-18RC brings the same driver technology to a ceiling-mounted architectural format.

How does the Klipsch PRO-18RC compare to the Polk Audio RC80i or Sonance VP88R for whole-home audio?

The Klipsch PRO-18RC offers higher sensitivity and driver aiming capability that the Polk Audio RC80i and Sonance VP88R do not provide. The PRO-18RC's 95 dB sensitivity substantially exceeds the Polk Audio RC80i at approximately 89 dB, meaning it delivers considerably more output for the same amplifier power across a multi-zone whole-home audio system. The Sonance VP88R is a fixed downward-firing speaker with no CDT pivot mechanism, limiting its effectiveness in rooms where ideal ceiling placement is constrained. The PRO-18RC's Tractrix Horn also provides more controlled and efficient high-frequency dispersion than the conventional dome tweeter arrangements used in both the Polk Audio and Sonance alternatives, producing cleaner treble at longer distances in larger rooms.

What amplifier power does the Klipsch PRO-18RC require?

The Klipsch PRO-18RC is compatible with any standard AV receiver or amplifier rated for an 8-ohm load. Its 95 dB sensitivity means it achieves high listening levels with very little power, and an amplifier or receiver rated at 20W to 100W per channel is more than sufficient for typical residential whole-home audio and home theater applications. Klipsch recommends up to 100W amplifier power for optimal headroom. The 200W peak power handling provides ample dynamic headroom for demanding home theater use at high output levels.

Where can I buy the Klipsch PRO-18RC in Toronto or Canada?

The Klipsch PRO-18RC is available at Vinyl Sound, an authorized Klipsch dealer in Toronto, Canada. Vinyl Sound carries the full Klipsch Professional Reference Architectural series, including the PRO-18RC, PRO-16RC, PRO-180RPC, and PRO-160RPC, and can assist with speaker selection, Controlled Dispersion Technology aiming guidance, system design, and professional installation for home theater and whole-home audio projects throughout the Greater Toronto Area and across Canada.
