PSB Alpha T20 2.5-Way Tower Speaker (Pair) at Vinyl Sound Toronto Canada

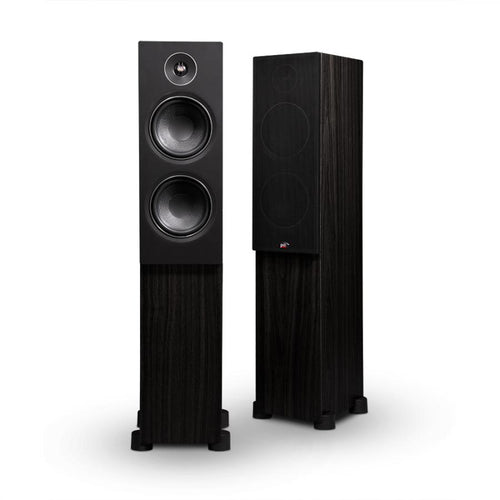

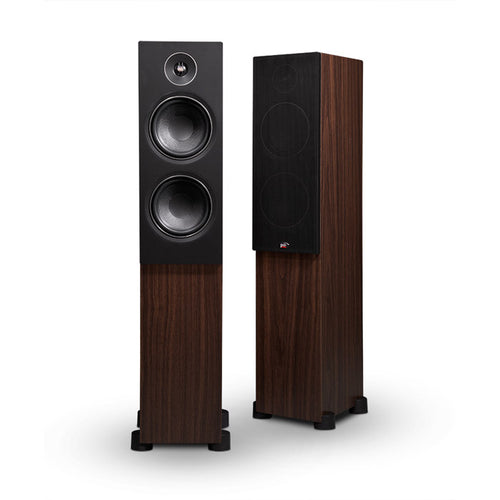

The Alpha T20 is a 2.5-way floorstanding tower speaker from PSB Speakers (Pickering, Ontario, Canada), available as a pair at Vinyl Sound in Toronto, Canada. The flagship model of PSB's redesigned Alpha Series launched in 2020, the T20 represents a ground-up rethinking of PSB's most enduring loudspeaker line, first introduced in 1991. It features a 0.75" black anodized aluminum dome tweeter with ferrofluid cooling and neodymium magnet, dual 5.25" textured polypropylene woofers with dual-layer voice coils, and a rear-firing bass-reflex port, all housed in a slim MDF cabinet available in Black Ash and Walnut Woodgrain. With a rated frequency response of 36Hz to 21,000Hz (+/-3dB), 88dB anechoic sensitivity, and 8 ohm nominal impedance, the T20 is voiced by PSB founder Paul Barton at Canada's National Research Council (NRC) facilities in Ottawa and earned The Absolute Sound Editor's Choice Award 2022.

Dual-Layer Voice Coil Woofers and Textured Polypropylene Cone Design

The PSB Alpha T20's dual 5.25" woofers are among the most engineered components in the Alpha Series. Each driver uses a dual-layer voice coil for increased conductivity and improved current transfer efficiency, which contributes to tighter, more articulate bass transients at lower amplifier power levels. The woofer cones are constructed from a specially textured polypropylene compound that reduces cone breakup and lowers distortion through the upper bass and lower midrange, a critical range that determines how accurately the speaker reproduces the body and warmth of vocals, acoustic instruments, and rhythm section music. The rubber surrounds provide long-throw compliance for extended low-frequency output from the T20's compact enclosure, and the crossover precisely matches both woofers to the tweeter for a smooth transition without the response anomalies common in budget floorstanding designs. A rear-firing bass reflex port extends bass output to a rated -10dB cutoff of 28Hz.

Aluminum Dome Tweeter, Front Waveguide, and NRC Voicing

The Alpha T20's 0.75" black anodized aluminum dome tweeter is a new design developed specifically for the current Alpha Series, representing the most extended high-frequency response of any tweeter in Alpha's history. Ferrofluid fills the voice-coil gap for thermal management, preventing dynamic compression during sustained high-level listening and maintaining consistent output under demanding conditions. The neodymium magnet structure contributes to high sensitivity and a compact pole-piece geometry that tightens the magnetic field for reduced harmonic distortion. The tweeter is recessed into a shallow front waveguide machined into the baffle, which controls the tweeter's dispersion pattern and smooths the on-axis and off-axis frequency response through the crossover region at 2,500Hz. Positioned below the dual woofers on the baffle, the tweeter's placement further optimizes the vertical directivity of the speaker at the crossover frequency, reducing lobing effects that can color the tonal balance in typical seated listening positions. Final system voicing was performed by Paul Barton at the NRC's precision anechoic facilities in Ottawa.

Key Features

• 0.75" Black Anodized Aluminum Dome Tweeter: The most extended high-frequency tweeter in Alpha Series history, with ferrofluid cooling for thermal protection against dynamic compression and a neodymium magnet for high sensitivity and low distortion at the crossover frequency.
• Front Waveguide for Controlled Dispersion: A shallow waveguide integrated into the baffle around the tweeter controls directivity and smooths the on-axis and off-axis frequency response through the crossover region, improving consistency across a wide listening area.
• Dual 5.25" Textured Polypropylene Woofers with Dual-Layer Voice Coils: Specially textured cone material reduces distortion and breakup, while dual-layer voice coils provide exceptional conductivity for tighter, more articulate bass transient performance.
• Rear-Firing Bass Reflex Port: Extends low-frequency output to a -10dB cutoff of 28Hz, providing bass depth well below the rated 36Hz (+/-3dB) response for satisfying full-range performance from a compact enclosure.
• 2.5-Way Transitional Crossover Design: Both woofers operate across the full bass range with the transitional crossover architecture allowing optimized integration with room acoustics for improved power response and dispersion consistency through the crossover region.
• NRC-Voiced by Paul Barton: Final system tuning performed by PSB founder Paul Barton at Canada's National Research Council acoustics laboratory in Ottawa, applying over 50 years of research-based loudspeaker development to an entry-level platform.
• MDF Cabinet with Acoustically Transparent Magnetic Grille: Specially selected MDF with precisely tuned wall thickness and strategic internal bracing controls resonances and minimizes standing waves. Magnetically attached grilles are acoustically transparent and snap on and off without clips.
• Dual Five-Way Gold-Plated Binding Posts: Accepts banana plugs, spade connectors, and bare wire, with bi-wire and bi-amplification supported via the dual terminal pairs.

Technical Specifications

Connections at a Glance

• Dual five-way gold-plated binding posts per speaker (bi-wire and bi-amp capable)
• Accepts banana plugs, spade connectors, and bare wire
• Single rear-firing bass reflex port

Awards and Critical Recognition

• The Absolute Sound Editor's Choice Award (2022)

Frequently Asked Questions

What is the PSB Alpha T20?

The PSB Alpha T20 is a 2.5-way floorstanding tower speaker from PSB Speakers, a Canadian loudspeaker manufacturer based in Pickering, Ontario. It is the flagship model of PSB's redesigned Alpha Series, featuring a 0.75" black anodized aluminum dome tweeter with ferrofluid cooling and dual 5.25" textured polypropylene woofers with dual-layer voice coils. Its rated frequency response is 36Hz to 21,000Hz (+/-3dB), with 88dB anechoic sensitivity and 8 ohm nominal impedance. Voiced by Paul Barton at Canada's National Research Council and awarded The Absolute Sound Editor's Choice in 2022, the T20 is sold as a pair in Black Ash and Walnut Woodgrain finishes.

How does the PSB Alpha T20 compare to the Klipsch RP-600M II tower or the Polk Audio Signature Elite ES55?

The PSB Alpha T20, the Klipsch RP-600M II floor-standing option, and the Polk Audio Signature Elite ES55 are all compact budget floorstanding designs, but they differ meaningfully in engineering approach and sonic character. The Klipsch range in this tier emphasizes horn-loaded tweeter efficiency for high sensitivity and forward dynamics, while the Polk Elite ES55 uses a larger single woofer configuration. The PSB Alpha T20's dual 5.25" woofers with dual-layer voice coils deliver increased cone area and conductivity compared to single-driver designs at the same price, and its NRC-voiced crossover at 2,500Hz achieves smooth on-axis and off-axis response. In published comparisons, reviewers noted the T20's cleaner upper bass character compared to competing towers in its class, attributed to PSB's research-based voicing approach carried down from the Imagine and Synchrony series.

Can the PSB Alpha T20 be used as front speakers in a home theatre system?

Yes, the PSB Alpha T20 is designed for both stereo music listening and home theatre use. PSB offers the Alpha C10 center channel and Alpha P3 and P5 bookshelf speakers as timbre-matched companions for the T20, enabling a complete Imagine-flavored surround system at an accessible entry point. For home theatre configurations, crossing the T20 at 80Hz via the AV receiver's bass management and pairing it with a dedicated subwoofer is recommended to maximize dynamic headroom and relieve the T20's woofers from reproducing the deepest cinematic bass. Used as front left and right speakers, the T20's even dispersion and NRC-voiced tonal balance contribute to clear dialogue anchoring and wide, natural soundstage presentation for film content.

What is the front waveguide on the Alpha T20 tweeter and why does it matter?

The front waveguide on the PSB Alpha T20's tweeter is a shallow flared recess machined into the front baffle surrounding the 0.75" aluminum dome. It functions as a controlled acoustic boundary that gradually transitions the tweeter's radiation pattern from the small dome surface to a larger effective aperture, narrowing the tweeter's directivity at high frequencies in a controlled and predictable manner. In practice, this smooths the transition between the tweeter's on-axis and off-axis frequency responses, reducing the abrupt directivity change that causes response unevenness through the crossover region in many budget designs. The result is more consistent tonality for listeners seated across a wider area in front of the speaker, which benefits both stereo imaging accuracy and multi-channel home theatre dialogue localization.

What amplifier power does the PSB Alpha T20 require?

The PSB Alpha T20 is rated for amplifiers delivering 15 to 120 watts into its 8 ohm nominal impedance, with a 6 ohm minimum that poses no significant challenge to modern integrated amplifiers or AV receivers. Its 88dB anechoic sensitivity and 90dB in-room sensitivity mean it produces satisfying listening levels from modest power in small to medium-sized rooms. Published reviews confirm the T20 has been driven effectively by amplifiers as small as a 10-watt tube integrated at low to moderate volumes. For typical home listening, integrated amplifiers from NAD Electronics, Cambridge Audio, Yamaha, or Denon in the 40 to 80 watt per channel range provide an ideal match and ample dynamic headroom.

Is the PSB Alpha T20 compatible with the PSB Alpha C10 center channel?

Yes, the PSB Alpha C10 center channel speaker is the designated timbre-matched companion for the Alpha T20 in multi-channel home theatre systems. Both the T20 and C10 use the same 0.75" black anodized aluminum dome tweeter with ferrofluid cooling and neodymium magnet, and the same textured polypropylene woofer cone material, ensuring consistent tonal character across the front soundstage. This timbral match is particularly important for dialogue reproduction, where any tonal inconsistency between the center channel and the front left and right speakers can make voices sound colored or disconnected from the stereo image.

Where can I buy the PSB Alpha T20 in Toronto or Canada?

The PSB Alpha T20 Tower Speaker is available as a pair at Vinyl Sound, an authorized PSB dealer in Toronto, Canada. Vinyl Sound carries both Black Ash and Walnut Woodgrain finishes and can assist with system matching, including pairing the T20 with the Alpha C10 center channel and compatible NAD Electronics amplification. Canadian customers outside Toronto can contact Vinyl Sound directly for shipping options across Canada.
