Dali PHANTOM M-80 A In‑Ceiling Speaker (Each)
$1,600.00
Product Details

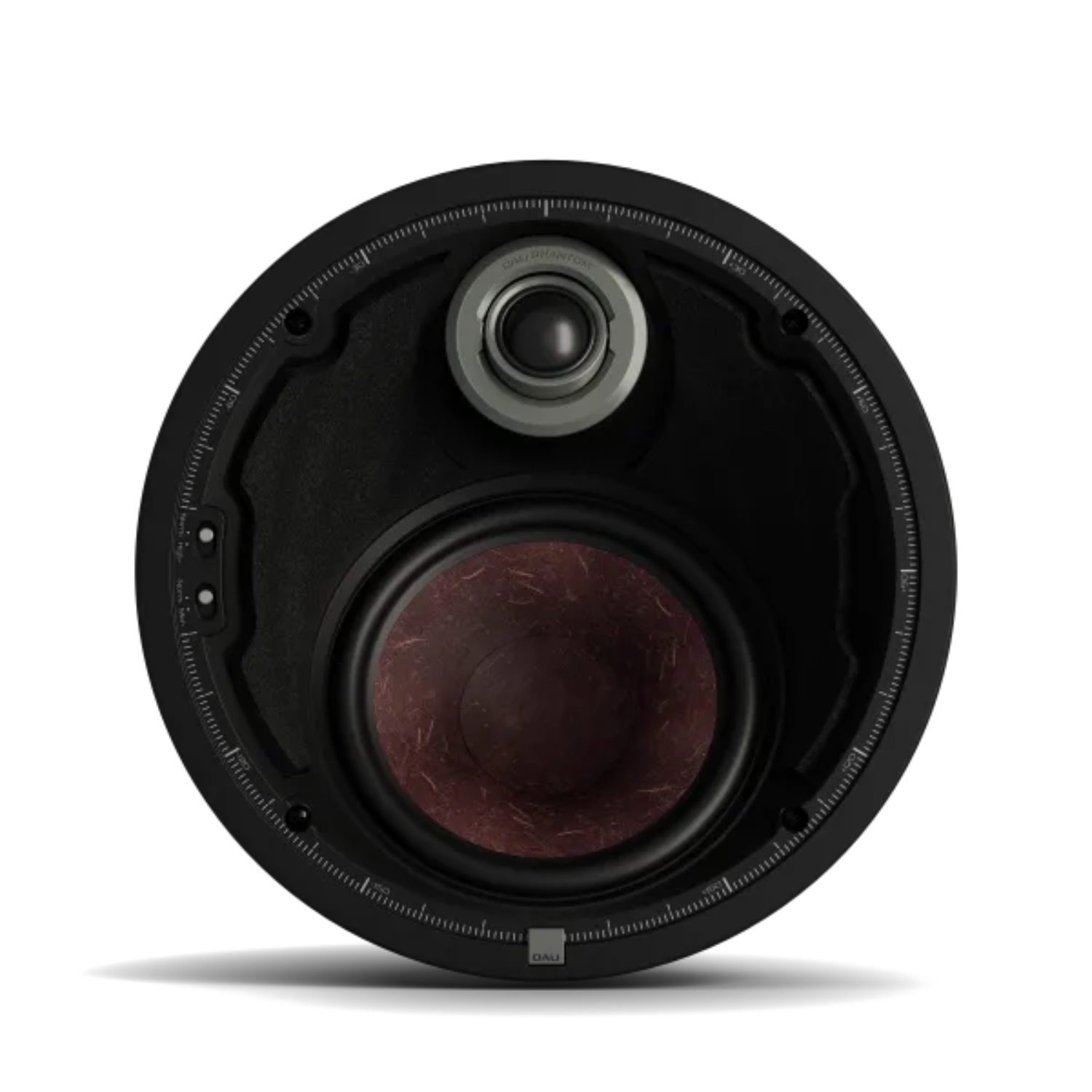

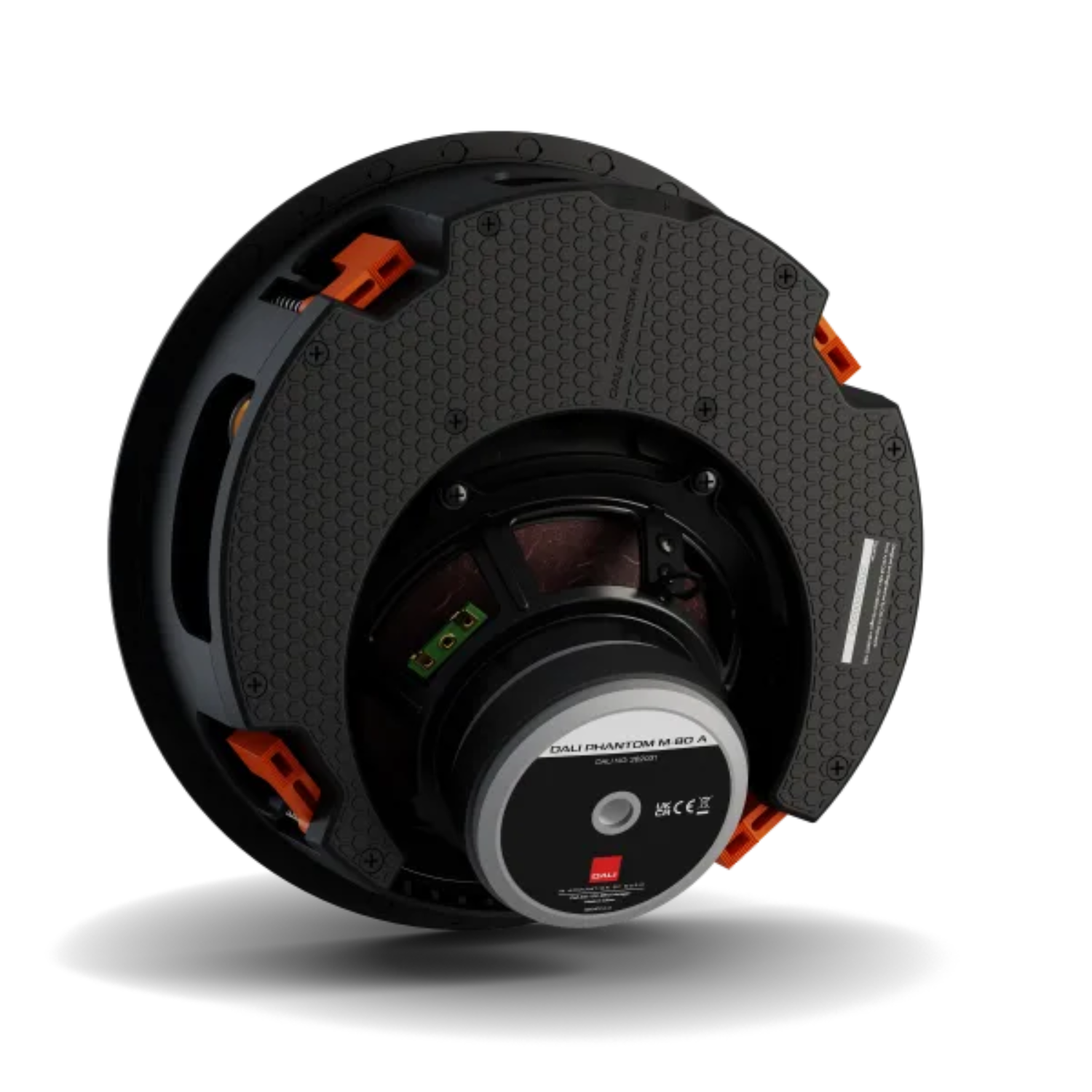

Dali PHANTOM M-80 A In‑Ceiling Speaker (Each)
Il PHANTOM M-80 A è un altoparlante Hi-Fi a soffitto ad alte prestazioni e a dispersione direzionale. Dotato di un driver per bassi/midrange da 7 pollici angolato, progettato da DALI e dotato di SMC e di un innovativo tweeter a cupola morbida disaccoppiato da 28 mm, l'M-80 A offre un suono discreto e straordinario per home theatre di fascia alta, installazioni sonore distribuite e sistemi musicali montati a soffitto.
Adjustable directivity
With its angled drivers, the M-80 A delivers amazing sound where regular in-ceiling speakers can't reach.
In-ceiling surround sound
The M-80 A can deliver discreet front, centre, surround and height channels in a home theatre setup.
Class-leading sound quality
The M-80 A's in-house designed drivers offer class-leading sound quality in the angled in-ceiling speaker category.
Easy one-piece installation
The simple dogleg clamp system and magnetic grille make installing the M-80 A quick and convenient with no need for special tools.
ADJUSTABLE DIRECTIVITY
Optimised for the listening position
With a powerful 7 inch bass/midrange driver angled at 25° and an adjustable tweeter, the PHANTOM M-80 A (angled) lets you direct the sound with precision for optimum dispersion and the best-possible sound quality at the listening position. The M-80 A also incorporates our compass-style direction indicators that make fine adjustments quick and convenient.
IN-CEILING SURROUND SOUND
Discreet speakers with an exceptional sound
With its angled drivers, the discreet M-80 A in-ceiling speaker recreates the immersion of a traditional floor, wall or shelf-mount home theatre setup. Delivering exceptional LCR (left, centre, right), surround and height channel audio, the M-80 A is the perfect solution when floorspace is limited, side and rear walls are not suitable for mounting speakers or when a more discreet setup is preferred.
CLASS-LEADING SOUND QUALITY
A natural, uncoloured midrange
Designed to complement our high-performance M-series in-wall speakers, the M-80 A's 7 inch bass/midrange driver with lightweight paper and wood fibre cone, low-loss rubber surround and DALI's patented SMC-based magnet system offers rich, full low frequencies and a natural, uncoloured midrange. Combine that with the new oversized 28 mm soft dome tweeter with an impressively extended and detailed upper-frequency response and you have a speaker that offers class-leading sound quality in the angled in-ceiling speaker category.
EASY ONE-PIECE INSTALLATION
Install with no need for special tools
The simple dogleg clamp system and magnetic grille make installing the M-80 A quick and convenient with no need for special tools. Simply connect the speaker cables using the spring terminals and insert the speaker into the aperture – only 134 mm mounting depth required. Fine-tune using the compass-style markings and turn the four clamp screws to secure the speaker in place. Then fit the magnetic grille over the speaker and you're done.
PAPER AND WOOD FIBRE CONE
A cleaner and more uncoloured sound reproduction
The M-80 A bass/midrange driver features our unique paper and wood fibre cone material. While adding stiffness to control unwanted vibrations, the wood fibre material also offers non-uniform break-up characteristics to lower colouration and distortion for a cleaner and more uncoloured sound reproduction. The lightweight cone also increases driver sensitivity and makes it easier for the amplifier to control at higher frequencies.
28 MM SOFT DOME TWEETER
A naturally balanced, effortless and coherent midrange performance
The newly developed, oversized 28 mm tweeter generates higher sound pressures with less excursion for exceptional driver control. The oversized design also extends low-frequency response, providing a more seamless handover from the bass/midrange driver that creates a naturally balanced, effortless and coherent midrange performance.
Specifications
| Model | DALI PHANTOM M-80 A |
| Price (Each) | US: $1,100 EU: €799 UK: £699 |
| Product Type | In-Ceiling Speaker |
| Frequency Range (+/- 3dB) | 48 – 27,000 Hz |
| Nominal Impedance | 6 ohms |
| Maximum SPL | 106dB |
| Crossover Principle | 2-way |
| Crossover Frequency | 2,500 Hz |
| Recommended Amplifier Power | 50 to 200 watts |
| High-Frequency Driver (Tweeter) | 1 x 28mm (soft dome) |
| High-Frequency Diaphragm (Tweeter) | Soft woven fabric |
| Low/Mid Frequency Driver (Mid-Woofer) | 1 x 7-inches |
| Low/Mid Frequency Diaphragm (Mid-Woofer) | Wood fiber cone |
| Connection Input | Single Wire |
| Enclosure Type | Open Back |
| Installation Location | In-Ceiling |
| Recommended Placement | LCR or Surround |
| Outer Dimensions Including Grill | 289 x 138.5 mm (11.38 x 5.46 inches) |
| Outer Dimensions Excluding Grill | 278 x 138 mm (10.84 x 5.44 inches) |
| Cut-out Dimensions | 281 mm (10.28 inches) |
| Mounting Depth | 134 mm (5.28 inches) |
| Recommended Rear Volume | 25 liters (Phantom Universal Backbox) |
| Ceiling/Wall Thickness (total dog-leg span) | 5 – 52 mm (2 – 2.05 inches) |
| Weight (including Grill) | 2.8 kg (6.16 lbs) |
| Finish | White |
| Included Accessories | Manual Cut-out Template Front Grill |
| Optional Accessories | Classic Square and Design Grills, Phantom Universal 26 Backbox Pre-Construction Kit |
