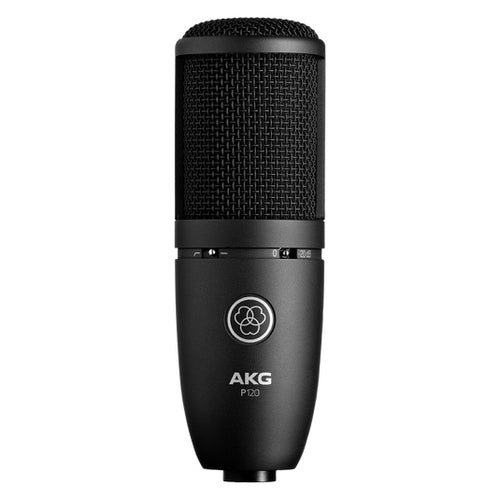

AKG P120-MIC High-performance general purpose recording microphone

Clear. Accurate. Affordable.

The P120 is a 2/3-inch diaphragm true condenser microphone that offers solidly built quality, outstanding performance and excellent value. The low-mass diaphragm delivers a clear sound with accurate sonic detail for vocals, speech and instrument recording in project studios and for home recording.

General Specifications

Polar Pattern

Cardioid

Audio frequency bandwidth

20 - 20000 Hz

Equivalent noise level

19 dB-A

Sensitivity

24 mV/Pa

Signal to Noise

75 dB-A

Preattenuation Pad

-20 dB

Bass cut filter

300 Hz - 6 dB/octave

Electrical impedance

<= 200 Ohms

Recommended load impedance

>= 1000 Ohms

Dimensions

Length

165 mm

Diameter

54 mm

Net Weight

453 g

Audio Output

Type

Balanced XLR

Gender

Male

Contacts

3-pin

Powering Interface

Voltage

44 to 52 V

Current

<= 3 mA

Application

Project Studio

Live Instrument

Instrument

Vocals

Piano / Strings
