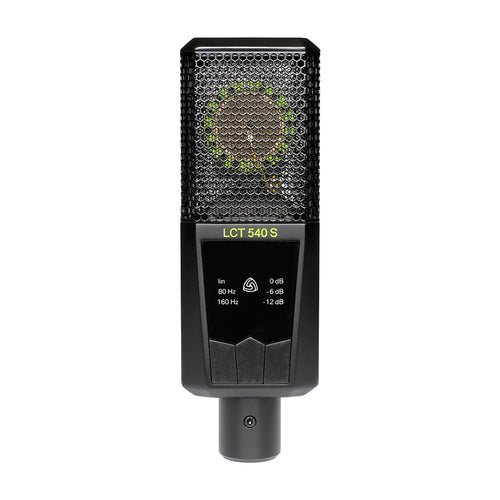

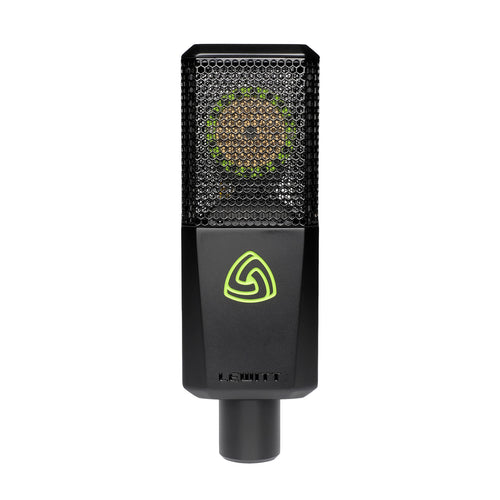

LEWITT LCT 540 S STUDIO MICROPHONE
$949.99
Product Details
Capture every detail.
LCT 540 S
- 1" true condenser studio microphone
- Ultra-low noise microphone circuit
- Fit for extreme processing
- Low-cut filters and attenuation
- Cardioid polar pattern
Included: Shock mount, Magnetic pop filter, Foam windscreen, Transport bag , Transport case
The quietest studio microphone ever made.
Our unique approach towards electronics and capsule design makes the LCT 540 S the quietest studio recording microphone. It lets you capture all the fine-grained details of your voice and instruments that usually wouldn’t even be audible.
The studio microphone without audible self-noise.
Our hearing threshold is very frequency-dependent. It is less sensitive to low and very high frequencies and most sensitive around 2 – 5 kHz. With our specific and unique approach toward circuit and capsule design, the LCT 540 S features self-noise below the hearing threshold across the entire frequency spectrum.
Fit for extreme processing.
With its cutting-edge circuit and capsule design, the LCT 540 S features an impressive dynamic range of 132 dB to capture everything from loud to subtle. You won’t hear the self-noise of the mic even after heavily compressing the signal. Material recorded with the LCT 540 S is fit for extreme processing.
Specifications
- Type
-
Condenser, externally polarized
- Acoustical operating principle
-
Pressure gradient transducer, externally polarized
- Transducer Ø
-
25.4 mm, 1 in
- Diaphragm
-
3 micron gold sputtered Mylar
- Polar pattern
-
Cardioid
- Frequency range
-
20 ... 20,000 Hz
- Sensitivity
-
41 mV/Pa, -28 dBV/Pa
- Self-noise
-
4 dB (A)
- Max. SPL for 0.5 % THD
-
136 dBSPL, 0 dB attenuation
- Signal / noise ratio
-
90 dB (A)
- Dynamic range
-
132 dB (A)
- Attenuation
-
0 dB
-6 dB
-12 dB
- Low-cut filter
-
linear
80 Hz (6 dB/oct)
160 Hz (6 dB/oct)
- Internal impedance
-
68 Ω
- Supply voltage
-
48 V ± 4 V
- Current consumption
-
3.6 mA
- Microphone enclosure
-
Zinc die cast
- Connector
-
Gold-plated 3-pin XLR
- Microphone dimensions
-
158 x 52 x 36 mm, 6.22 x 2.04 x 1.42 in
- Microphone net weight
-
371 g, 13.1 oz
Microphones measured according to: IEC 60268-4 | Phantom power according to: IEC 61938 | Noise measurement according to: IEC 60268-1
