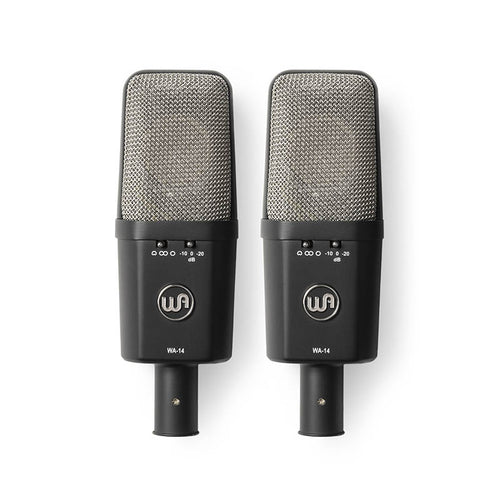

WARM AUDIO - WA-14SP STEREO PAIR LARGE-DIAPHRAGM TRANSFORMER-BALANCED CONDENSER MICROPHONE
$1,169.00 CAD
Starting at $54/mo with Affirm. Learn more
Product Details
Authentic Recreation Of The Most Truthful Studio Mic Of All Time
The Reference Condenser
The WA-14 is an authentic recreation of the ultra-rare “EB-circuit” 414-style microphone, the most truthful studio mic of all time. Ideal for capturing the natural sound of performances, the WA-14 delivers the same sonic performance of the original - a favorite of artists like The Police, Common, Freddie Mercury, and Billy Corgan.
True Character & Clarity
The WA-14 achieves the same sonic performance of its original “EB” inspiration, delivering clear mids, controlled bass, and accurate high-end emphasis for recordings that stay true to the original performance. For this reason, the WA-14 and the vintage original are celebrated as the ultimate "jack of all trades" mic.
Key Features
Like the original EB 414-style mic, the WA-14 includes all the features that deliver a complete and professional recording experience.
Three polar patterns (cardioid, omni, and figure-8) give you a variety of options to choose how you want to capture sound and reject noise.
The -10 / -20 dB pad provides more headroom to record loud sources with the impressive detail of a large diaphragm condenser.
Unlike nylon iterations of this capsule, the brass CK12-style capsule in the WA-14 delivers the vintage performance of the original pairing natural midrange with smooth top-end.
The WA-14 SP package comes with a stereo mounting bar for easy recording setup and an ultra-durable flight case for storage and travel. Each WA-14 mic is a matched sequential pair: Within +/- 1dB of each other.
Technical Specifications
Product Description & External Specs
-
Large-Diaphragm Transformer-Balanced Condenser Microphone
-
Polar Patterns: Cardioid, Figure-8, & Omnidirectional
-
Output Pad: 0dB, -10dB, -20dB
-
3-Pin, Gold-Plated XLR
-
Color: Black
-
SINGLE MIC Package includes WA-14 Microphone, Shock Mount, Hard Mount, And Protective Pouch
-

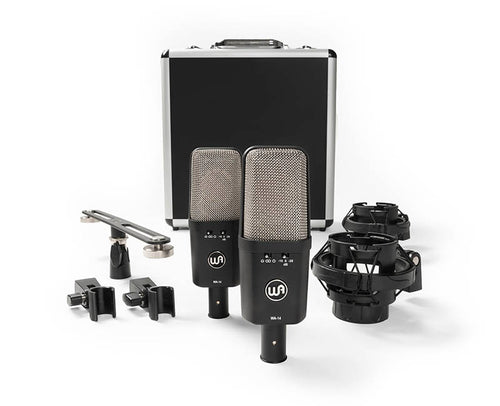

STEREO PAIR Package includes (2) WA-14 Mics, (2) Shock Mounts, (2) Hard Clips, (2) Pleather Zipper Pouches, Flight Case, Stereo Mounting Bar
-
5-Year Warranty
Components & Internal Specs
-
Custom Edge-Terminated, Dual-Diaphragm, 34mm, All-Brass CK12-Style Capsule
-
Custom CineMag USA Transformer
Performance Specs
-
Stereo Pair: Sequential-Serial Pair: Within +/- 1dB
-
Frequency Range: 20 Hz To 20 kHz
-
Output Impedance: 150 Ohms
-
Self Noise: 16 dB(A) +/- 1dB
-
Max SPL: 165 dB
-
Sensitivity at 1000 Hz (all patterns): 9 mV/Pa
-
Requires +48V Phantom Power
Polar Patterns
WA-14 Cardioid Frequency Chart
WA-14 Figure 8 Frequency Chart
WA-14 Omni-Directional Frequency Chart
Components
Premium Components - Elite Build Quality - Superior Sound
CK12-Style Capsule
The WA-14 uses a custom all-brass, edge-terminated capsule that captures all the smoothness, rich top end, and warm vintage sonics of the original CK12 capsule. The WA-14 uses a variant CEK-12 back plate as a basis, which overcomes manufacturing limitations of the original CK12 capsule. Unlike later nylon iterations, the o-ring and housing of the capsule are all made from brass (no teflon parts), and the diaphragm is 24k gold sputtered 6-micron, NOS PET film (mylar). The end result is a very consistent, reliable capsule which matches the frequency response and tonality of the classic 1970's 414 "EB" classic capsule.
Cinemag USA-Made Output Transformer
The WA-14 utilizes an American-made CineMag USA transformer. CineMag has a rich history of manufacturing some of the most sought-after American-made transformers. CineMag products date all the way back to World War II (as Reichenbach Engineering) and were pivotal in creating some of the most legendary audio products in the last 100 years. This transformer helps provide the full, truthful tone that one would hope to get from a 414-style "EB" condenser microphone.
Fully Discrete Signal Path
The WA-14 uses a completely discrete signal path alongside its premium capsule and transformer for an undeniably analog sound & vibe.
Authentic Appearance, Elite Build Quality, Premium Accessories
The WA-14 is built with exacting standards and premium components. Premium accessories include a hardmount, shockmount, and a leather pouch. Every WA-14 is meticulously hand-inspected at Warm HQ in Austin,TX by real musicians and engineers with a passion for superior sound.
