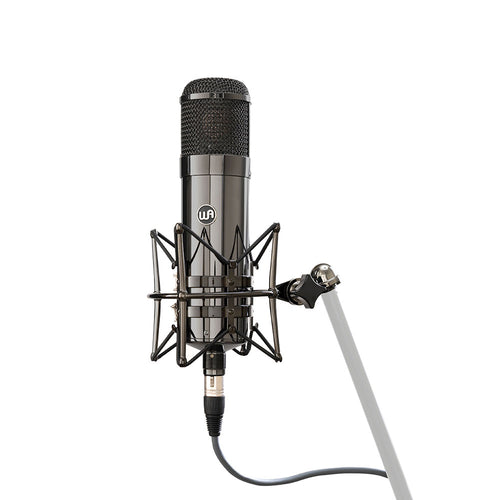

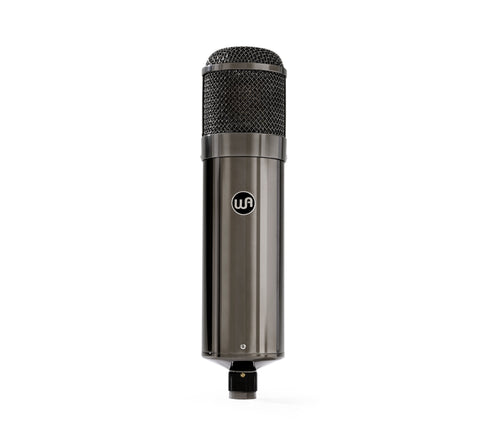

WARM AUDIO - WA-47T LARGE-DIAPHRAGM TUBE CONDENSER MICROPHONE (TITANIUM)
$1,599.00 CAD
Product Details
Authentic Reproduction Of The Most Coveted Mic For Timeless Studio Sound
Timeless Studio Sound
The WA-47 is an authentic reproduction of the most coveted tube condenser microphone, hailed for its timeless studio sound. The WA-47 accurately matches the sonic profile of the prized vintage originals delivering the deep bass, rich midrange, and smooth highs that made it a favorite of legendary recording artists like Frank Sinatra, Johnny Cash, Ella Fitzgerald, Billie Holiday, Elton John and many more.
A Proper Recreation Of A Studio Legend
The WA-47 is designed and built to deliver the most authentic vintage 47-style sound with zero corners cut. Just like the original, the WA-47 circuit allows a lot of low-end and mid detail to come through. While the lows and mids come together to capture all the rich warmth and detail of acoustic instruments, vocals benefit greatly from the smooth and pleasing top end of the WA-47. The coveted and unmistakably vintage sound profile of the WA-47 makes it the perfect choice to create timeless music.
Key Features
Like the original 47-style mic, the WA-47 includes all the features that deliver a complete and professional recording experience.
The WA-47 uses a true reproduction of the K47-style capsule in the original 47 tube mic. Perfect for recordings where vintage vibe is a must.
The custom USA-made AMI transformer drives the bold sound captured by the capsule, delivering the full body, warmth, and richness out of the WA-47 circuit.
The premium 5751 vacuum tube in the WA-47 delivers rich analog tone with exceptionally low gain - ideal for intimate recordings, especially on vocals.
The WA-47 has three key polar patterns - Cardioid, Omni, & Figure-8. Six additional patterns in-between provide ultimate flexibility and versatility for a variety of recording applications.
Technical Specifications
Product Description & External Specs
-
Large-Diaphragm Tube Condenser Microphone
-
9 Polar Patterns - Cardioid, Omnidirectional, Figure-8, + 6 intermediate patterns
-
Weight - 9 Lbs | Mic Diameter: 60mm | Mic Length: 254mm
-
Includes: Microphone, Wood Box, Power Supply Unit, Shockmount, Gotham 7 Pin GAC-7 Cable, IEC Power Cable
-
5-Year Warranty
Components & Internal Specs
-
Custom, K47-Style Capsule - Gold-Sputtered, Dual-Backplate, 6 Microns NOS Mylar (PET Film)
-
TAB-Funkenwerk (AMI) USA Output Transformer
-
Premium 5751 Vacuum Tube
-
Wima, Solen French, And Polystyrene Capacitors
Performance Specs
-
Self-Noise: 11dBA
-
Dynamic Range: 130dBA
-
Maximum SPL: 140dB (<0.5% THD)
-
Dimensions: 8” X 2.75” (20.3cm X 7cm)
-
Frequency Range: 20 Hz~20 KHz
-
Output Impedance: 200 ohms
-
Rated Load Impedance: ≥2kOhms
-
S/N Ratio: 82dBA
-
Equivalent Noise: 10dBA (IEC651)
Polar Patterns
Cardioid
Omni Directional
Bi-Directional (Figure-8)
Components
Premium Components - Elite Build Quality - Superior Sound
K47-Style Capsule
The custom K47-style capsule in the WA-47 is a true reproduction of the large, dual-diaphragm K47-style capsule found in the original U47 mic. This capsule captures authentic analog detail across the 20Hz-20kHz frequency response. With just the right peaks where most vocals sit, the capsule inside the WA-47 will quickly make this a favorite mic for vocals and any source where vintage vibe is a must.
AMI USA-MADE Output Transformer
The history of TAB-Funkenwerk (AMI) transformers goes all the way back to the founding of the most sought-after German analog audio innovations. The TAB (AMI) transformer in the WA-47 is American-made and built to exacting standards as designed by Oliver Archut. The sweet sonic character of the WA-47 would not be possible without the amazing, historically-correct transformer supplied by TAB-Funkenwerk.
Premium Tube & Capacitors
The premium 5751 vacuum tube in the WA-47 delivers true analog tone with exceptionally low gain and (11dBA) self-noise. Premium polystyrene, WIMA, and Solen French capacitors are used throughout the WA-47 circuit, providing the excellent signal conversion that this circuit demands.
Hand-Tested, Elite Build Quality
The WA-47 is encased in an ultra-durable nickel-plated brass body with an updated headbasket shape adding additional space around the capsule. Every single WA-47 is meticulously hand-inspected at Warm HQ in Austin,TX by real musicians and engineers with a passion for superior sound.
