Onkyo TX-RZ30 9.2-Channel AV Receiver at Vinyl Sound Toronto Canada

The TX-RZ30 is a 9.2-channel AV receiver from Onkyo (Osaka, Japan), available at Vinyl Sound in Toronto, Canada. Built on the acclaimed RZ Series platform, it delivers an amplifier bandwidth of 5 Hz to 100 kHz through a custom high-current Class AB design, supports full-object-based surround formats including Dolby Atmos, DTS:X, and IMAX Enhanced, and ships with a Dirac Live Room Correction Full Bandwidth licence included. With 9 amplified channels, dual independent subwoofer outputs, HDMI 2.1 with 8K passthrough, and a complete suite of wireless streaming including AirPlay 2, Chromecast built-in, and Roon Tested certification, the TX-RZ30 is engineered to anchor a high-performance home theater and two-channel listening room alike. It is THX Certified for Theater Reference Sound and carries the AVS Forum Top Choice award for 2024.

Ultra-Wide Bandwidth Amplification

The TX-RZ30 is powered by Onkyo's RZ Ultra-wide Bandwidth Amplifier, built around custom low-noise power transformers and large smoothing capacitors that extend the frequency response far beyond the audible range: from 5 Hz at the bottom to 100 kHz at the top. This exceptionally wide window means the amplifier introduces no phase shift or roll-off within the music or film soundtrack band, preserving micro-detail in high-resolution audio and the full dynamic weight of cinematic LFE content. Rated at 170 W per channel (6 ohms, 1 kHz, 1% THD, one channel driven, IEC) across all nine channels, the TX-RZ30 has the headroom to drive demanding speaker loads with authority. The Class AB topology has been optimised for both control and naturalness, avoiding the listening fatigue associated with lower-cost designs while maintaining the efficiency needed for extended home theater sessions.

Dirac Live, IMAX Enhanced, and Immersive Surround Formats

Dirac Live Room Correction Full Bandwidth is included with every TX-RZ30 at no additional cost, calibrating the complete audible frequency range from 20 Hz to 20 kHz for both music and film content. An optional Dirac Live Bass Control upgrade further refines subwoofer output, aligning low-frequency energy with all other channels for a seamlessly integrated bass foundation and improved mid and high frequency clarity. IMAX Enhanced certification brings a proprietary video processing algorithm that optimises colour accuracy, contrast, and detail for a more vibrant and lifelike picture on compatible displays, paired with object-based audio precision in three-dimensional space. Dolby Atmos and DTS:X with Neural:X upmixing create enveloping overhead soundscapes, while Dolby Vision pass-through dynamically adjusts brightness and contrast on a scene-by-scene basis. The six HDMI 2.1 inputs and two outputs (with eARC) support 8K/4K Ultra HD, HDR10+, HDCP 2.3, VRR, QFT, ALLM, and SBTM for full compatibility with the current generation of gaming consoles and source components.

Streaming, Connectivity, and Klipsch Optimised Mode

The TX-RZ30 integrates every major wireless streaming platform: AirPlay 2, Chromecast built-in, Spotify Connect, Amazon Music HD, Tidal Connect, Deezer, and TuneIn are all onboard, alongside Roon Tested certification for networked audiophile playback. Works with Sonos compatibility with volume pass-through allows the TX-RZ30 to join an existing Sonos wireless multiroom network seamlessly. Bidirectional Bluetooth with SBC, AAC, aptX, and aptX HD codecs covers both incoming and outgoing wireless audio. On the analogue side, six RCA inputs and a dedicated phono input accommodate turntable users, while 9.2-channel pre-amplifier outputs with two independent subwoofer outputs provide full flexibility for adding external amplification. Klipsch Optimised Mode encodes precise factory crossover settings for Klipsch Reference Premiere speakers directly in the receiver, enabling plug-and-play integration without manual tuning.

Key Features

• 9.2-Channel Class AB Amplification: 170 W per channel (6 ohms, 1 kHz, 1% THD, 1-ch driven, IEC) across all nine channels with dual independent subwoofer outputs for configurations up to 5.2.4 or 7.2.2.
• Dirac Live Full Bandwidth Included: Factory-bundled licence calibrates the full 20 Hz to 20 kHz range; optional Bass Control upgrade adds subwoofer-to-speaker alignment.
• Ultra-Wide Bandwidth Amplifier: Custom circuitry extends frequency response from 5 Hz to 100 kHz, preserving every nuance in high-resolution audio and cinematic soundtracks.
• HDMI 2.1 with 8K Support: Six HDMI 2.1 inputs and two outputs (eARC) with VRR, QFT, ALLM, SBTM, HDR10+, Dolby Vision, and HDCP 2.3 for full gaming and streaming compatibility.
• Dolby Atmos, DTS:X, and IMAX Enhanced: Full object-based surround processing with Neural:X upmixing and certified IMAX video optimisation for a lifelike home theater experience.
• THX Certified for Theater Reference Sound: Independently verified to meet THX's rigorous standards for output level, distortion, and signal-to-noise across all channels.

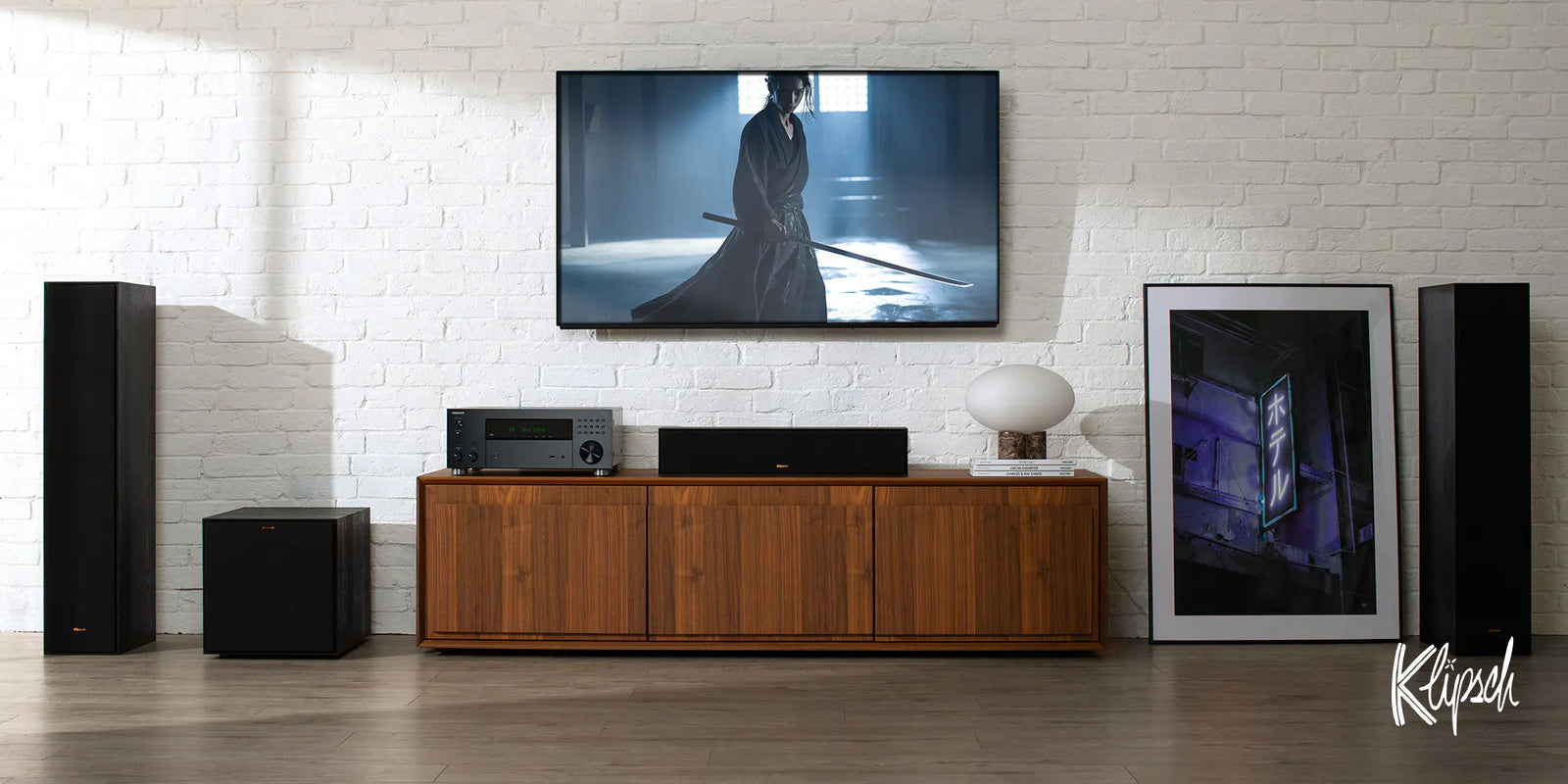

• Klipsch Optimised Mode: Pre-loaded crossover values for Klipsch Reference Premiere speakers allow immediate, accurate system integration without additional calibration.
• Works with Sonos with Volume Pass-Through: Joins an existing Sonos wireless network and passes volume commands through the receiver for unified multiroom control.
• Comprehensive Streaming: AirPlay 2, Chromecast built-in, Roon Tested, Spotify Connect, Amazon Music HD, Tidal Connect, Deezer, and TuneIn built in.
• Phono Input and Zone 2 Output: Dedicated phono RCA input for turntable users; Zone 2 stereo RCA output extends audio to a second room.
• Control System Integration: IP control, RS-232, and IR input support custom installation and home automation environments.

Technical Specifications

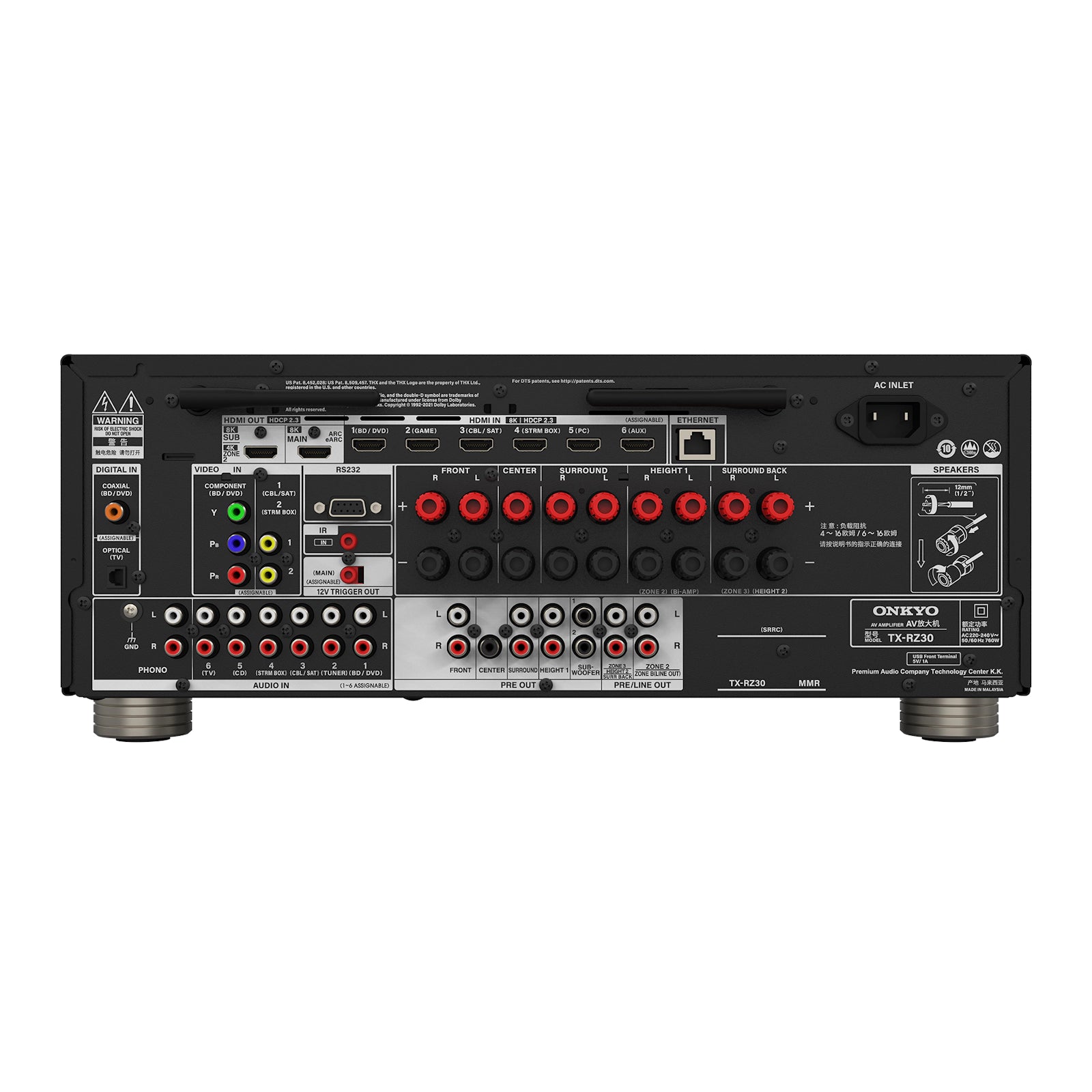

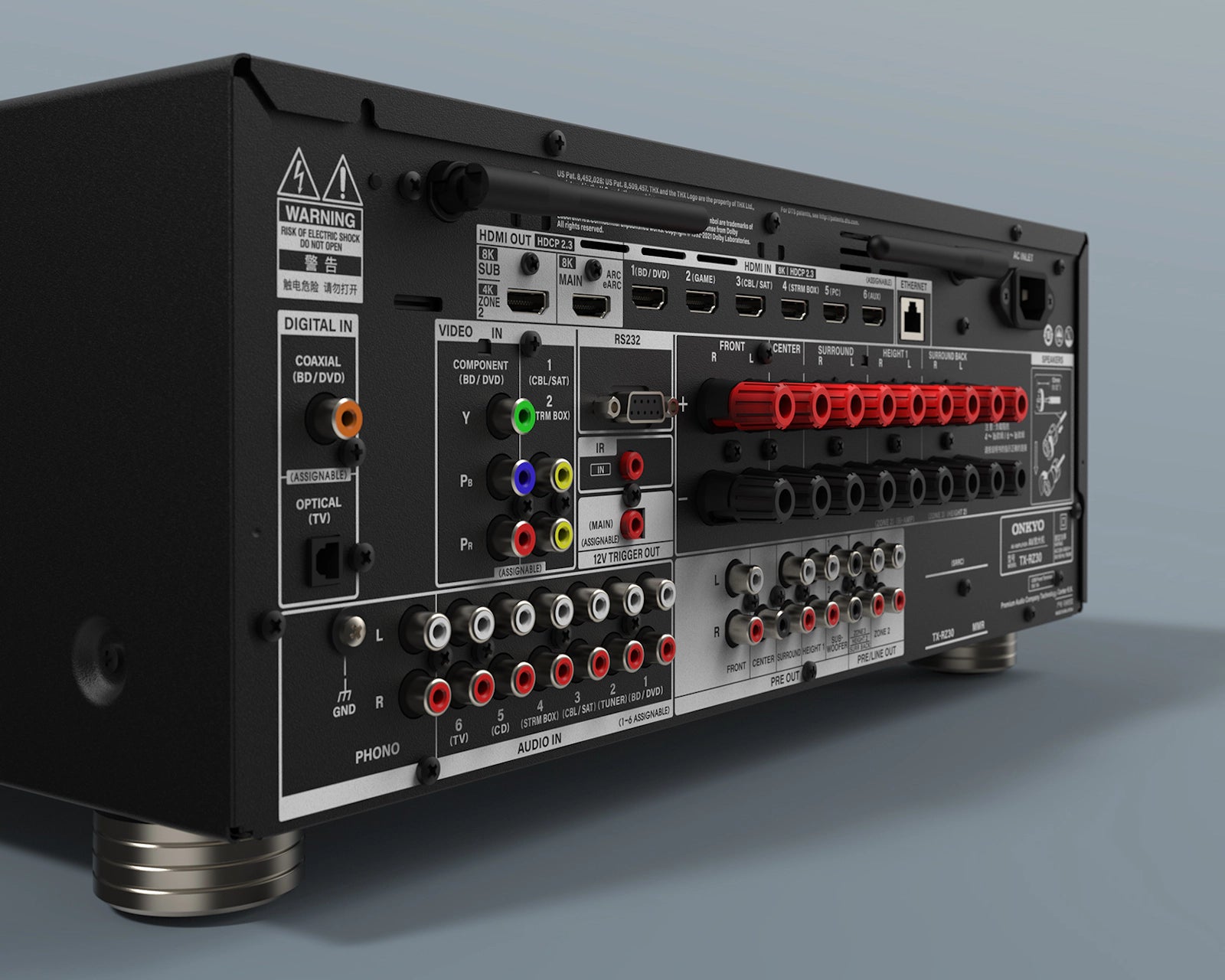

Connections at a Glance

• 6 x HDMI 2.1 inputs / 2 x HDMI 2.1 outputs (1 with eARC)
• 1 x Component video input
• 2 x Composite video inputs
• 6 x RCA analogue inputs
• 1 x RCA Phono input (turntable)
• 1 x Optical digital input
• 1 x Coaxial digital input
• 9.2-channel pre-amplifier outputs (2 independent subwoofer outputs)
• Zone 2 stereo RCA output
• Wi-Fi and Bluetooth (bidirectional, SBC / AAC / aptX / aptX HD)
• IP control, RS-232, and IR input

Awards and Critical Recognition

• AVS Forum Top Choice Award 2024 (AVS Forum)

Frequently Asked Questions

What is the Onkyo TX-RZ30?

The Onkyo TX-RZ30 is a 9.2-channel AV receiver from Onkyo's premium RZ Series, featuring a Class AB amplifier rated at 170 W per channel, an ultra-wide bandwidth of 5 Hz to 100 kHz, Dirac Live Room Correction Full Bandwidth included, Dolby Atmos, DTS:X, IMAX Enhanced processing, and HDMI 2.1 with 8K support. It is THX Certified for Theater Reference Sound and is available at Vinyl Sound in Toronto, Canada.

How does the Onkyo TX-RZ30 compare to the Denon AVR-X4800H or Yamaha RX-A6A?

The TX-RZ30 differentiates itself from the Denon AVR-X4800H and Yamaha RX-A6A primarily through its bundled Dirac Live Full Bandwidth licence, which both Denon and Yamaha charge extra for or omit entirely in favour of their proprietary Audyssey MultEQ XT32 and YPAO RSC systems respectively. The Onkyo's 5 Hz to 100 kHz amplifier bandwidth and THX certification also set it apart from many comparably priced rivals, as does its native IMAX Enhanced certification and Klipsch Optimised Mode, which the Denon and Yamaha equivalents do not offer. For buyers who prioritise room correction accuracy and wide amplifier bandwidth in a nine-channel design, the TX-RZ30 represents a strong value proposition.

Can the Onkyo TX-RZ30 support a 5.2.4 or 7.2.2 Dolby Atmos layout?

Yes, the TX-RZ30 fully supports both 5.2.4 and 7.2.2 Dolby Atmos speaker configurations. With nine amplified channels and two independent subwoofer outputs, the receiver has the channel count and processing capability to drive overhead or height speakers simultaneously with a full surround array and dual subwoofers, creating a three-dimensional sound field that fully realises object-based Atmos content.

What is Dirac Live Full Bandwidth and why does it matter?

Dirac Live Full Bandwidth is an advanced digital room correction system that analyses and corrects the complete audible frequency range from 20 Hz to 20 kHz, rather than only the mid and high frequencies addressed by many competing auto-calibration systems. It uses a microphone measurement process to map room acoustic anomalies and then applies a target curve correction to every speaker in the system, improving imaging, tonal accuracy, and bass definition. On the TX-RZ30, the Full Bandwidth licence is included in the box at no extra cost, which is unusual at this price point and was previously an optional upgrade on the higher-tier TX-RZ50.

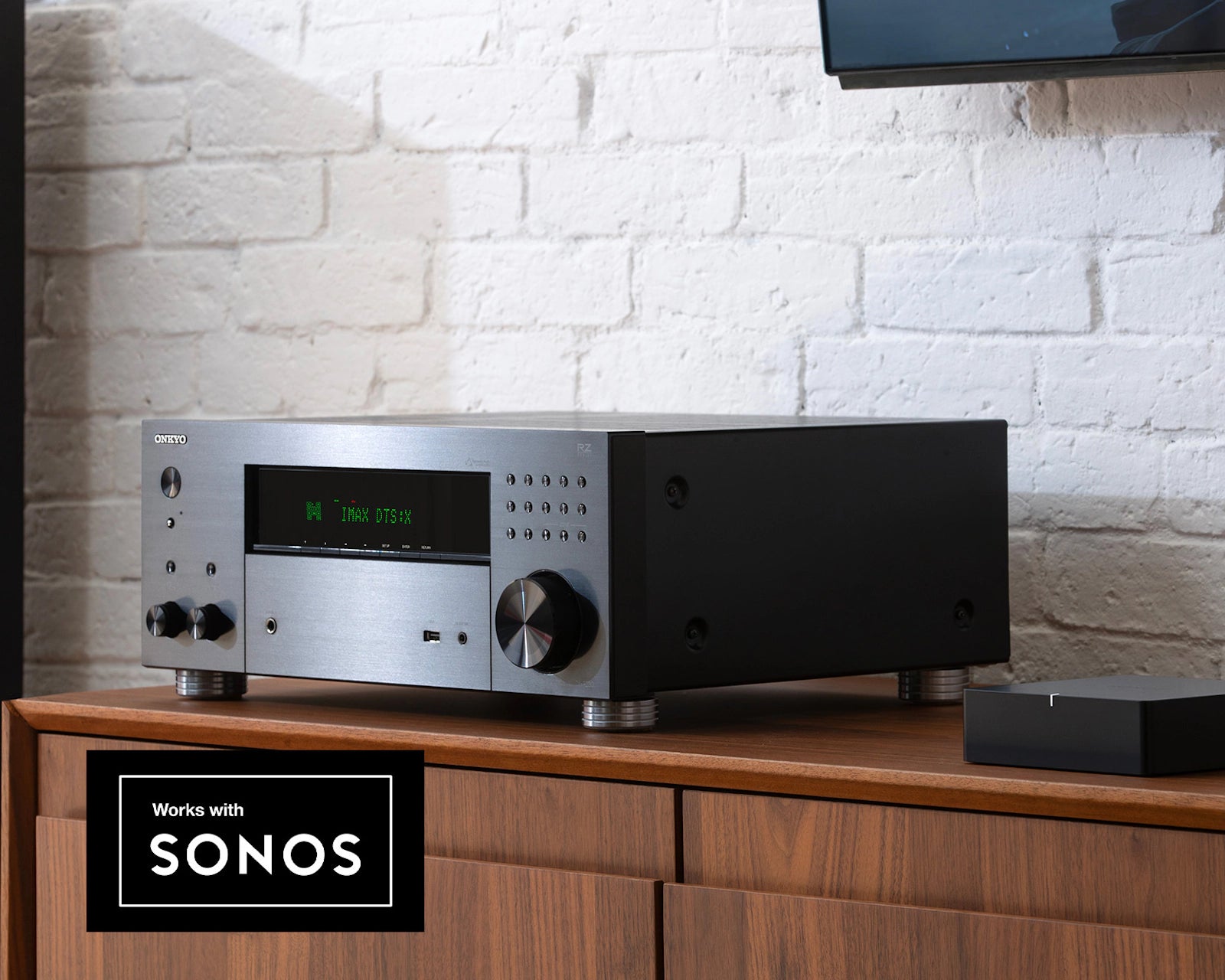

Does the Onkyo TX-RZ30 work with Sonos?

Yes, the TX-RZ30 is Works with Sonos compatible and supports volume pass-through, meaning it can be added to an existing Sonos wireless multiroom network and controlled via the Sonos app alongside other Sonos devices. High-quality audio from Sonos sources is routed through all 9.2 channels of the TX-RZ30, and volume adjustments made in the Sonos app are passed directly to the receiver.

Is the Onkyo TX-RZ30 suitable for gaming with a PS5 or Xbox Series X?

Yes, the TX-RZ30 is fully equipped for next-generation gaming. Its HDMI 2.1 inputs support 4K at 120 Hz and 8K at 60 Hz passthrough, Variable Refresh Rate (VRR), Quick Frame Transport (QFT), Auto Low Latency Mode (ALLM), and Source-Based Tone Mapping (SBTM), covering every feature required by the PlayStation 5 and Xbox Series X for optimal visual performance and minimal input lag.

Where can I buy the Onkyo TX-RZ30 in Toronto or Canada?

The Onkyo TX-RZ30 is available at Vinyl Sound, an authorised Onkyo dealer located in Toronto, Canada. Vinyl Sound carries the complete Onkyo RZ Series AV receiver lineup and offers in-store demonstration, expert configuration advice, and support for Dirac Live calibration and system integration.
