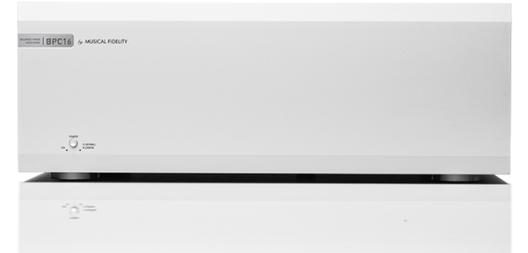

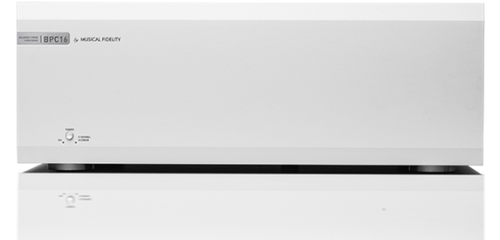

Musical Fidelity BPC16 Power Conditioner

Musical Fidelity BPC16 Power Conditioner

The power supplied to every device in your system contributes to sonic quality just as much as your amplifiers, DACs, and sources. Musical Fidelity's BPC (Balanced Power Conditioner) series is designed to improve on that power. BPC16 is built for big stereo amplifiers, power-hungry mono-blocks, and home theater systems with large multi-channel amplifiers. It offers 8 power outlets split into 3 isolated power zones — two 600VA zones and one 2000VA zone — so you can isolate devices with switch-mode power supplies from devices with linear power supplies for maximum performance. The unique 2000W zone is sized for the biggest power amplifiers, mono-blocks, or multichannel home cinema amplifiers. Musical Fidelity states the result is cleaner power, more dynamics, and a larger soundstage. Sits at the top of the BPC range, above the BPC10. As an authorized Musical Fidelity dealer in Toronto, Canada, Vinyl Sound can help you plan a power conditioning setup for your system.

Key Features

• 8 power outlets across 3 isolated power zones (2x 600VA, 1x 2000VA)
• Dedicated 2000W zone for the biggest power amplifiers, mono-blocks, or multichannel home theater amps
• 16A maximum rated power output, all zones combined
• Super-silent, low-noise balanced toroidal isolating power transformer
• RFI attenuation greater than 57dB @ 235kHz, greater than 40dB up to 1MHz
• Series-mode surge suppression and DC blocker (≥2V), designed to avoid raising ground voltage
• Over-voltage and under-voltage protection
• Overload protection with resettable No-Fuse-Breaker
• Front panel status LEDs (green = normal operation, red = check input voltage)
• Massive aluminium front plate and heavy steel case

Three Isolated Power Zones

BPC16 splits its output into two 600VA zones and one 2000VA zone to avoid differential-mode cross-contamination between connected electronics. Musical Fidelity recommends connecting devices with switch-mode power supplies to one zone and devices with linear power supplies to another, with the dedicated 2000W zone reserved for the biggest power amplifiers, mono-blocks, or multichannel home cinema amplifiers. A power strip can be added to any zone as long as its combined output doesn't exceed that zone's rating.

Toroidal Transformer

BPC16 uses a toroidal transformer, wound from a continuous strip of grain-oriented silicon steel with no air gap, typically reaching around 90% efficiency versus a standard EI transformer. Musical Fidelity states this design radiates roughly one-tenth the magnetic field of an EI transformer and, combined with Common Mode Rejection, helps eliminate noise for cleaner power delivery.

Surge and Overload Protection

BPC16 uses series-mode surge suppression rather than the more common shunt-mode design, which shunts excess voltage to ground and can raise ground voltage enough to contaminate audio and video signals. Musical Fidelity's design absorbs surges more than 2V above peak line voltage without affecting ground. If the unit detects an overload, its No-Fuse-Breaker switches to protection mode and can be manually reset once the overload is resolved; under-voltage and over-voltage protection are also built in, with front-panel LEDs showing current status.

Technical Specifications

Frequently Asked Questions

What equipment should I connect to this?
BPC16 is built for big stereo amplifiers, power-hungry mono-blocks, and home theater systems with large multi-channel amplifiers, using its dedicated 2000W zone plus two 600VA zones for additional sources or amps.

How does this compare to the BPC10?
BPC10 offers a 1550VA main zone with two 200VA zones. BPC16 steps up to a 2000VA main zone with two larger 600VA zones and 8 outlets total, built for the biggest amplifiers and mono-block setups.

Can I connect a power strip to add more outlets?
Yes, as long as the combined output of everything plugged into that zone doesn't exceed the zone's rating (600VA or 2000VA).
