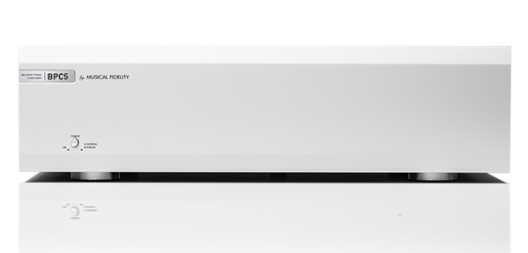

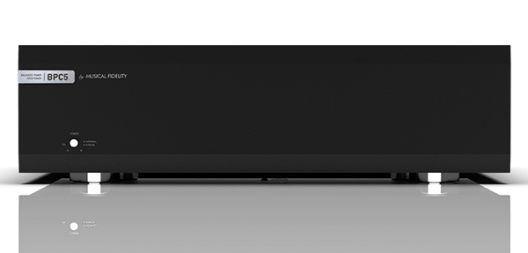

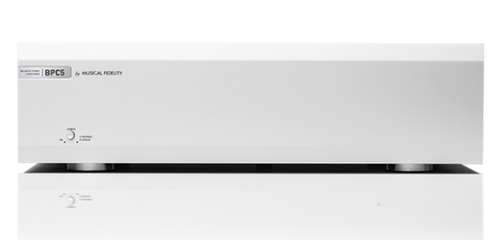

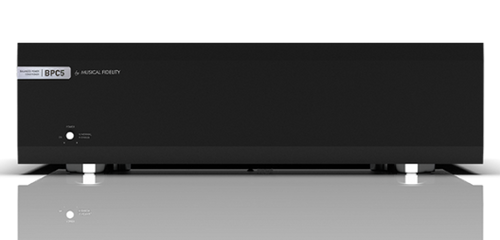

Musical Fidelity BPC5 Power Conditioner

Musical Fidelity BPC5 Power Conditioner

The power supplied to every device in your system contributes to sonic quality just as much as your amplifiers, DACs, and sources. Musical Fidelity's BPC (Balanced Power Conditioner) series is designed to improve on that power. BPC5 is typically used for one amplifier up to 800W alongside digital or analogue source devices, offering 4 power outlets split into 2 isolated power zones — one 200VA zone and one 800VA zone — so you can isolate devices with switch-mode power supplies from devices with linear power supplies for maximum performance. Separating modern digital sources from analogue sources like phono preamps or turntables reduces interference between them. Musical Fidelity states the result is cleaner power, more dynamics, and a larger soundstage. Sits above the BPC3 in the range, with room for a full power amplifier. As an authorized Musical Fidelity dealer in Toronto, Canada, Vinyl Sound can help you plan a power conditioning setup for your system.

Key Features

• 4 power outlets across 2 isolated power zones (1x 200VA, 1x 800VA)
• Powers one amplifier up to 800W alongside source components
• Super-silent, low-noise balanced toroidal isolating power transformer
• RFI attenuation greater than 57dB @ 235kHz, greater than 40dB up to 1MHz
• Series-mode surge suppression and DC blocker (≥2V), designed to avoid raising ground voltage
• Over-voltage and under-voltage protection
• Overload protection with resettable No-Fuse-Breaker
• Front panel status LEDs (green = normal operation, red = check input voltage)
• Massive aluminium front plate and heavy steel case

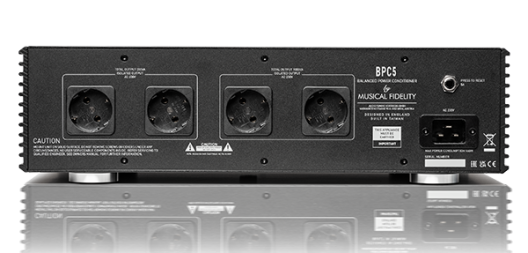

Two Isolated Power Zones

BPC5 splits its output into a 200VA zone and an 800VA zone to avoid differential-mode cross-contamination between connected electronics. Musical Fidelity recommends connecting devices with switch-mode power supplies to one zone and devices with linear power supplies to the other, and the larger 800VA zone is sized to power a full amplifier up to 800W. A power strip can be added to either zone as long as its combined output doesn't exceed that zone's rating.

Toroidal Transformer

BPC5 uses a toroidal transformer, wound from a continuous strip of grain-oriented silicon steel with no air gap, typically reaching around 90% efficiency versus a standard EI transformer. Musical Fidelity states this design radiates roughly one-tenth the magnetic field of an EI transformer and, combined with Common Mode Rejection, helps eliminate noise for cleaner power delivery.

Surge and Overload Protection

BPC5 uses series-mode surge suppression rather than the more common shunt-mode design, which shunts excess voltage to ground and can raise ground voltage enough to contaminate audio and video signals. Musical Fidelity's design absorbs surges more than 2V above peak line voltage without affecting ground. If the unit detects an overload, its No-Fuse-Breaker switches to protection mode and can be manually reset once the overload is resolved; under-voltage and over-voltage protection are also built in, with front-panel LEDs showing current status.

Technical Specifications

Frequently Asked Questions

What equipment should I connect to this?
BPC5 can power one amplifier up to 800W of max power consumption in its larger zone, plus source components like a phono preamp, preamplifier, or CD player in the smaller 200VA zone.

How does this compare to the BPC3?
BPC3 offers two equal 300VA zones sized for source components and very low-powered amps. BPC5 steps up to a 200VA zone plus a dedicated 800VA zone, large enough to power a full power amplifier.

Can I connect a power strip to add more outlets?
Yes, as long as the combined output of everything plugged into that zone doesn't exceed the zone's rating (200VA or 800VA).
