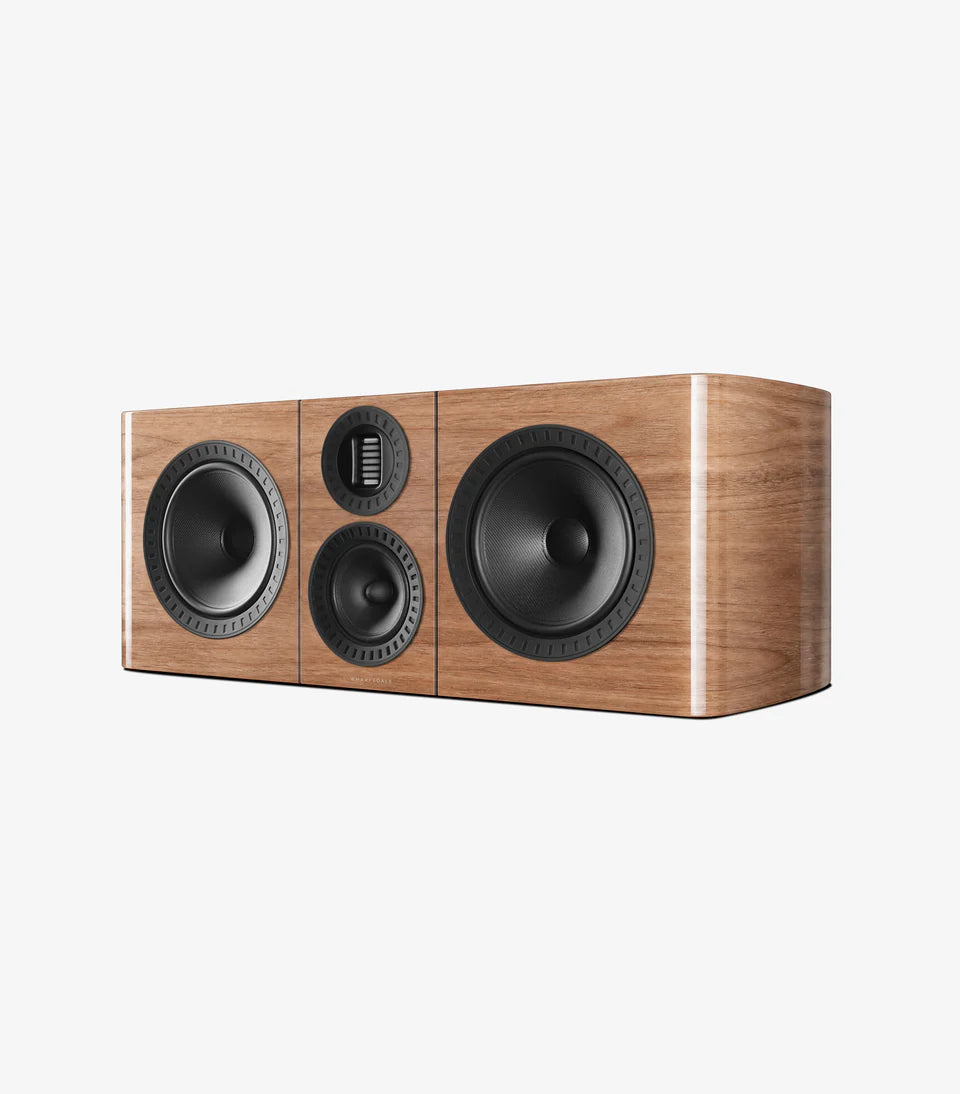

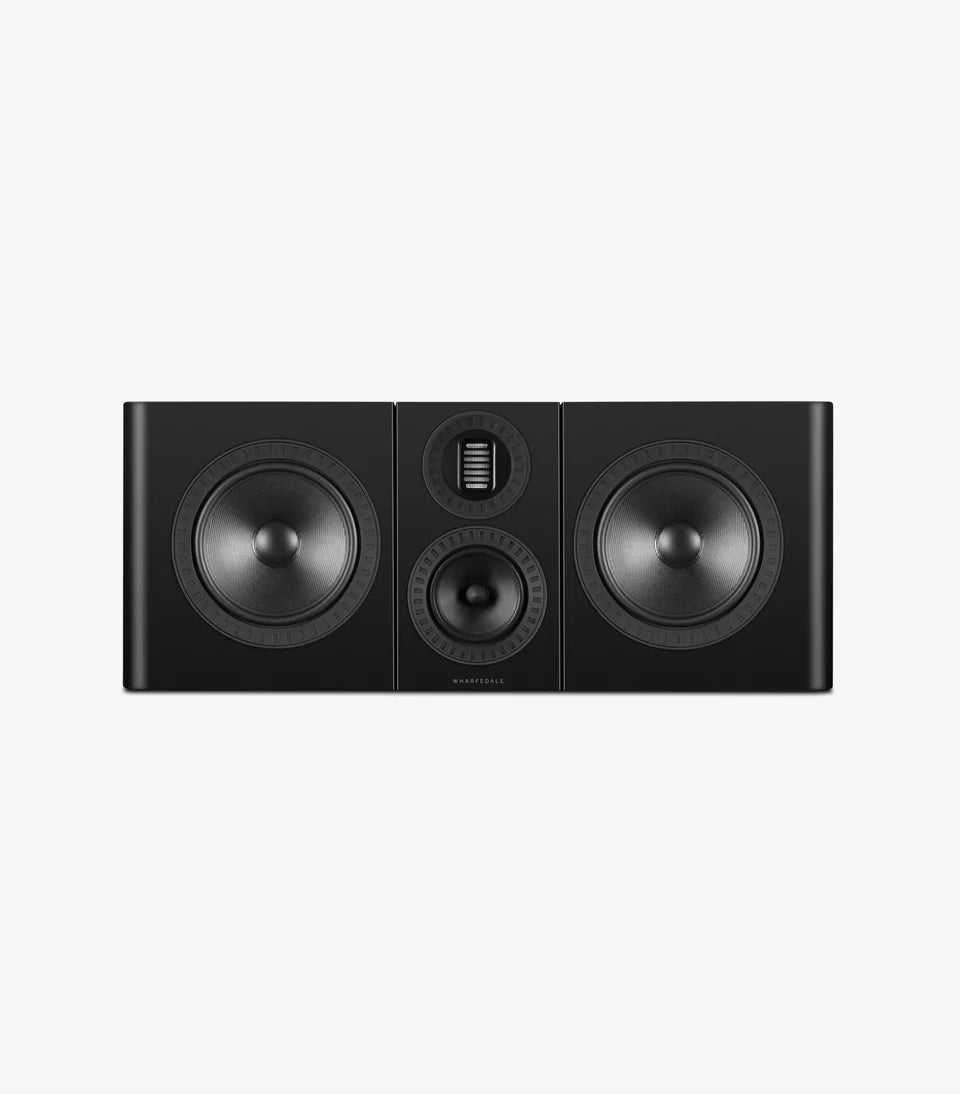

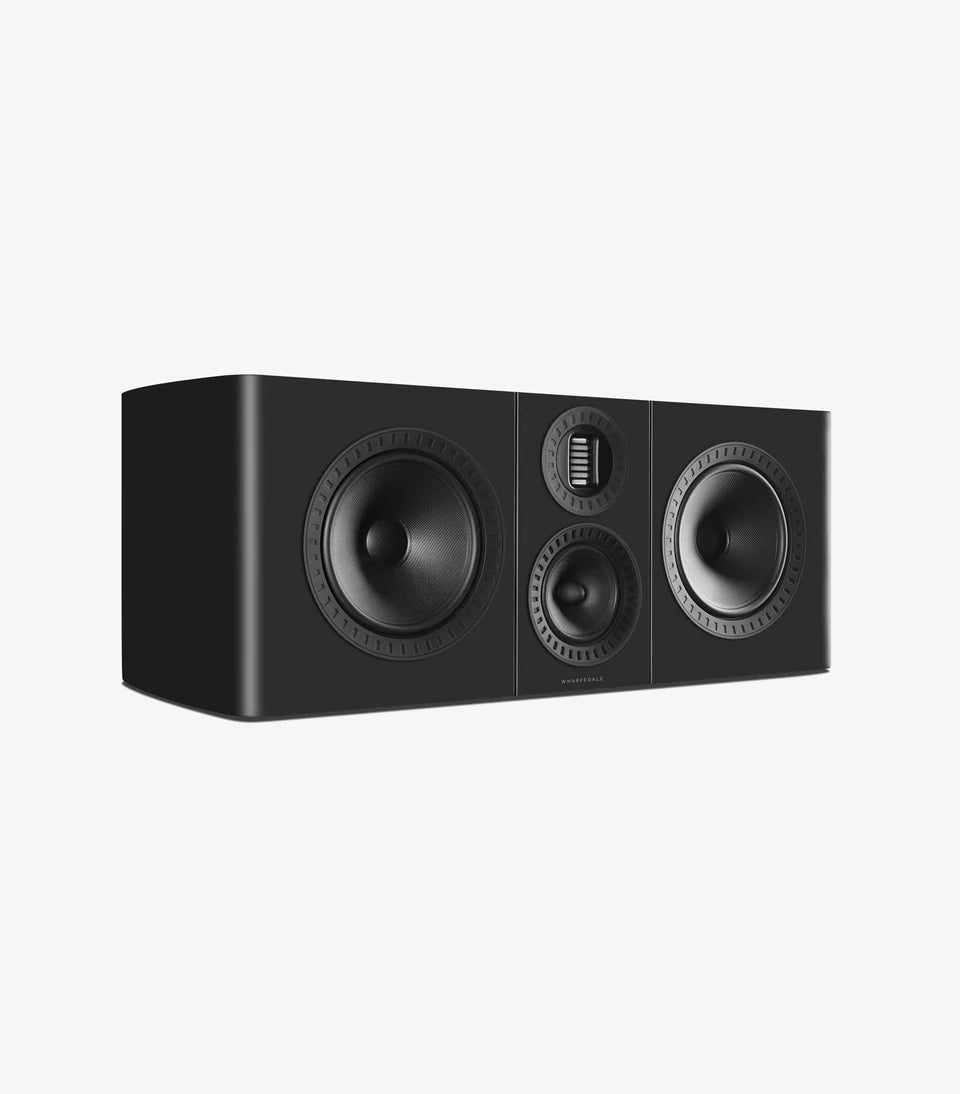

Wharfedale ELYSIAN CR Three-Way Centre Speaker at Vinyl Sound Toronto Canada

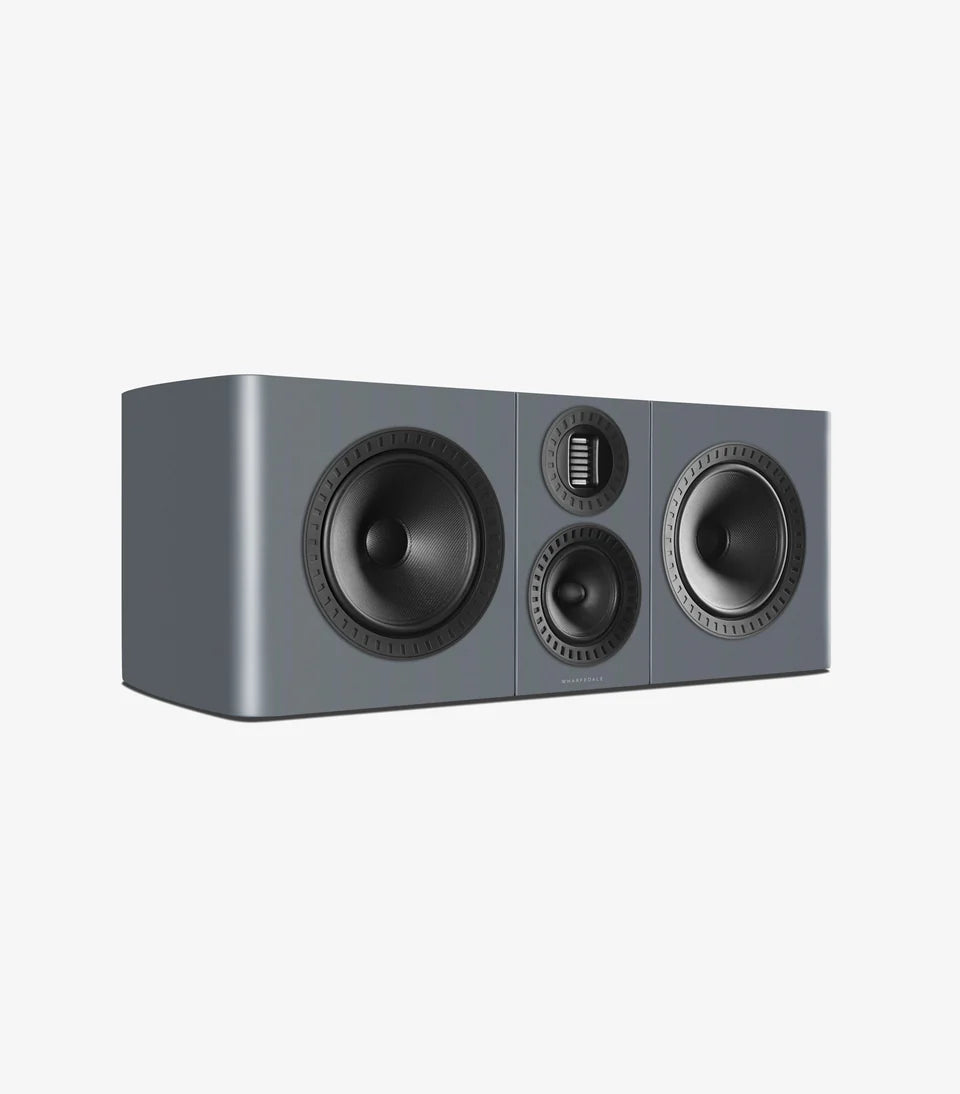

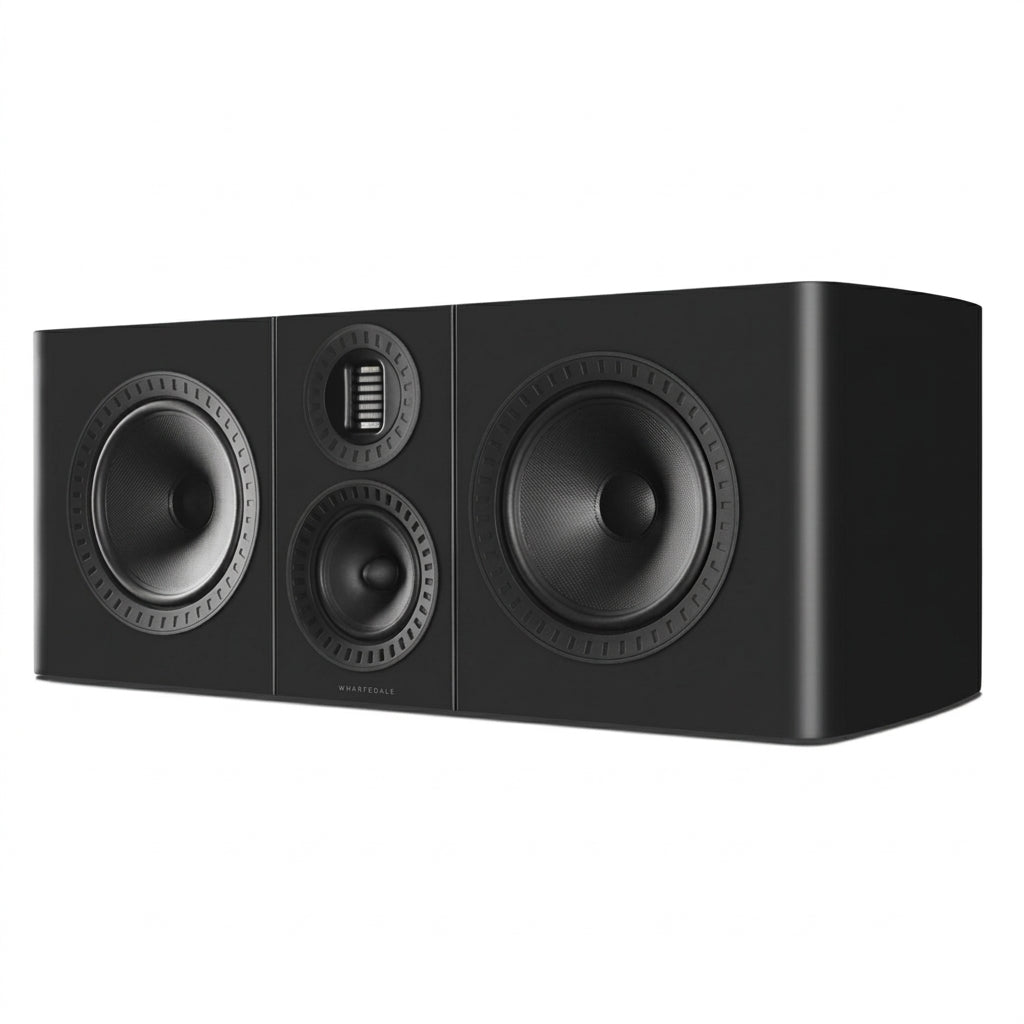

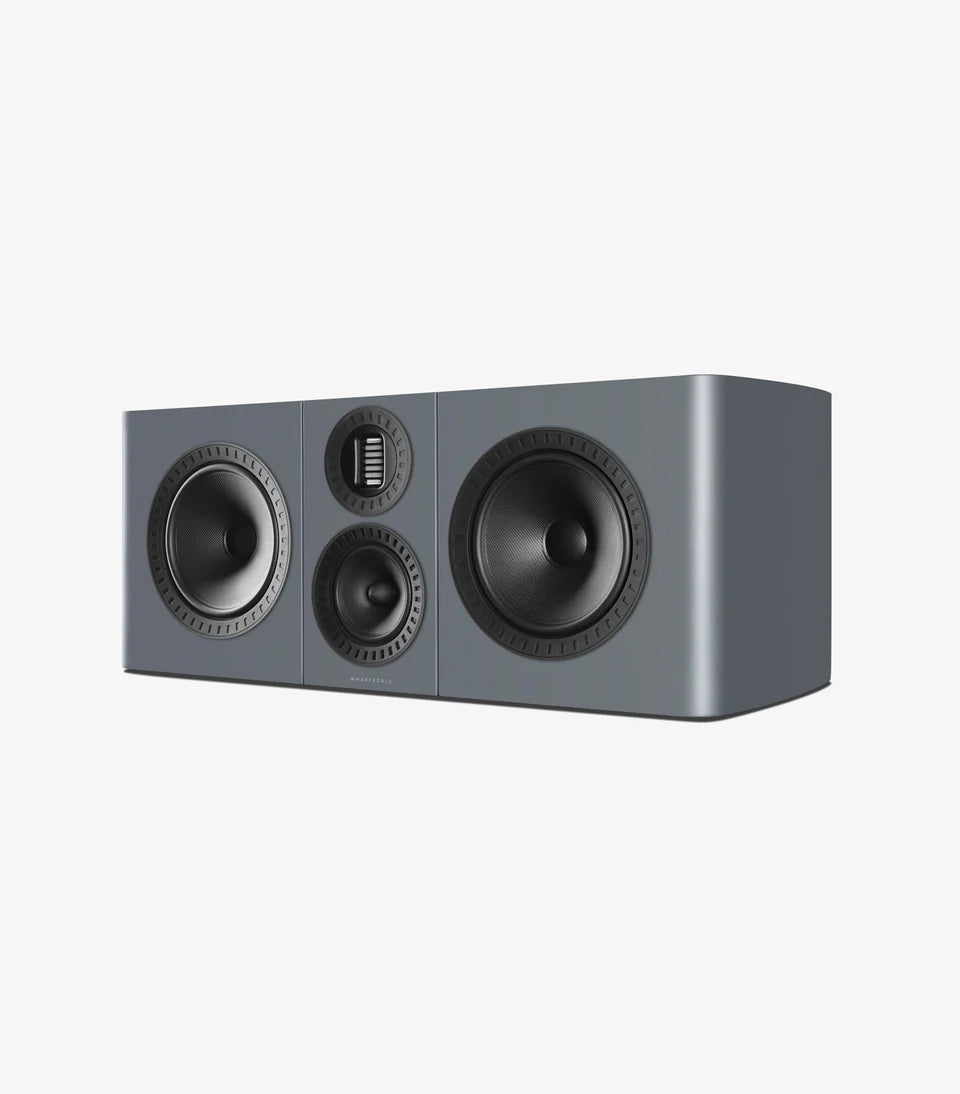

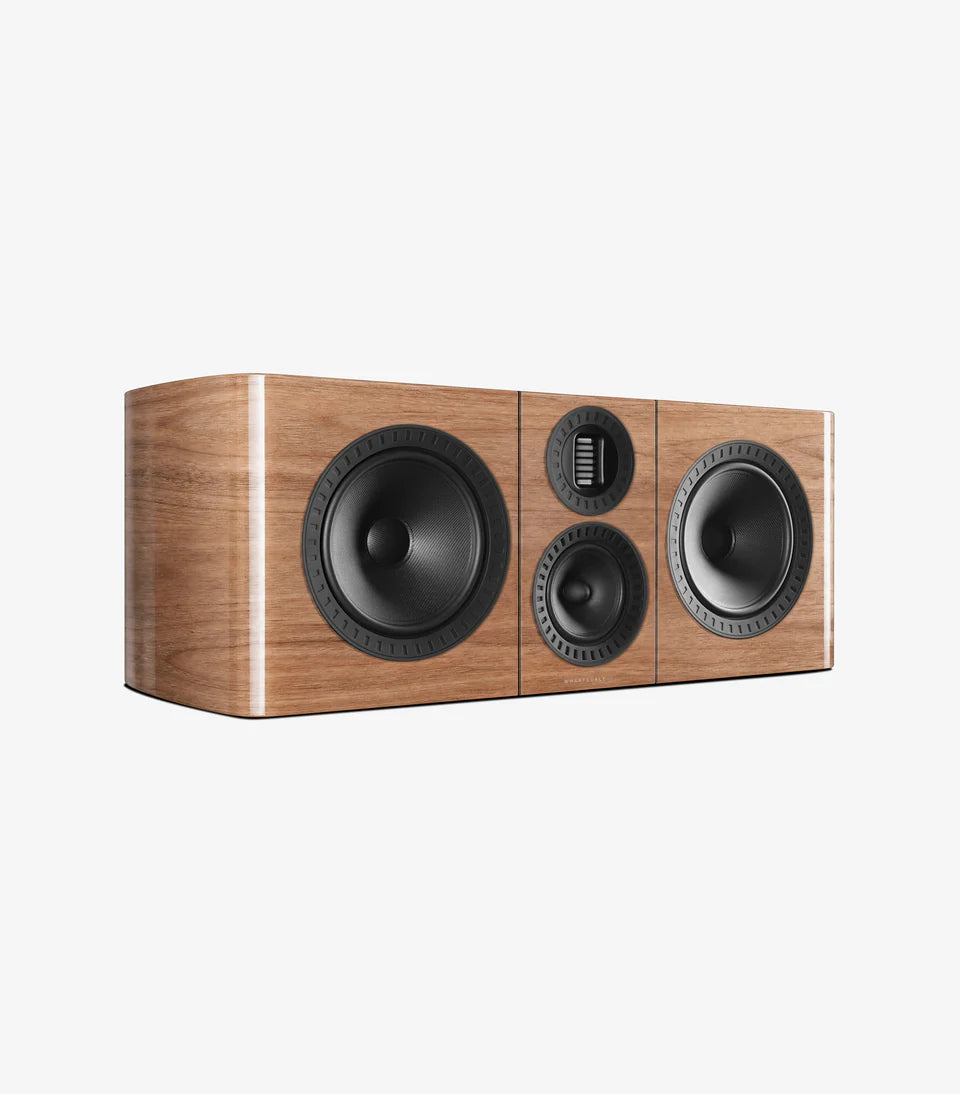

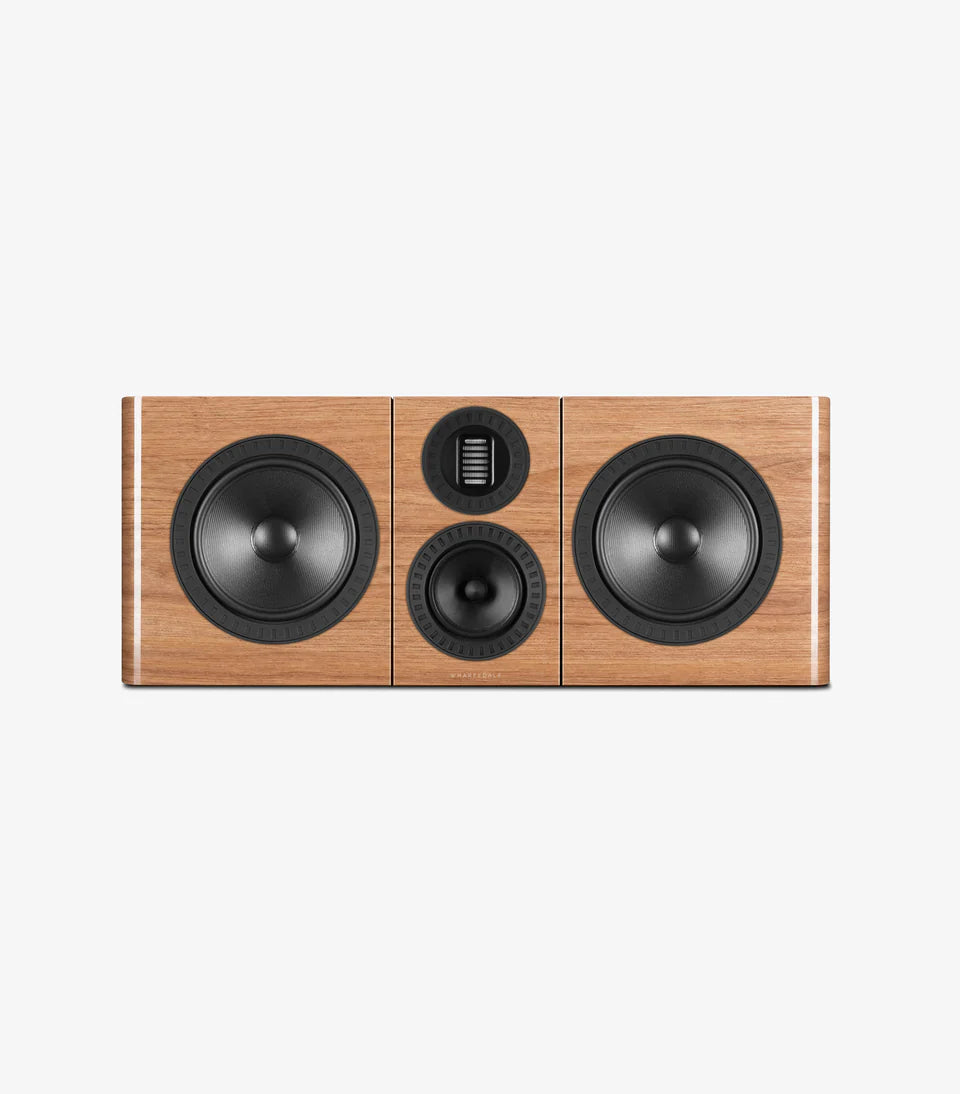

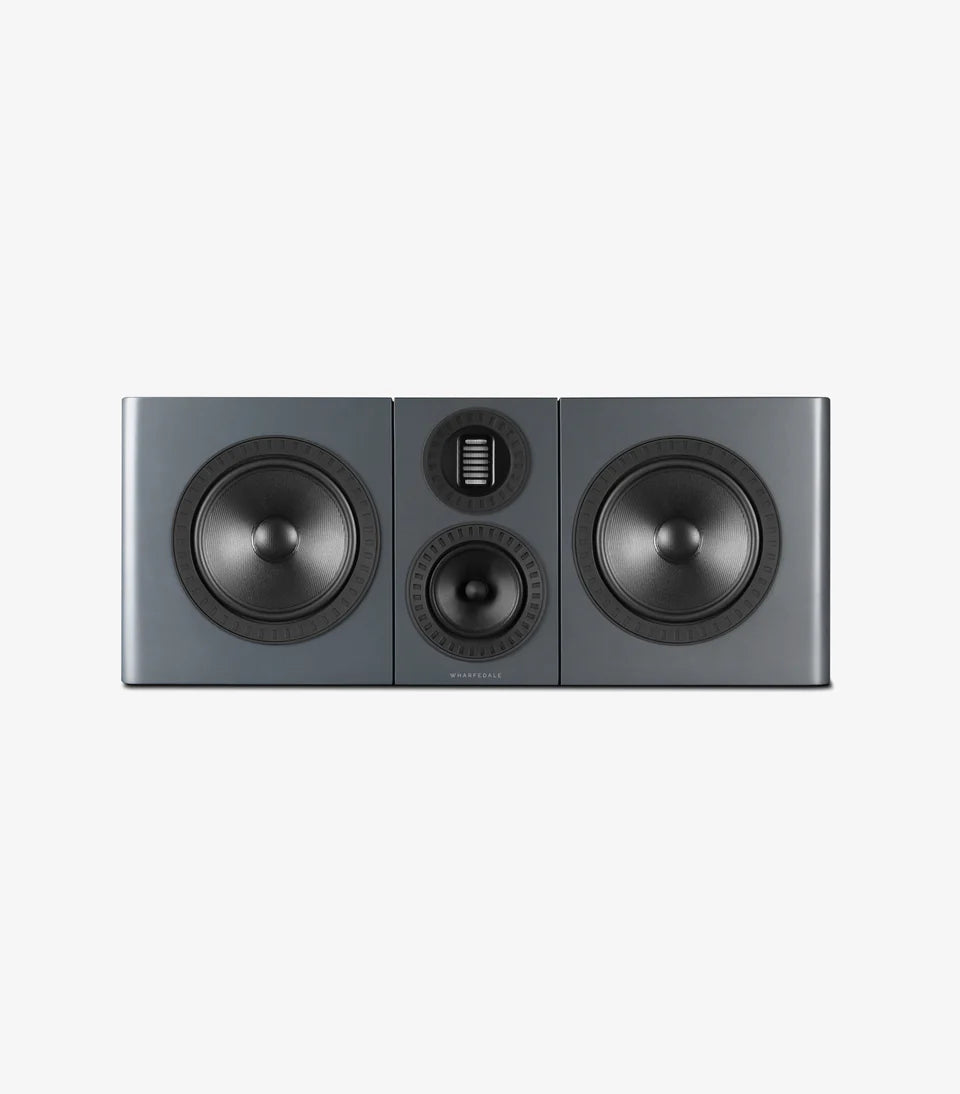

The Wharfedale ELYSIAN CR is the dedicated centre-channel loudspeaker for the ELYSIAN R Series flagship system from Wharfedale (Huntingdon, UK), available at Vinyl Sound in Toronto, Canada. A true three-way centre speaker engineered to match the tonal balance, refinement, and dynamic character of the full ELYSIAN R range, the ELYSIAN CR combines dual 8.5" coated glass fibre matrix bass drivers in a 69.7-litre combined cabinet, a dedicated 6" coated glass fibre matrix midrange driver, and a 27 x 45mm AMT high-frequency unit in a horizontal centre-channel format with SLPP bass management and Generation R crossover at 360Hz and 2.9kHz. With 91dB sensitivity, 35Hz to 22kHz frequency response and bass extension to 27Hz at -6dB, and 110dB peak SPL, the ELYSIAN CR delivers dialogue clarity, soundstage anchoring, and the full dynamic authority of the ELYSIAN R system in an 830mm-wide horizontal cabinet.

True Three-Way Centre Architecture and Dialogue Performance

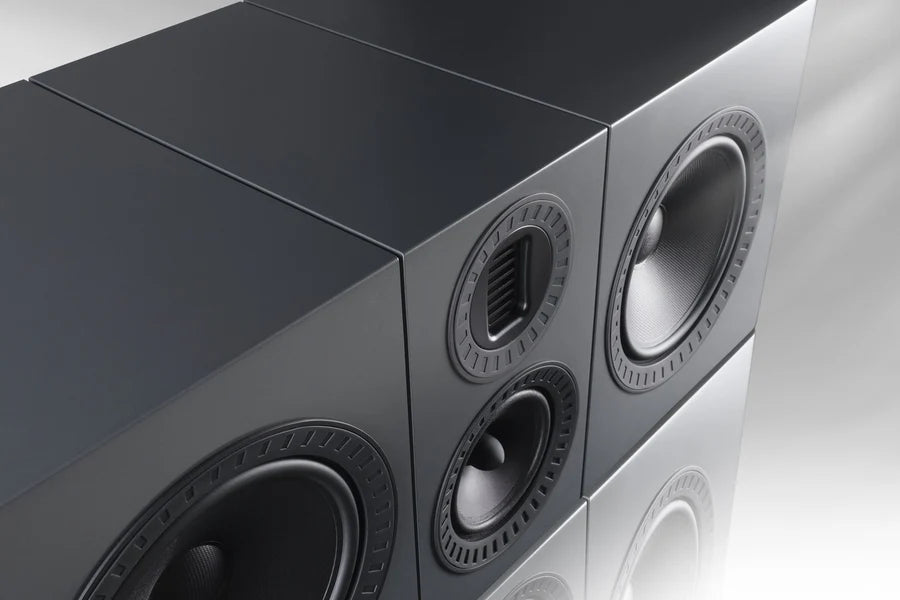

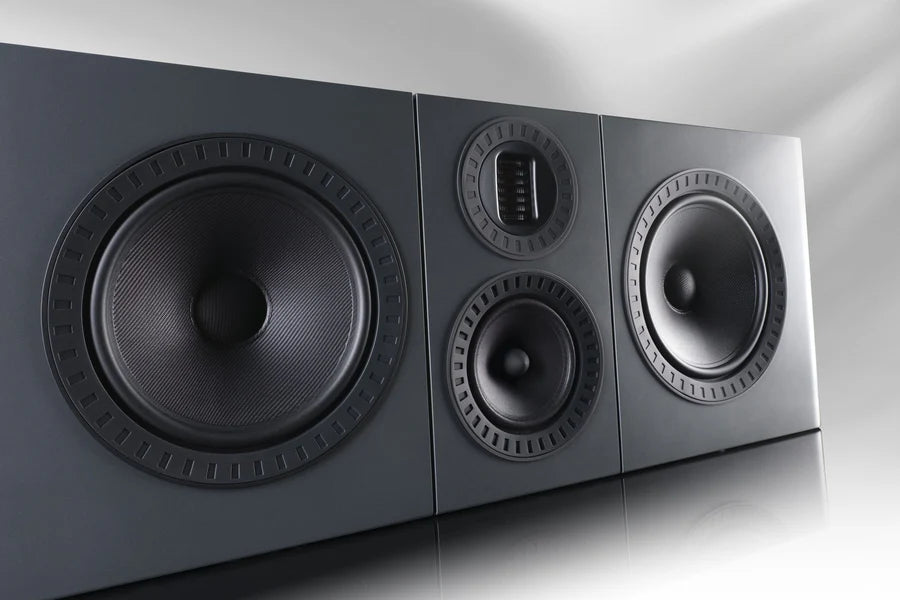

The critical distinction between the ELYSIAN CR and conventional centre speakers is its true three-way driver architecture, which assigns dedicated drivers to each frequency band rather than relying on a single bass/mid driver to cover both bass and midrange simultaneously. In a two-way centre speaker, the bass/mid driver's excursion demands for film soundtrack bass content directly conflict with the minimal excursion requirements for natural, undistorted vocal reproduction — the most critical function a centre speaker performs. The ELYSIAN CR's dedicated 6" coated glass fibre matrix midrange driver covers 360Hz to 2.9kHz independently of the dual bass drivers, operating with the minimal excursion that speech and vocal reproduction require for natural intelligibility and presence. The 27 x 45mm AMT high-frequency unit — a horizontal-format adaptation of the 27 x 90mm AMT used in the ELYSIAN floorstanding and standmount models — maintains the wide horizontal dispersion critical for a centre channel, ensuring that listeners seated across a wide seating arrangement experience consistent timbre and dialogue intelligibility.

Dual 8.5" Bass Drivers, SLPP Port, and System Tonal Matching

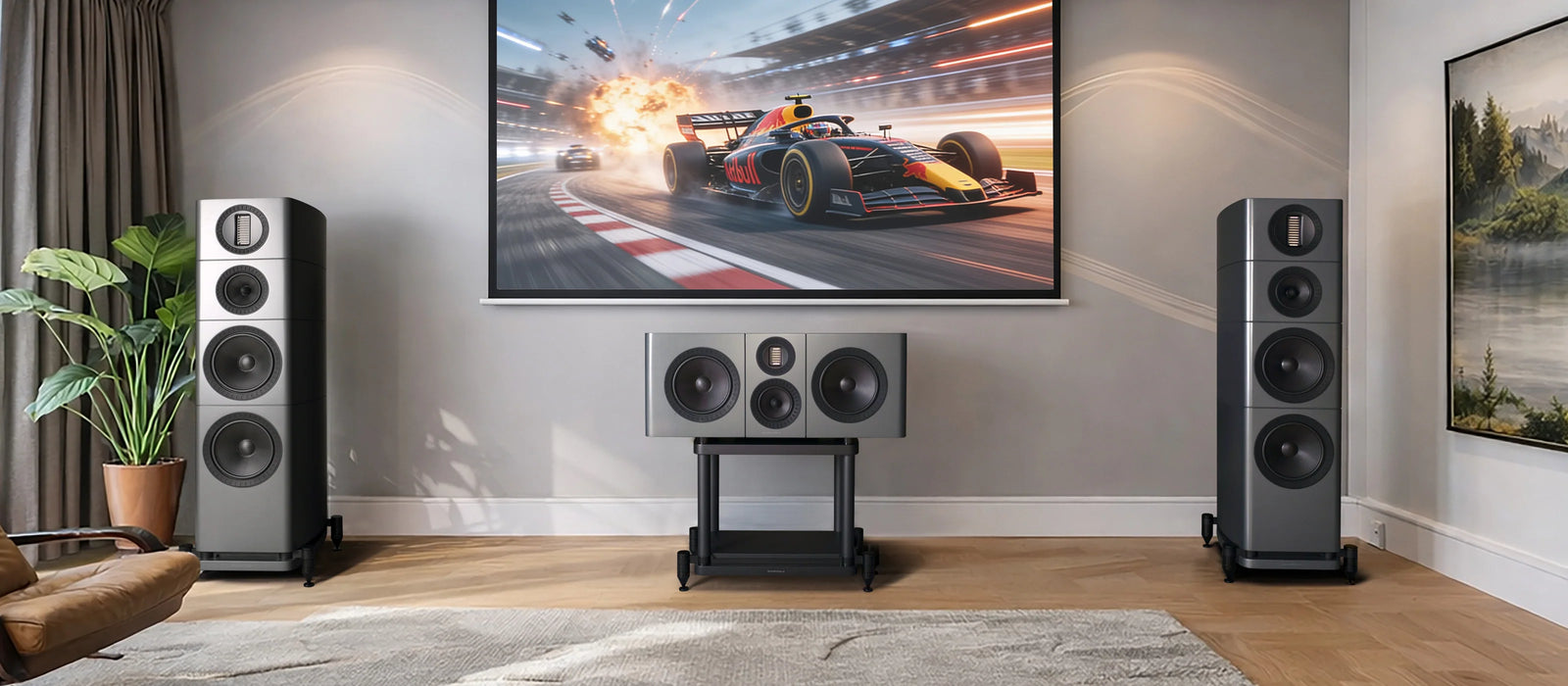

The ELYSIAN CR's dual 8.5" coated glass fibre matrix bass drivers in a 69.7-litre combined cabinet — the same bass driver format as the ELYSIAN 4R flagship floorstander — provide the bass weight, depth, and dynamic scale that film soundtracks and multichannel music demand from a centre channel at a level conventional centre speakers cannot approach. The SLPP Slot-Loaded Profiled Port delivers 27Hz bass extension at -6dB, handling the deepest bass content in film sound effects and music without port noise or placement sensitivity. The Generation R crossover uses high-silicon-iron-cored coils for bass, air-core coils for midrange and treble, Super Audiophile polypropylene capacitors, and low-inductance resistors on direct-path PCBs, matching the crossover specification of the ELYSIAN R floorstanding models for consistent tonal character across the front soundstage. For ELYSIAN R home theatre systems at Vinyl Sound Toronto pairing the CR with ELYSIAN 1R surround speakers and ELYSIAN 3R or 4R front channels, the shared three-way architecture, AMT tweeter technology, and Generation R crossover topology ensure seamless tonal matching across all five channels.

Key Features

• True Three-Way Centre-Channel Design: Dedicated bass, midrange, and AMT treble sections with crossover at 360Hz and 2.9kHz for dialogue clarity, dynamic authority, and flagship tonal refinement.
• Dual 8.5" Coated Glass Fibre Matrix Bass Drivers: Same bass driver format as the ELYSIAN 4R flagship floorstander, providing the weight, depth, and dynamic scale for film soundtracks and multichannel music in a horizontal centre-channel cabinet.
• Dedicated 6" Coated Glass Fibre Matrix Midrange Driver: Independent midrange covering 360Hz to 2.9kHz for natural dialogue clarity, vocal body, and precise speech intelligibility isolated from bass driver excursion demands.
• 27 x 45mm AMT High-Frequency Unit: Horizontal-format AMT adapted for wide dispersion in the centre-channel application, delivering speed, openness, and low-distortion high-frequency performance above 2.9kHz.
• Generation R Crossover with Direct-Path PCBs: High-silicon-iron-cored bass coils, air-core midrange and treble coils, Super Audiophile polypropylene capacitors, and low-inductance resistors for tonal consistency with ELYSIAN R front and surround channels.

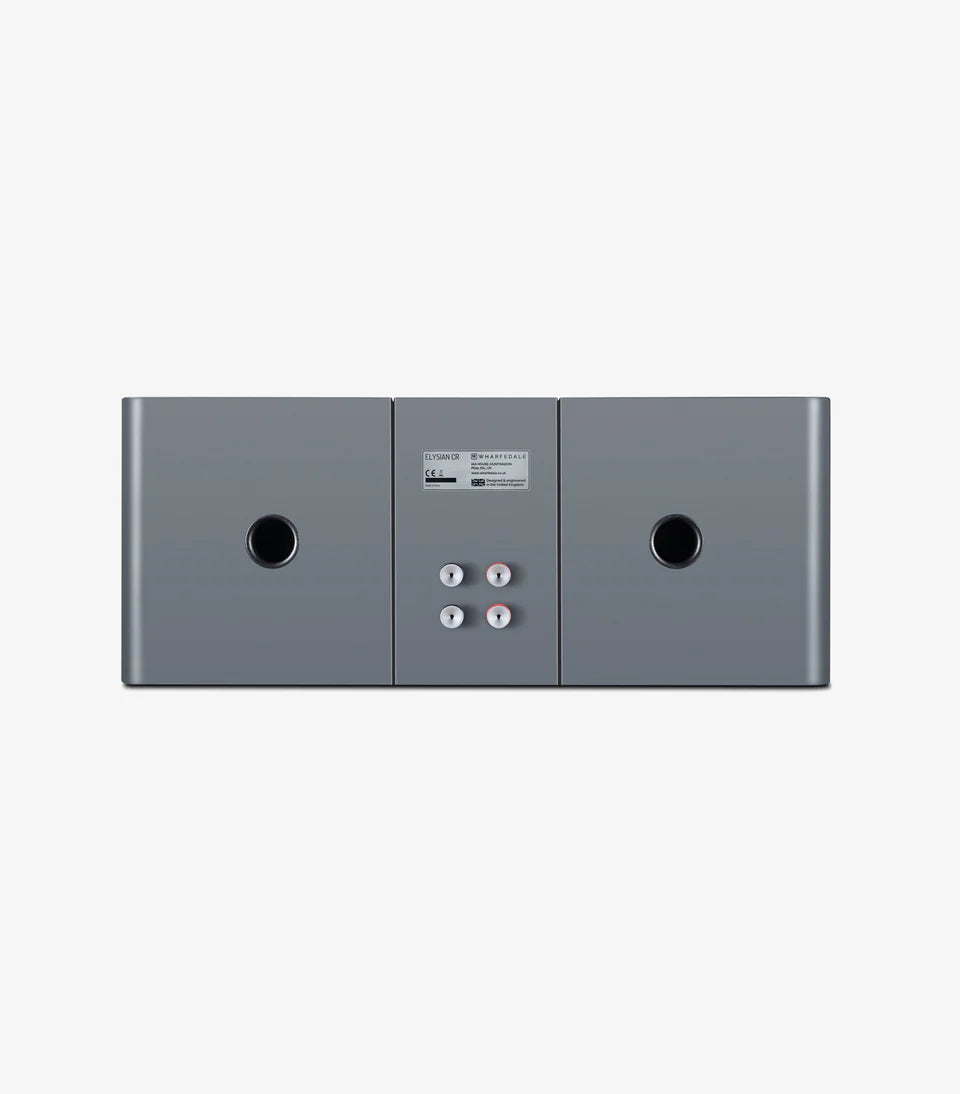

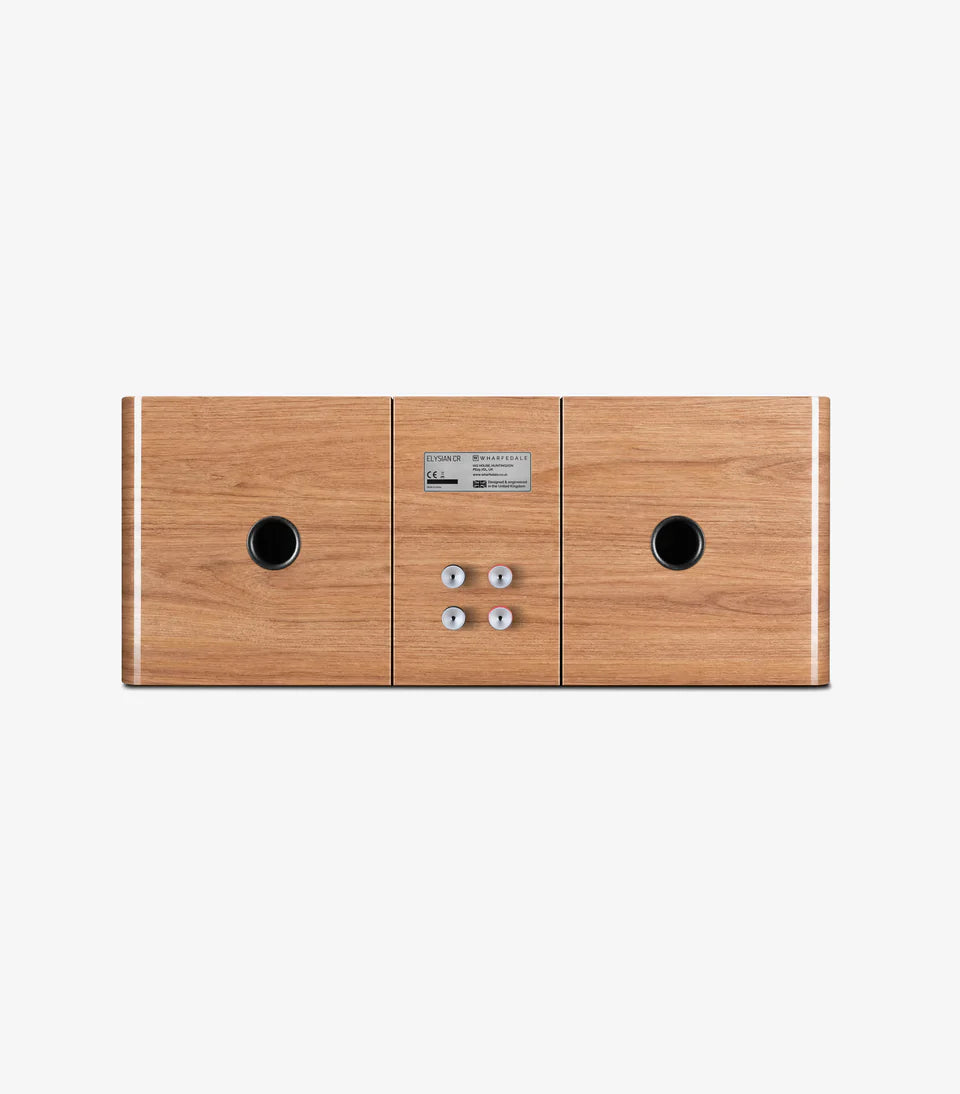

• SLPP Bass Management: Slot-Loaded Profiled Port for 27Hz bass extension, turbulence reduction, and improved room placement flexibility.
• 91dB Sensitivity / 6Ω Nominal Impedance: 25 to 250W recommended amplifier power; standard 6 ohm nominal impedance compatible with all AV receivers and processors.
• 110dB Peak SPL: Maximum dynamic headroom for demanding film soundtrack and multichannel music listening levels.

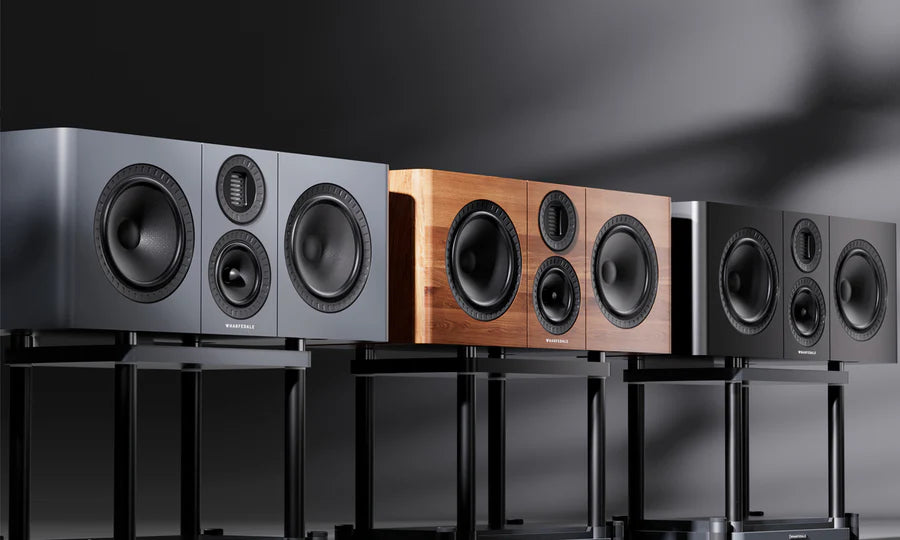

• Matching Stands Available: High-carbon-steel tube construction with top plates and hardened base spikes, sold separately at Vinyl Sound Toronto.
• 3-Year Warranty: Wharfedale 3-year manufacturer warranty.

Technical Specifications

Frequently Asked Questions

What is the Wharfedale ELYSIAN CR?

The Wharfedale ELYSIAN CR is the dedicated three-way centre-channel loudspeaker for the ELYSIAN R Series from Wharfedale, Huntingdon, UK. It uses dual 8.5" coated glass fibre matrix bass drivers, a dedicated 6" midrange driver, and a 27 x 45mm AMT tweeter with Generation R crossover at 360Hz and 2.9kHz, delivering 35Hz to 22kHz frequency response with 27Hz bass extension, 91dB sensitivity, and 110dB peak SPL in an 830mm-wide horizontal cabinet weighing 30.2kg.

What ELYSIAN R models does the CR pair with?

The ELYSIAN CR is designed to match the tonal balance, driver technology, and crossover topology of all ELYSIAN R models — the ELYSIAN 1R and 2R standmounts and the ELYSIAN 3R and 4R floorstanders. The shared AMT tweeter technology, coated glass fibre matrix driver cones, Generation R crossover component selection, and SLPP bass management across the full range ensure consistent tonal character between the CR centre channel and any ELYSIAN R front and surround combination. The ELYSIAN 1R is Wharfedale's recommended surround speaker for a complete ELYSIAN R home theatre system.

Why does a centre speaker need a three-way design?

A conventional two-way centre speaker assigns a single bass/mid driver to reproduce both the bass content of film soundtracks and the vocal midrange frequencies where dialogue intelligibility is most critical — demands that are mechanically incompatible. Bass reproduction requires large cone excursion while natural vocal reproduction requires minimal excursion for low distortion. The ELYSIAN CR's dedicated 6" midrange driver covers only the 360Hz to 2.9kHz vocal band, operating with minimal excursion regardless of what the dual 8.5" bass drivers are doing below 360Hz, which is particularly important for film soundtracks where explosive bass effects and simultaneous dialogue occur continuously.

Is the ELYSIAN CR AMT tweeter different from the ELYSIAN 4R's AMT?

Yes. The ELYSIAN CR uses a 27 x 45mm AMT unit compared to the 27 x 90mm AMT in the ELYSIAN 1R, 2R, 3R, and 4R models. The narrower 45mm horizontal dimension reflects the centre-channel format requirement for wide horizontal dispersion from a horizontally oriented cabinet, ensuring that listeners seated across a wide seating arrangement receive consistent high-frequency response and timbre. The operating principle, diaphragm material, and acoustic damping approach are consistent across all ELYSIAN R AMT units for system-wide tonal matching.

Can the ELYSIAN CR be used without a subwoofer?

Yes. The ELYSIAN CR's 27Hz bass extension at -6dB means it can reproduce the full bass content of film soundtracks and music without a subwoofer in many room and listening level combinations. For reference home theatre performance at high listening levels, particularly with LFE content in film soundtracks extending to 20Hz, a high-performance subwoofer combined with the ELYSIAN CR in large channel mode in the AV processor provides the deepest and most dynamic bass reproduction. Vinyl Sound's audio specialists in Richmond Hill, Ontario can advise on subwoofer options to complement the ELYSIAN R system.

Where can I buy the Wharfedale ELYSIAN CR in Toronto or Canada?

The Wharfedale ELYSIAN CR Three-Way Centre Speaker is available at Vinyl Sound in Toronto, Canada, located at 100 West Beaver Creek Road, Unit 3A, Richmond Hill, Ontario. Vinyl Sound is an authorised Wharfedale dealer carrying the complete ELYSIAN R Series including all five models. Visit vinylsound.ca or contact our Richmond Hill showroom to arrange an in-store demonstration and system configuration consultation for the ELYSIAN R home theatre system.
